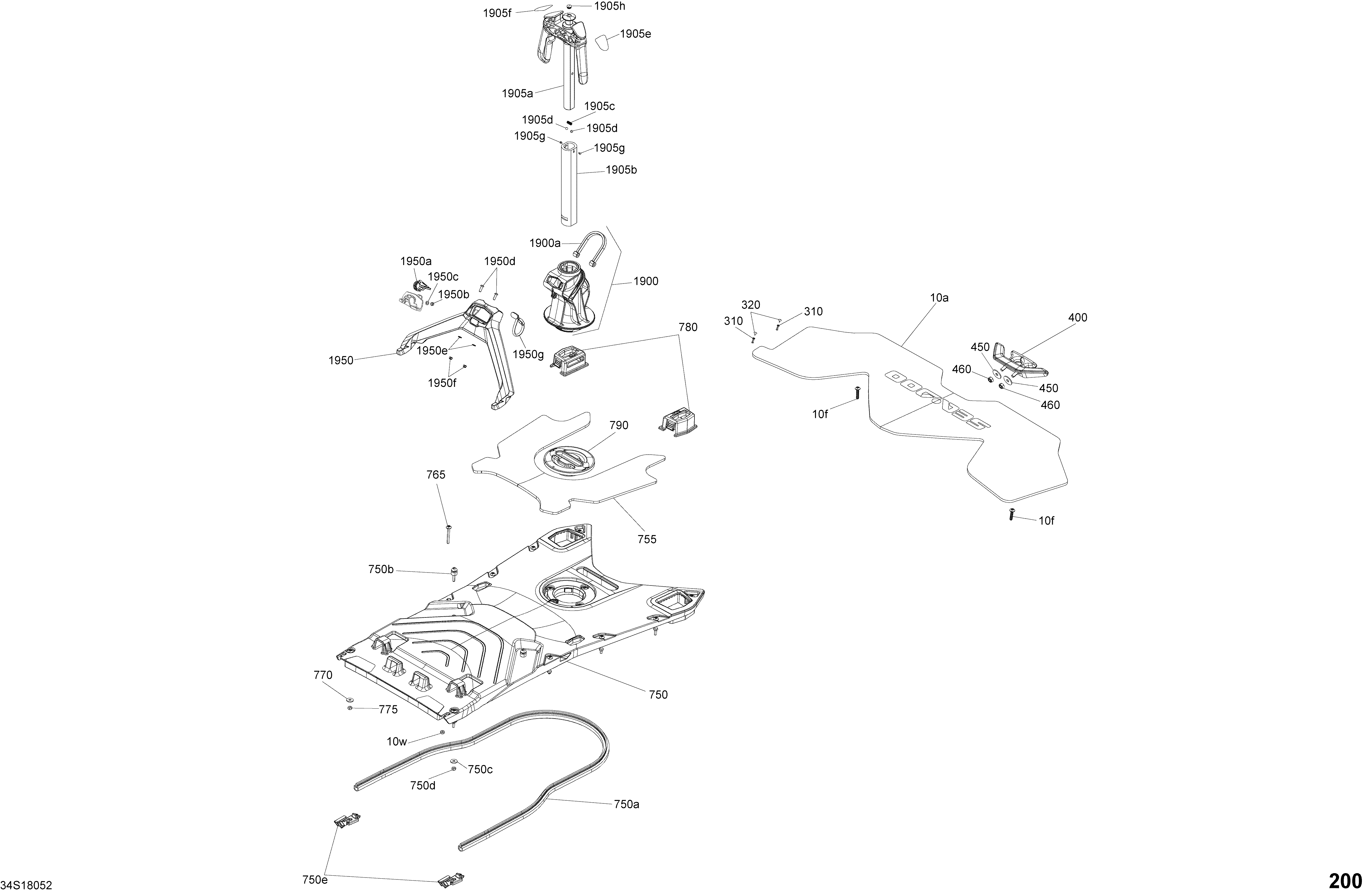

09- Body Rear Part - Wake Package Pro для BRP 2- WAKE PRO 230 - 2018
-
№АртикулНазвание
-
10a291004825 Rear Plat-Form CarpetRear Plat-Form Carpet
-
10f250000710 Torx Screw M6 X 3Torx Screw M6 X 3
-
10w291004813 Housing Nut M6Housing Nut M6
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
400291004597 CleatCleat
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
740291004941 Hose ProtectorHose Protector
-
750291004462 Access Cover Assy. Includes 750 to 750eAccess Cover Assy. Includes 750 to 750e
-
750a293200124 Seal, 1 PAC = 3 MSeal, 1 PAC = 3 M
-
750b291004611 StudStud
-
750c234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
750d232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
750e291004717 SealSeal
-
755291004668 Cover B-160Cover B-160
-
765250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
770234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
775232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
780291004549 Cargo BaseCargo Base
-
790291004481 Acces Cap Ass'yAcces Cap Ass'y
-
1900291004994 Pylon Base Assembly. Includes 1900 to 1900aPylon Base Assembly. Includes 1900 to 1900a
-
1900a293250183 StrapStrap
-
1905a291004766 Molded HandleMolded Handle
-
1905b291002642 Aluminum PostAluminum Post
-
1905c269501651 Ball SpringBall Spring
-
1905d293350062 Ball 1/4''Ball 1/4''
-
1905e219905276 Warning Decal Ski PostWarning Decal Ski Post
-
1905f219905277 Warning Decal Ski PostWarning Decal Ski Post
-
1905g293150167 Type ''U'' Metallic Drive ScrewType ''U'' Metallic Drive Screw
-
1905h291001519 Bumper Plug, BlackBumper Plug, Black
-
1950291004995 Wishbone Support Assembly. Includes 1950 to 1950gWishbone Support Assembly. Includes 1950 to 1950g
-
1950a708200374 RH LeverRH Lever
-
1950b232551200 Elastic Stop Nut 5 mmElastic Stop Nut 5 mm
-
1950c211200035 Flat WasherFlat Washer
-
1950d205451660 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
1950e234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
1950f232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
1950g273000261 StrapStrap
