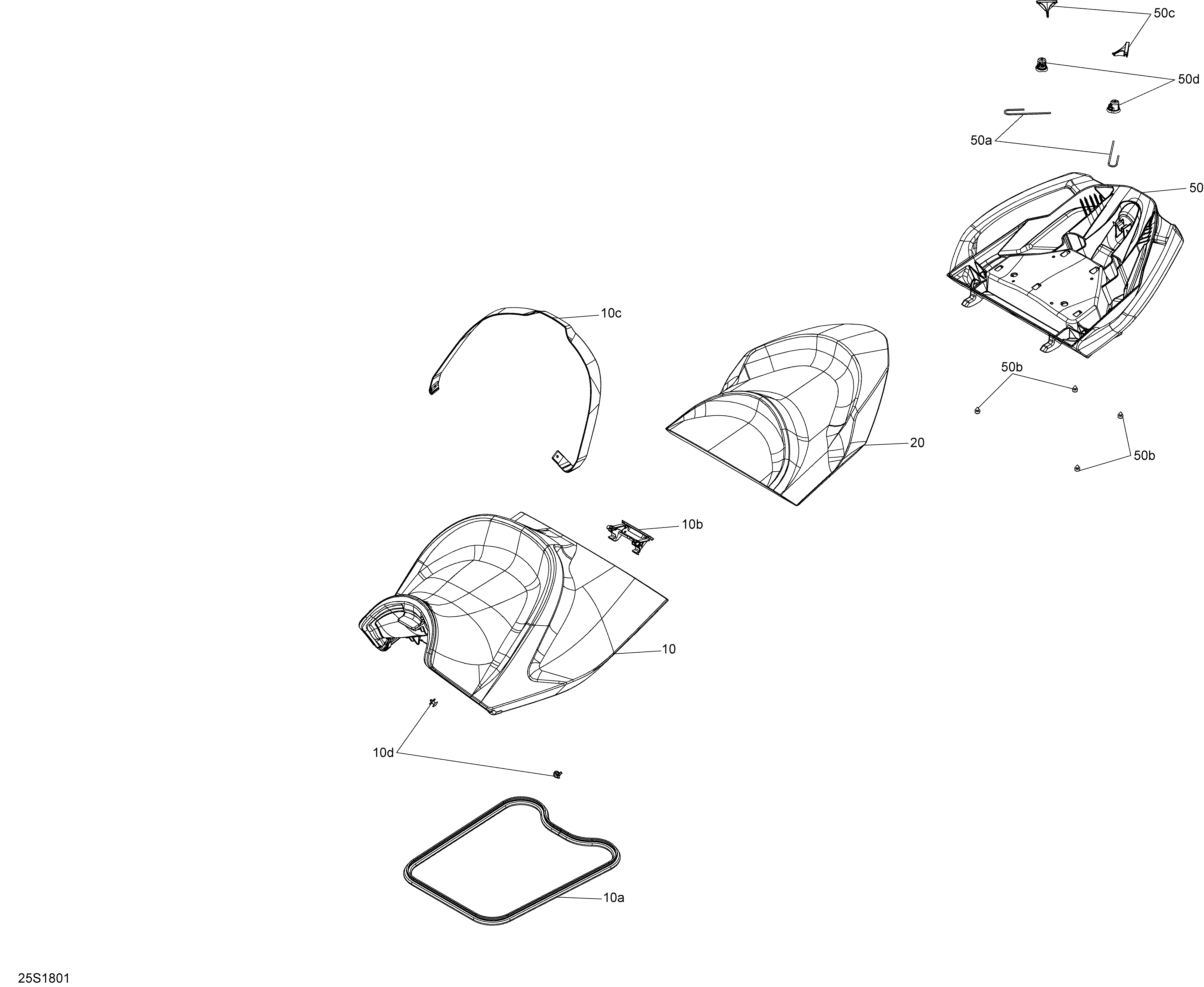

09- Seat - Wake Package Pro для BRP 2- WAKE PRO 230 - 2018
-
№АртикулНазвание
-
10>10d269003121 Front Seat Ass'y. Includes 10 to 10dFront Seat Ass'y. Includes 10 to 10d
-
10a293200124 SealSeal
-
10b269003103 Seat LatchSeat Latch
-
10c269003196 Seat Strap B-160Seat Strap B-160
-
10d293150067 RivetRivet
-
20269003122 Rear Seat Ass'yRear Seat Ass'y
-
50>50d269003042 Rear Handle. Includes 50 to 50dRear Handle. Includes 50 to 50d
-
50a269003083 Spring LatchSpring Latch
-
50b293830005 Rubber BumperRubber Bumper
-
50c269003084 Handle ButtonHandle Button
-
50d269003085 Stud ReceiverStud Receiver
