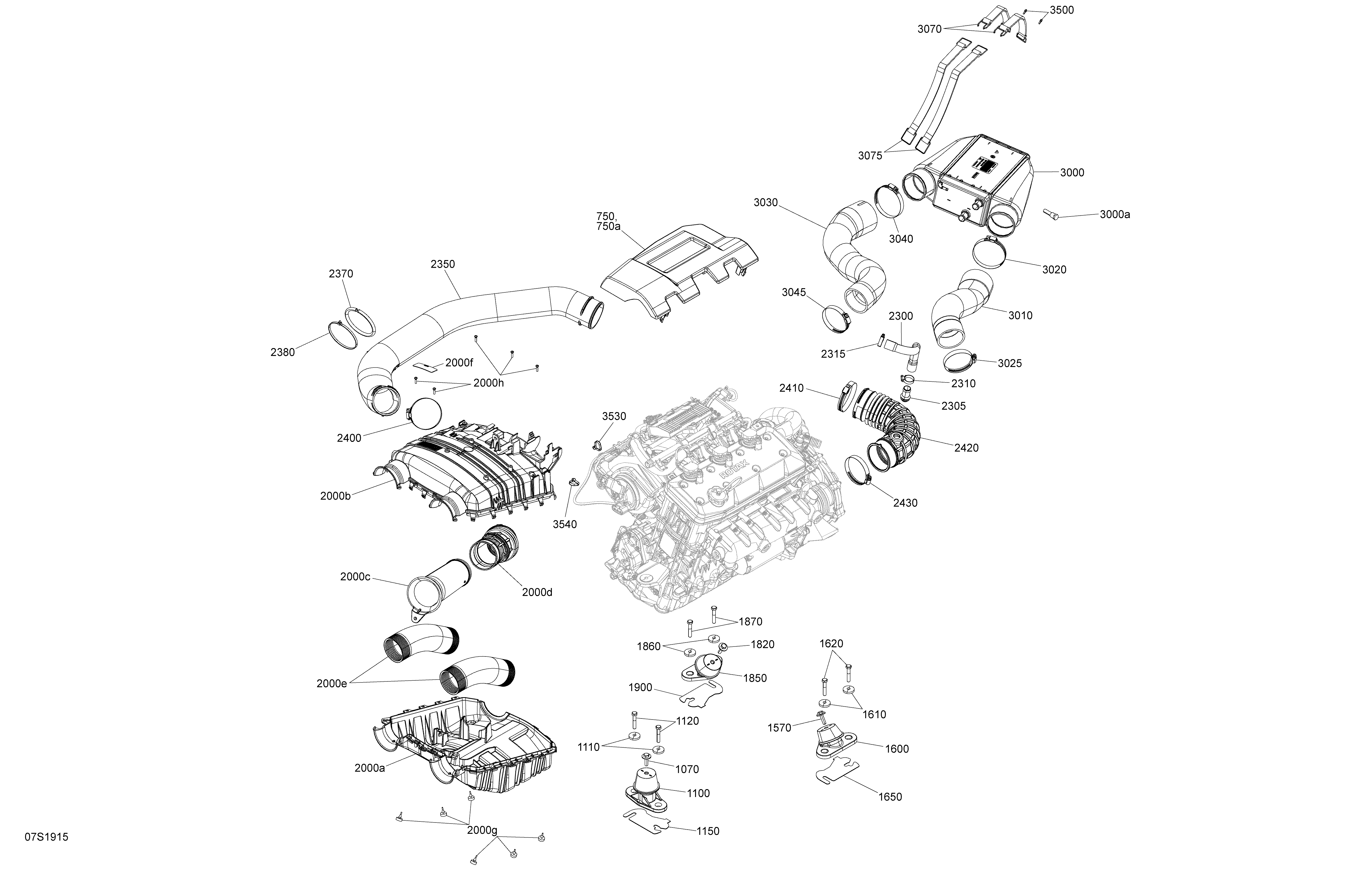

01- Engine для BRP 002 - RXT 300 - 2019
-
№АртикулНазвание
-
750>750a270001002 Cover Ass'y. Includes 750 TO 750aCover Ass'y. Includes 750 TO 750a
-
750a293250388 JOINT *SEALJOINT *SEAL
-
1070250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1100270001029 Rubber MountRubber Mount
-
1110250200018 Cone WasherCone Washer
-
1120250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1150270000762 Shim 1.3 mmShim 1.3 mm
-
1570250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1600270001011 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1650270000762 Shim 1.3 mmShim 1.3 mm
-
1820250000933 Hex Sems Screw M8 X 30 S.GripHex Sems Screw M8 X 30 S.Grip
-
1850270001011 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1900270000762 Shim 1.3 mmShim 1.3 mm
-
2000a273000342 Airbox BaseAirbox Base
-
2000b273000381 Intake Silencer CoverIntake Silencer Cover
-
2000c273000359 Intake HoseIntake Hose
-
2000d273000375 Hose ConnectorHose Connector
-
2000e273000290 Air Silencer HoseAir Silencer Hose
-
2000f219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000g708000759 Rubber StopperRubber Stopper
-
2000h250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2300270000950 Formed HoseFormed Hose
-
2305273000234 BreatherBreather
-
2310293650284 Clamp GearClamp Gear
-
2315293650284 Clamp GearClamp Gear
-
2350273000376 Intake Duct CTRLIntake Duct CTRL
-
2370293830197 HoseHose
-
2380293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2400293650283 Clamp GearClamp Gear
-
2410293650283 Clamp GearClamp Gear
-
2420273000380 Intake HoseIntake Hose
-
2430293650283 Clamp Gear. Includes 3000 TO 3000aClamp Gear. Includes 3000 TO 3000a
-
3000>3000a276000335 IntercoolerIntercooler
-
3000a271001942 Anode ZincAnode Zinc
-
3010273000379 Formed HoseFormed Hose
-
3020293650282 Clamp GearClamp Gear
-
3025293650283 Clamp GearClamp Gear
-
3030273000377 Outlet HoseOutlet Hose
-
3040293650282 Clamp GearClamp Gear
-
3045293650283 Clamp GearClamp Gear
-
3070293850094 Fuel Tank StrapFuel Tank Strap
-
3075293850093 Fuel Tank StrapFuel Tank Strap
-
3500293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
3530414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3540414115200 Tie-Rap 180 mmTie-Rap 180 mm
