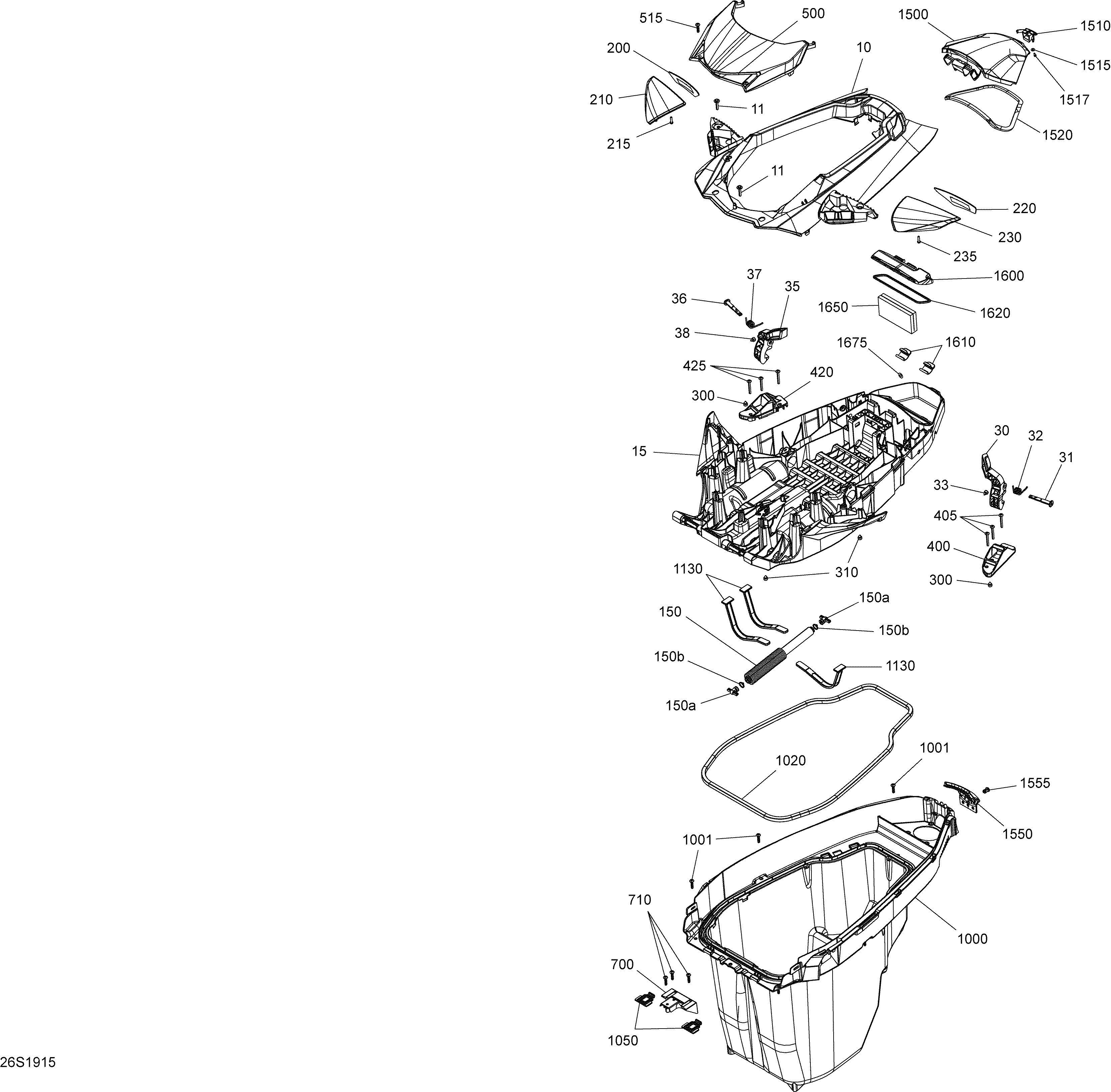

09- Front Cover для BRP 002 - RXT 300 - 2019
-
№АртикулНазвание
-
10269502394 Storage Bin Console and Mirror SupportStorage Bin Console and Mirror Support
-
11250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
15269502265 Inner Console SupportInner Console Support
-
30269502267 LH LatchLH Latch
-
31269502326 Latch AxisLatch Axis
-
32269502268 Latch SpringLatch Spring
-
33293830005 Rubber BumperRubber Bumper
-
35269502299 RH LatchRH Latch
-
36269502326 Latch AxisLatch Axis
-
37269502268 Latch SpringLatch Spring
-
38293830005 Rubber BumperRubber Bumper
-
150>150b269502271 Shock Absorber. Includes 150 TO 150bShock Absorber. Includes 150 TO 150b
-
150a269501717 Shock End PieceShock End Piece
-
150b293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
200269502276 RH Mirror AssemblyRH Mirror Assembly
-
210269502279 RH Mirror Cover B-160RH Mirror Cover B-160
-
215211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
220269502274 LH Mirror AssemblyLH Mirror Assembly
-
230269502278 LH Mirror Cover B-160LH Mirror Cover B-160
-
235211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
300293830005 Rubber BumperRubber Bumper
-
310293830005 Rubber BumperRubber Bumper
-
400269502385 LH Latch BaseLH Latch Base
-
405250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
420269502386 RH Latch BaseRH Latch Base
-
425250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
500269502283 Top Cover B-160Top Cover B-160
-
515250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
700269502282 Shock BaseShock Base
-
710250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1000264000144 Bin CompartmentBin Compartment
-
1001250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1020293250478 GasketGasket
-
1050269502325 Adjustment HookAdjustment Hook
-
1130269502145 StrapStrap
-
1500264000132 Glove Box DoorGlove Box Door
-
1510264000133 Glove Box LatchGlove Box Latch
-
1515234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
1517241140060 Screw K40 X 10Screw K40 X 10
-
1520293250403 GasketGasket
-
1550269502327 Glove Box TrimGlove Box Trim
-
1555293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1600264000134 Watertight DoorWatertight Door
-
1610269501718 ClipClip
-
1620293250412 GasketGasket
-
1650264000135 Sealed Compartment FoamSealed Compartment Foam
-
1675264000137 Vent MembraneVent Membrane
