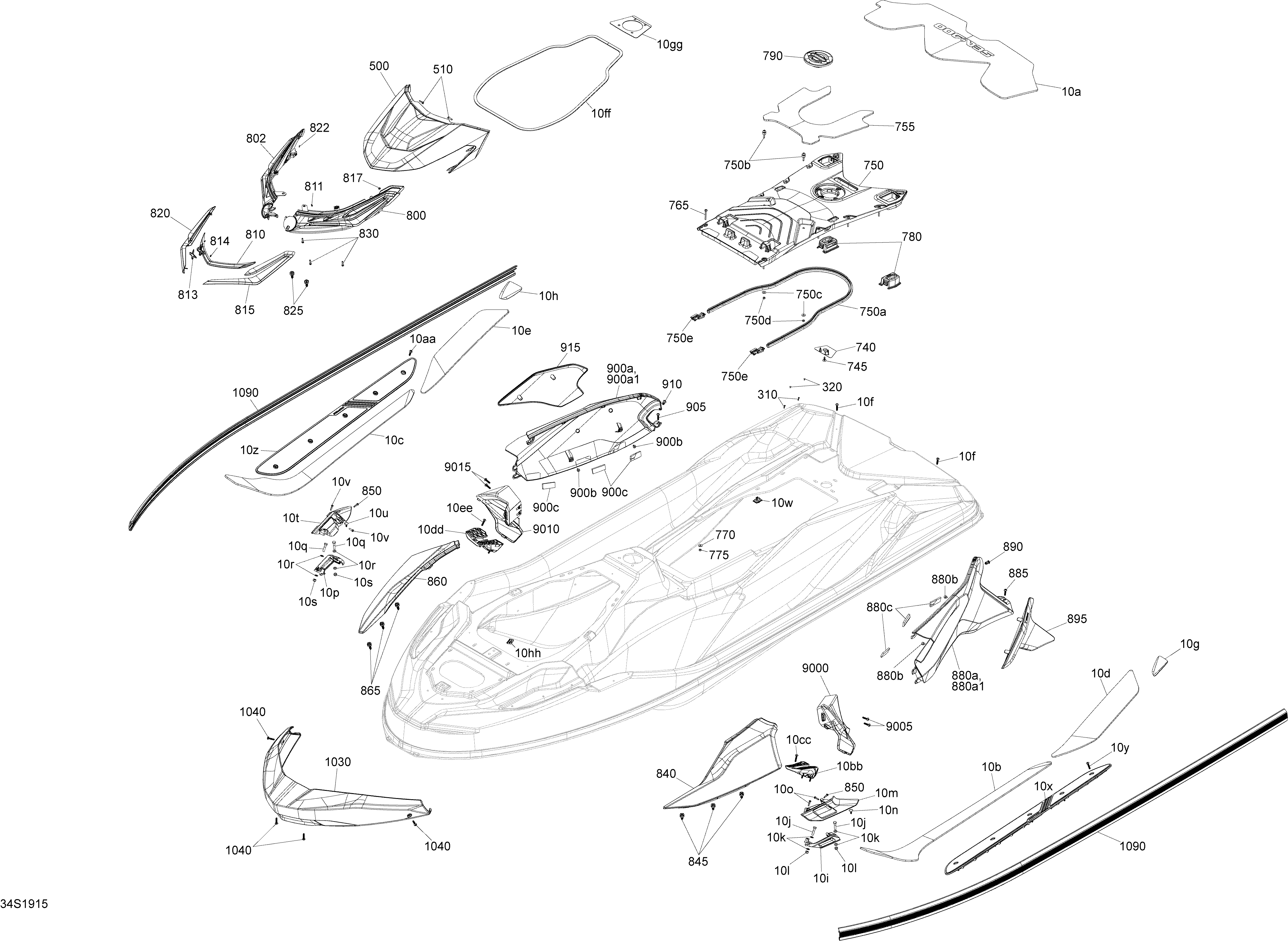

09- Body для BRP 002 - RXT 300 - 2019
-
№АртикулНазвание
-
10a291005077 Rear Plat-Form CarpetRear Plat-Form Carpet
-
10b291005046 Anti Slip Mat FRT LHAnti Slip Mat FRT LH
-
10c291005047 Anti Slip Mat FRT RHAnti Slip Mat FRT RH
-
10d291004514 LH Rear CarpetLH Rear Carpet
-
10e291004515 RH Rear CarpetRH Rear Carpet
-
10f250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10g291004516 Anti-Skid Pad LHAnti-Skid Pad LH
-
10h291004517 Anti-Skid Pad RHAnti-Skid Pad RH
-
10i291004559 LH CleatLH Cleat
-
10j207083560 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10k234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10l232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10m291004661 LH Shell CleatLH Shell Cleat
-
10n293730011 Black DartBlack Dart
-
10o211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
10p291004720 RH CleatRH Cleat
-
10q207083560 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10r234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10s232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10t291004719 RH Shell CleatRH Shell Cleat
-
10u293730011 Black DartBlack Dart
-
10v211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
10w291004813 Housing Nut M6Housing Nut M6
-
10x291004786 Footrest LH B-301 AssyFootrest LH B-301 Assy
-
10y250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10z291004787 Footrest RH B-301 AssyFootrest RH B-301 Assy
-
10aa250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10bb291004714 LH SupportLH Support
-
10cc250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10dd291004715 RH SupportRH Support
-
10ee250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10ff293250401 GasketGasket
-
10gg293250451 GasketGasket
-
10hh293750025 Tie-Rap MountTie-Rap Mount
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
500291004794 Hood B-160Hood B-160
-
510211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
740291004941 Hose ProtectorHose Protector
-
745293730011 Black DartBlack Dart
-
750291004462 Access Cover Assy. Includes 750 TO 750eAccess Cover Assy. Includes 750 TO 750e
-
750a293200124 Seal, 1 PAC = 3 MSeal, 1 PAC = 3 M
-
750b291004611 StudStud
-
750c234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
750d232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
750e291004717 SealSeal
-
755291004633 Cover B-281Cover B-281
-
765250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
770234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
775232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
780291005048 Cargo BaseCargo Base
-
790291004481 Acces Cap Ass'yAcces Cap Ass'y
-
800291004942 Grille Hood LH Ass'yGrille Hood LH Ass'y
-
802291004943 Grille Hood RH Ass'yGrille Hood RH Ass'y
-
810291004550 Trim F B-160Trim F B-160
-
811211100002 Push NutPush Nut
-
813291004770 Emblem XEmblem X
-
814211100002 Push NutPush Nut
-
815291004479 Trim LH B-322 Painted. Package RXT Neon YellowTrim LH B-322 Painted. Package RXT Neon Yellow
-
815291005007 Trim LH B-409 Painted. Package RXT Dragon RedTrim LH B-409 Painted. Package RXT Dragon Red
-
817211100002 Push NutPush Nut
-
820291004552 Trim RH B-322 Painted. Package RXT Neon YellowTrim RH B-322 Painted. Package RXT Neon Yellow
-
820291005013 Trim RH B-409 Painted. Package RXT Dragon RedTrim RH B-409 Painted. Package RXT Dragon Red
-
822211100002 Push NutPush Nut
-
825293730071 DardDard
-
830211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
840291004676 Body Panel FL B-420. Package RXT Neon YellowBody Panel FL B-420. Package RXT Neon Yellow
-
840291005001 Body Panel FRT LH B-311. Package RXT Dragon RedBody Panel FRT LH B-311. Package RXT Dragon Red
-
845293730071 DardDard
-
850211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
860291004775 Body Panel Front RH B-420. Package RXT Neon YellowBody Panel Front RH B-420. Package RXT Neon Yellow
-
860291005002 Body Panel FRT RH B-311. Package RXT Dragon RedBody Panel FRT RH B-311. Package RXT Dragon Red
-
865293730071 DardDard
-
880a291004999 Body Panel CTRL LH B-311Body Panel CTRL LH B-311
-
880b293830005 Rubber BumperRubber Bumper
-
880c278003618 StopperStopper
-
880a291004781 Body Panel CTRL L B-420 DrilledBody Panel CTRL L B-420 Drilled
-
880a1291004556 Body Panel CTRL L B-420Body Panel CTRL L B-420
-
880b293830005 Rubber BumperRubber Bumper
-
880c278003618 StopperStopper
-
885250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
890293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
895291004798 Knee Pad LH B-415 Ass'y. Package RXT Neon YellowKnee Pad LH B-415 Ass'y. Package RXT Neon Yellow
-
895291005003 Knee Pad LH B-311 Ass'y. Package RXT Dragon RedKnee Pad LH B-311 Ass'y. Package RXT Dragon Red
-
900a291004784 Body Panel CTRL R B-420 DrilledBody Panel CTRL R B-420 Drilled
-
900a1291004558 Body Panel CTRL R B-42Body Panel CTRL R B-42
-
900b293830005 Rubber BumperRubber Bumper
-
900c278003618 StopperStopper
-
900a291005000 Body Panel CTRL RH B-311Body Panel CTRL RH B-311
-
900b293830005 Rubber BumperRubber Bumper
-
900c278003618 StopperStopper
-
905250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
915291004801 Knee Pad RH B-286 Assy. Package RXT Neon YellowKnee Pad RH B-286 Assy. Package RXT Neon Yellow
-
915291005004 Knee Pad RH B-311 Ass'y. Package RXT Dragon RedKnee Pad RH B-311 Ass'y. Package RXT Dragon Red
-
1030291004452 Front BumperFront Bumper
-
1040250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1090291004468 BumperBumper
-
9000291004455 LH Side Grille. Except Package AudioLH Side Grille. Except Package Audio
-
9005250001007 Screw Torx M6.81 X 30. Except Package AudioScrew Torx M6.81 X 30. Except Package Audio
-
9010291004456 RH Side Grille. Except Package AudioRH Side Grille. Except Package Audio
-
9015250001007 Screw Torx M6.81 X 30. Except Package AudioScrew Torx M6.81 X 30. Except Package Audio
