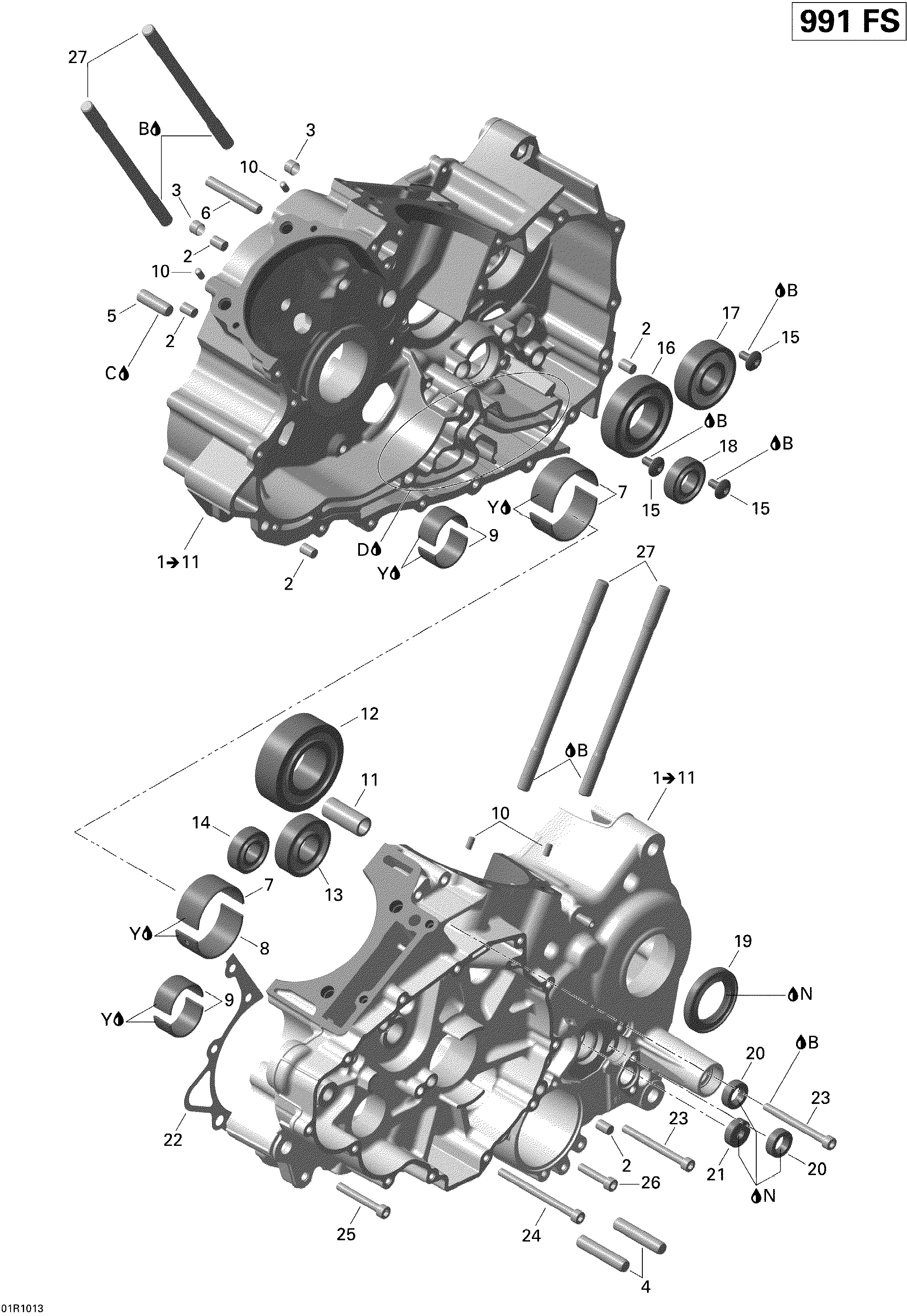

01- Crankcase для BRP Spyder RS Roadster SM5, Late Production 2010 - 2010
-
№АртикулНазвание
-
1420684711 Crankcase Ass'y. Includes 1 to 11Crankcase Ass'y. Includes 1 to 11
-
2420632010 Pin 8 X 12Pin 8 X 12
-
3420929500 Dowel TubeDowel Tube
-
4420229301 Location PinLocation Pin
-
5420929930 Pin, M6 X 50Pin, M6 X 50
-
6420229385 Pin, M6 X 55Pin, M6 X 55
-
7420233746 Plain Bearing, RedPlain Bearing, Red
-
7420233745 Plain Bearing, BluePlain Bearing, Blue
-
7420233748 Plain Bearing,YellowPlain Bearing,Yellow
-
8420233741 Plain Bearing, RedPlain Bearing, Red
-
8420233740 Plain Bearing, BluePlain Bearing, Blue
-
8420233743 Plain Bearing, YellowPlain Bearing, Yellow
-
9420233820 Plain Bearing, RedPlain Bearing, Red
-
9420233711 Plain Bearing, BluePlain Bearing, Blue
-
9420233822 Plain Bearing, YellowPlain Bearing, Yellow
-
10420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
11420229450 BoltBolt
-
12420832855 Ball BearingBall Bearing
-
13420932677 Ball BearingBall Bearing
-
14420932290 Ball BearingBall Bearing
-
15420241535 Hex. Screw M6 X 13Hex. Screw M6 X 13
-
16420932585 Ball BearingBall Bearing
-
17420832144 Ball BearingBall Bearing
-
18420232625 Ball BearingBall Bearing
-
19420831185 Oil SealOil Seal
-
20420250455 Oil SealOil Seal
-
21420631910 Oil SealOil Seal
-
22420430630 GasketGasket
-
23420241261 Allen Screw, M6 X 65Allen Screw, M6 X 65
-
24420241501 Allen Screw, M6 X 80Allen Screw, M6 X 80
-
25205064544 Socket Head Screw M6 X 45Socket Head Screw M6 X 45
-
26205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
27420241580 StudStud
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
D413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
