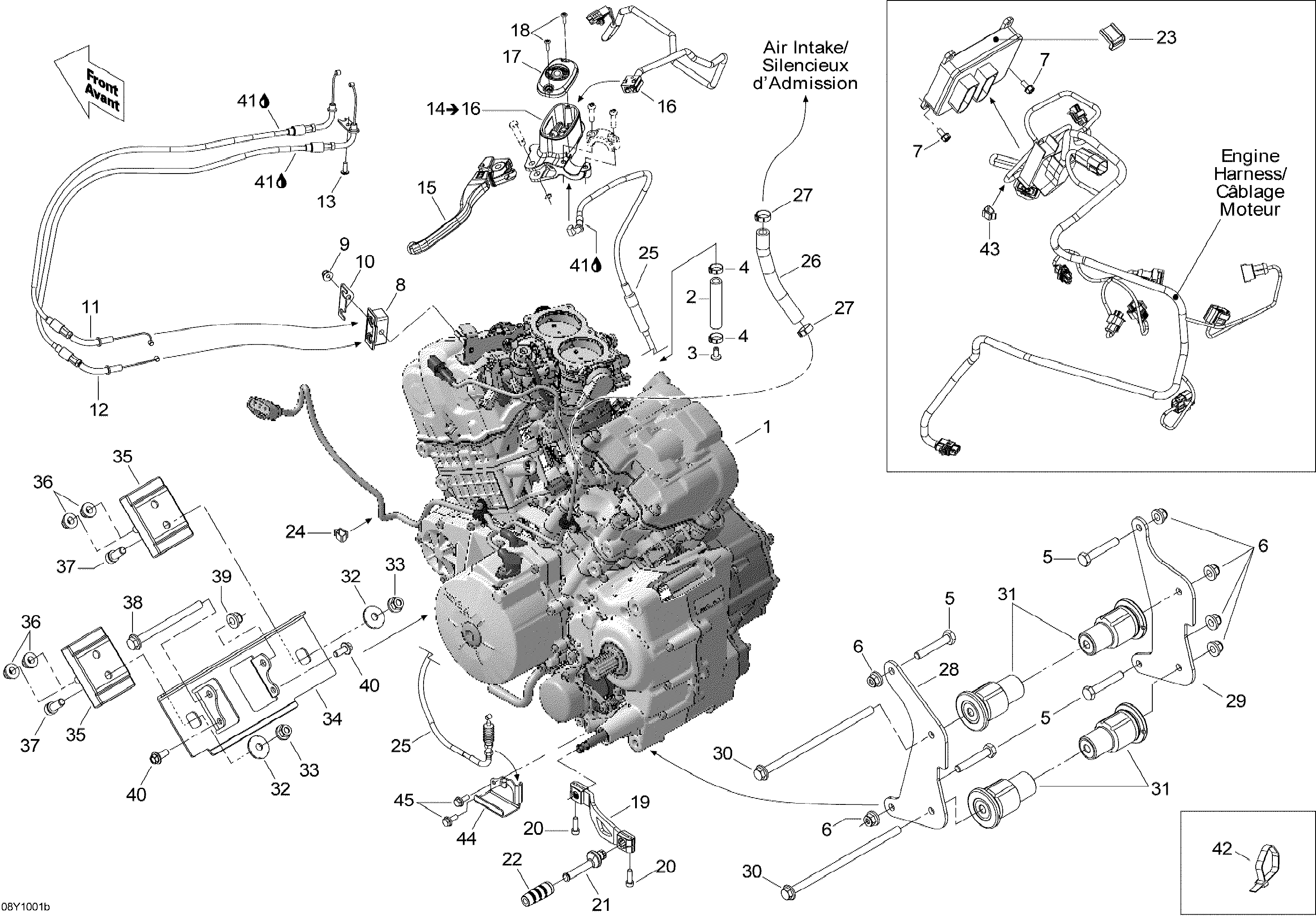

01- Engine SM5 для BRP Spyder RS Roadster SM5, Late Production 2010 - 2010
-
№АртикулНазвание
-
1707000854 Engine 991. Long Block 421000708Engine 991. Long Block 421000708
-
2513033565 HoseHose
-
3707000946 PlugPlug
-
4414415200 Universal Spring ClampUniversal Spring Clamp
-
5207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
6233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
7210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
8707000609 Indexing BlockIndexing Block
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10707000610 Fixation PlateFixation Plate
-
11707000809 Throttle CableThrottle Cable
-
12707000810 Throttle CableThrottle Cable
-
13250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
14707000849 Clutch Lever. Includes 14 to 16Clutch Lever. Includes 14 to 16
-
15707000623 Lever Ass'yLever Ass'y
-
16710002086 SwitchSwitch
-
17707000616 Cover ReservoirCover Reservoir
-
18250000342 Screw 8-32Screw 8-32
-
19707000386 LeverLever
-
20514054047 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
21707000455 Adjustment RodAdjustment Rod
-
22707000456 End Clutch PedalEnd Clutch Pedal
-
23278001166 Module ProtectorModule Protector
-
24414227300 ClipClip
-
25707000400 Reverse CableReverse Cable
-
26707000484 HoseHose
-
27293650186 Oetiker ClampOetiker Clamp
-
28707000510 Support LHSupport LH
-
29707000512 Support RHSupport RH
-
30250000286 Hex. Flanged Screw M10 X 210Hex. Flanged Screw M10 X 210
-
31707000516 Rubber MountRubber Mount
-
32512056700 Lock WasherLock Washer
-
33233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
34707000823 Front Engine SupportFront Engine Support
-
35707000441 Rubber MountRubber Mount
-
36233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
37205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
38230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
39233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
40207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
41293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
42293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
42293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
43414227300 ClipClip
-
44420251565 Reverse Cable SupportReverse Cable Support
-
45207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
