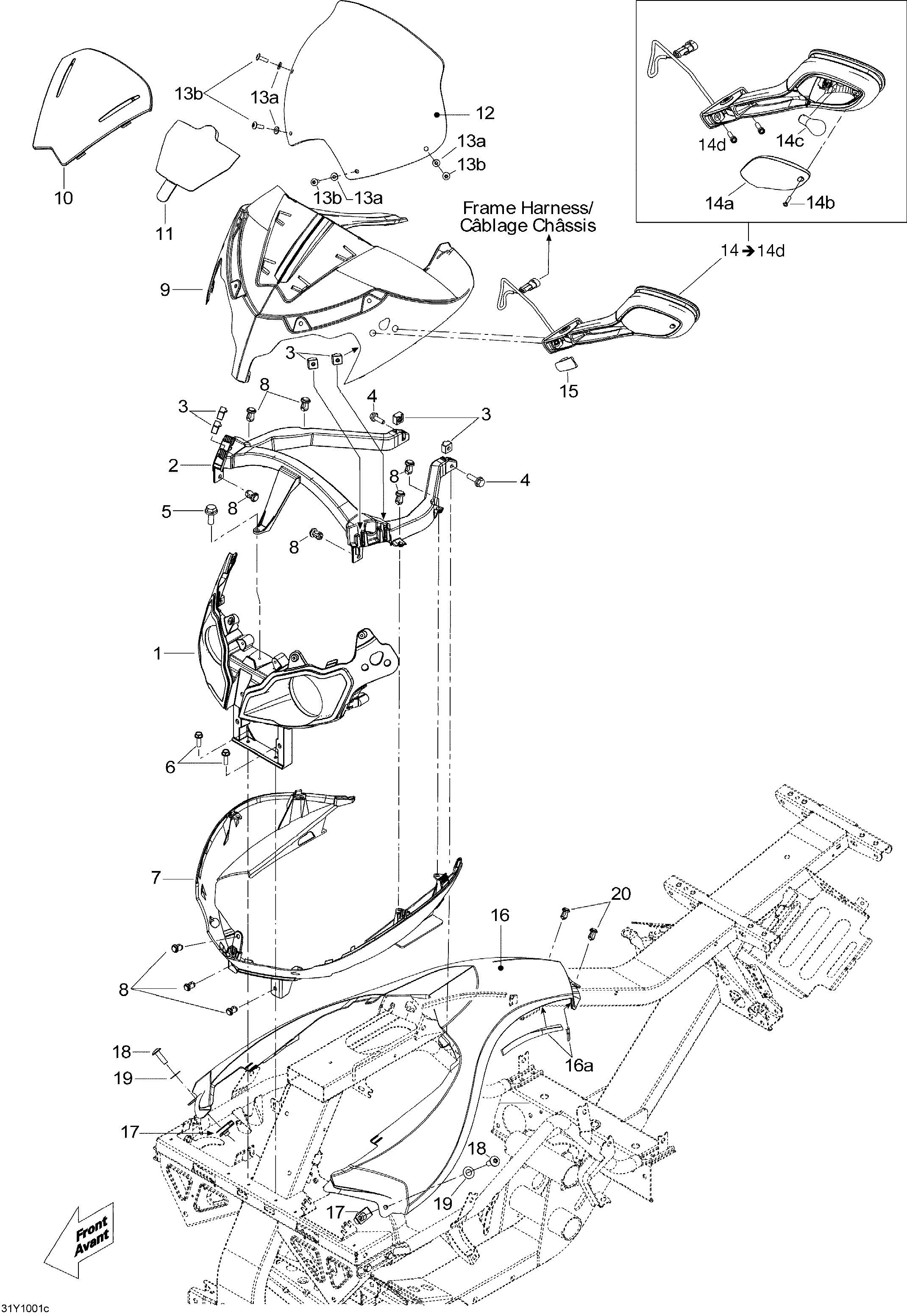

09- Body And Accessories Console для BRP Spyder RS Roadster SM5, Late Production 2010 - 2010
-
№АртикулНазвание
-
1705003035 Upper Headlamp SupportUpper Headlamp Support
-
2705001548 Console SupportConsole Support
-
3269500725 Nut Housing Ass'yNut Housing Ass'y
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
7705001427 Lower ConsoleLower Console
-
8293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
9705002082 Upper ConsoleUpper Console
-
10705002712 Upper Console DeflectorUpper Console Deflector
-
11705003472 Guide ChartGuide Chart
-
12705002939 WindshieldWindshield
-
13a250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
13b250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
14705003372 LH Mirror Ass'y. Includes 14 to 14cLH Mirror Ass'y. Includes 14 to 14c
-
14705003373 RH Mirror Ass'y. Includes 14 to 14cRH Mirror Ass'y. Includes 14 to 14c
-
14a219800047 LH Mirror LensLH Mirror Lens
-
14a219800048 RH Mirror LensRH Mirror Lens
-
14b219800049 Screw M3.9 X 19Screw M3.9 X 19
-
14c219800046 Bulb 12V 21W, AmberBulb 12V 21W, Amber
-
15705002704 LH Mirror CapLH Mirror Cap
-
15705002705 RH Mirror CapRH Mirror Cap
-
16705002603 Center Panel, Full Moon. SilverCenter Panel, Full Moon. Silver
-
16705003190 Center Panel, Red. RedCenter Panel, Red. Red
-
16705003885 Center Panel, Quantum Blue. BlueCenter Panel, Quantum Blue. Blue
-
16705003886 Center Panel, Pearl White. RS-SCenter Panel, Pearl White. RS-S
-
16705004619 Center Panel, Metallic Magnesium. RS, Magnesium ModelCenter Panel, Metallic Magnesium. RS, Magnesium Model
-
16a293250087 Gasket, NeopreneGasket, Neoprene
-
17250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19705003207 Plastic WasherPlastic Washer
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
