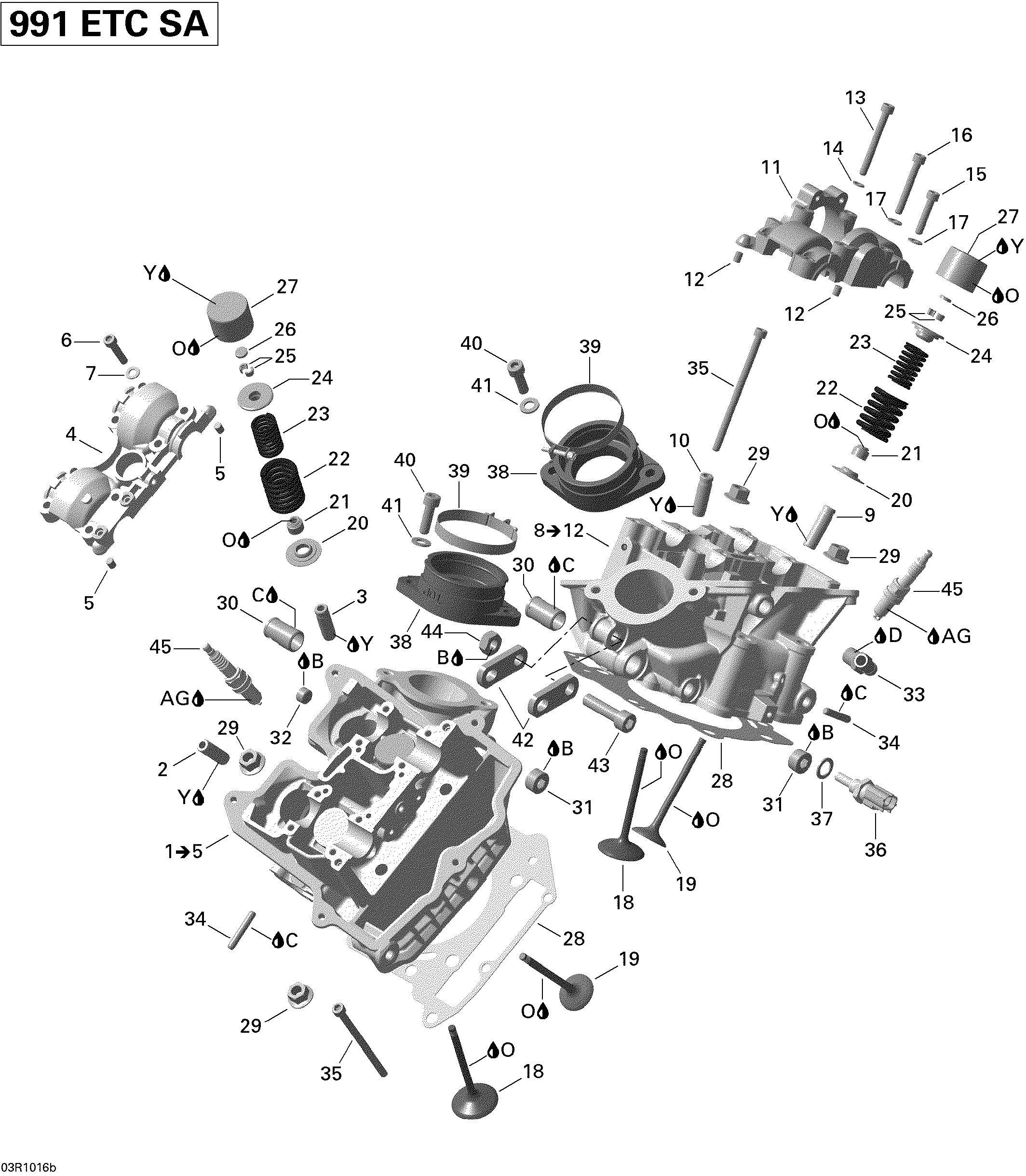

01- Cylinder Head для BRP Spyder RT, RTS Roadster SE5 - 2010
-
№АртикулНазвание
-
1420613465 Front Cylinder Head Ass'y. Inludes 1 to 7Front Cylinder Head Ass'y. Inludes 1 to 7
-
2420253926 Valve Guide, ExhaustValve Guide, Exhaust
-
3420253921 Valve Guide, IntakeValve Guide, Intake
-
5420232210 Center PinCenter Pin
-
6205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
7420927945 Flat WasherFlat Washer
-
8420613468 Rear Cylinder Head Ass'y. Inludes 8 to 17Rear Cylinder Head Ass'y. Inludes 8 to 17
-
9420253926 Valve Guide, ExhaustValve Guide, Exhaust
-
10420253921 Valve Guide, IntakeValve Guide, Intake
-
12420232210 Center PinCenter Pin
-
13420240331 Socket Head ScrewSocket Head Screw
-
15205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
16205064544 Socket Head Screw M6 X 45Socket Head Screw M6 X 45
-
17420927945 Flat WasherFlat Washer
-
18420254027 Exhaust Valve 31 mmExhaust Valve 31 mm
-
19420254295 Intake Valve, 38 mmIntake Valve, 38 mm
-
20420253967 Valve Spring ShimValve Spring Shim
-
21420230510 SealSeal
-
22420238211 Valve Spring, OuterValve Spring, Outer
-
23420238201 Valve Spring, InnerValve Spring, Inner
-
24420253957 Valve Spring RetainerValve Spring Retainer
-
25420253645 Valve CotterValve Cotter
-
26420253974 Shim 2.3Shim 2.3
-
26420254030 Shim 2.325Shim 2.325
-
26420253975 Shim 2.35Shim 2.35
-
26420254031 Shim 2.375Shim 2.375
-
26420253976 Shim 2.4Shim 2.4
-
26420254032 Shim 2.425Shim 2.425
-
26420253977 Shim 2.45Shim 2.45
-
26420254033 Shim 2.475Shim 2.475
-
26420253978 Shim 2.5Shim 2.5
-
26420254034 Shim 2.525Shim 2.525
-
26420253979 Shim 2.55Shim 2.55
-
26420254035 Shim 2.575Shim 2.575
-
26420253980 Shim 2.6Shim 2.6
-
26420254036 Shim 2.625Shim 2.625
-
26420253981 Shim 2.65Shim 2.65
-
26420254037 Shim 2.675Shim 2.675
-
26420253982 Shim 2.7Shim 2.7
-
26420254038 Shim 2.725Shim 2.725
-
26420253983 Shim 2.75Shim 2.75
-
26420254039 Shim 2.775Shim 2.775
-
26420253984 Shim 2.8Shim 2.8
-
26420254040 Shim 2.825Shim 2.825
-
26420253985 Shim 2.85Shim 2.85
-
26420254041 Shim 2.875Shim 2.875
-
26420253986 Shim 2.9Shim 2.9
-
26420254042 Shim 2.925Shim 2.925
-
26420253987 Shim 2.95Shim 2.95
-
26420254043 Shim 2.975Shim 2.975
-
26420253988 Shim 3.0Shim 3.0
-
26420254044 Shim 3.025Shim 3.025
-
26420253989 Shim 3.05Shim 3.05
-
27420253990 Tappet ValveTappet Valve
-
28420650210 Cylinder Head GasketCylinder Head Gasket
-
29233101414 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
30420224090 Elbow FittingElbow Fitting
-
31420240170 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
32420840657 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
33420922242 Angular TubeAngular Tube
-
34420440130 Stud, M6 X 19/16Stud, M6 X 19/16
-
35420241601 Socket Head Screw M6 X 100Socket Head Screw M6 X 100
-
36420274040 Temperature SensorTemperature Sensor
-
37420250640 Copper WasherCopper Washer
-
38420267150 Intake FlangeIntake Flange
-
39420251830 Hose ClampHose Clamp
-
40205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
41420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
42420251100 Support BracketSupport Bracket
-
43420640581 Socket Head Screw M10 X 40Socket Head Screw M10 X 40
-
44232006414 Hex. Nut M10Hex. Nut M10
-
45219800231 Spark Plug NGK KR8BISpark Plug NGK KR8BI
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
D413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
-
AG420897186 Heat-Sink Paste P12, 90 mlHeat-Sink Paste P12, 90 ml
