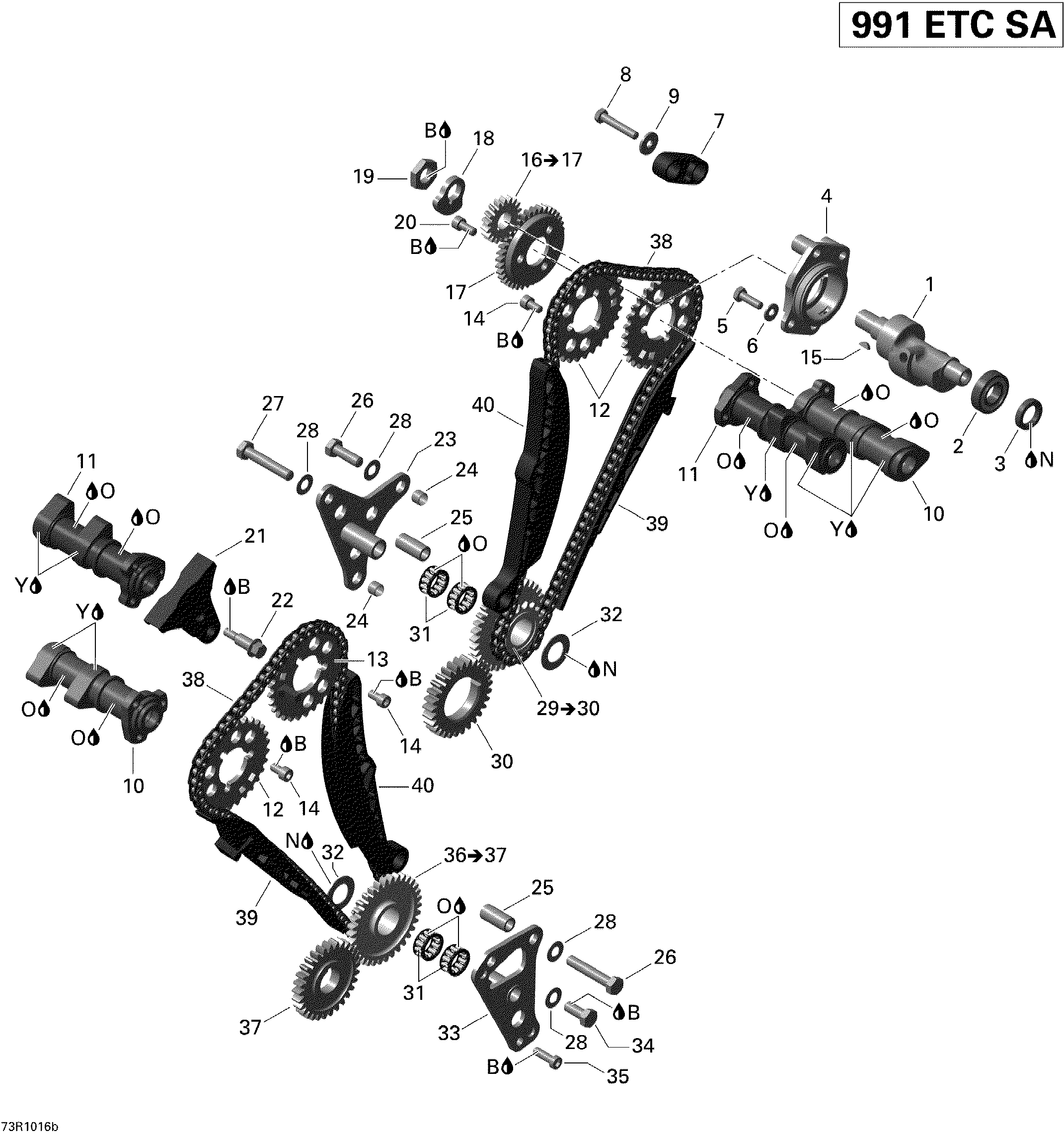

01- Valve Train для BRP Spyder RT, RTS Roadster SE5 - 2010
-
№АртикулНазвание
-
1420220442 Top BalancerTop Balancer
-
2420832360 Ball BearingBall Bearing
-
3420250130 Oil SealOil Seal
-
4420211685 Flange Bearing Ass'yFlange Bearing Ass'y
-
5420940560 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
6224061121 Flat WasherFlat Washer
-
7420236380 Chain GuideChain Guide
-
8207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
9420827305 Flat WasherFlat Washer
-
10420620945 Camshaft ExhaustCamshaft Exhaust
-
11420620940 Intake CamshaftIntake Camshaft
-
12420634732 Timing GearTiming Gear
-
13420435115 Timing GearTiming Gear
-
14420840371 Socket Head Screw M6 X 11.5Socket Head Screw M6 X 11.5
-
15420246055 Woodruff KeyWoodruff Key
-
16420295775 Gear Train Ass'y. Includes 16 to 17Gear Train Ass'y. Includes 16 to 17
-
18420219340 BalancingBalancing
-
19420942570 Hex. Nut M14 X 1Hex. Nut M14 X 1
-
20420840391 Allen Screw M6 X 14Allen Screw M6 X 14
-
21420236322 Chain GuideChain Guide
-
22420240960 Distance Screw M6 X 16Distance Screw M6 X 16
-
23420211756 Flange BearingFlange Bearing
-
25420247980 SleeveSleeve
-
26207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
27207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
28420845030 Spring WasherSpring Washer
-
29420295760 Camshaft Drive Gear Ass'y. Includes 29 to 30Camshaft Drive Gear Ass'y. Includes 29 to 30
-
31420632161 Needle BearingNeedle Bearing
-
32420627190 Thrust WasherThrust Washer
-
33420211766 Flange BearingFlange Bearing
-
34207181860 Hex. Screw M8 X 18Hex. Screw M8 X 18
-
35420240400 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
36420295765 Distribution Drive Gear Ass'y. Includes 36 to 37Distribution Drive Gear Ass'y. Includes 36 to 37
-
38420297957 Camshaft ChainCamshaft Chain
-
39420236310 Chain GuideChain Guide
-
40420236300 Chain Tension GuideChain Tension Guide
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
