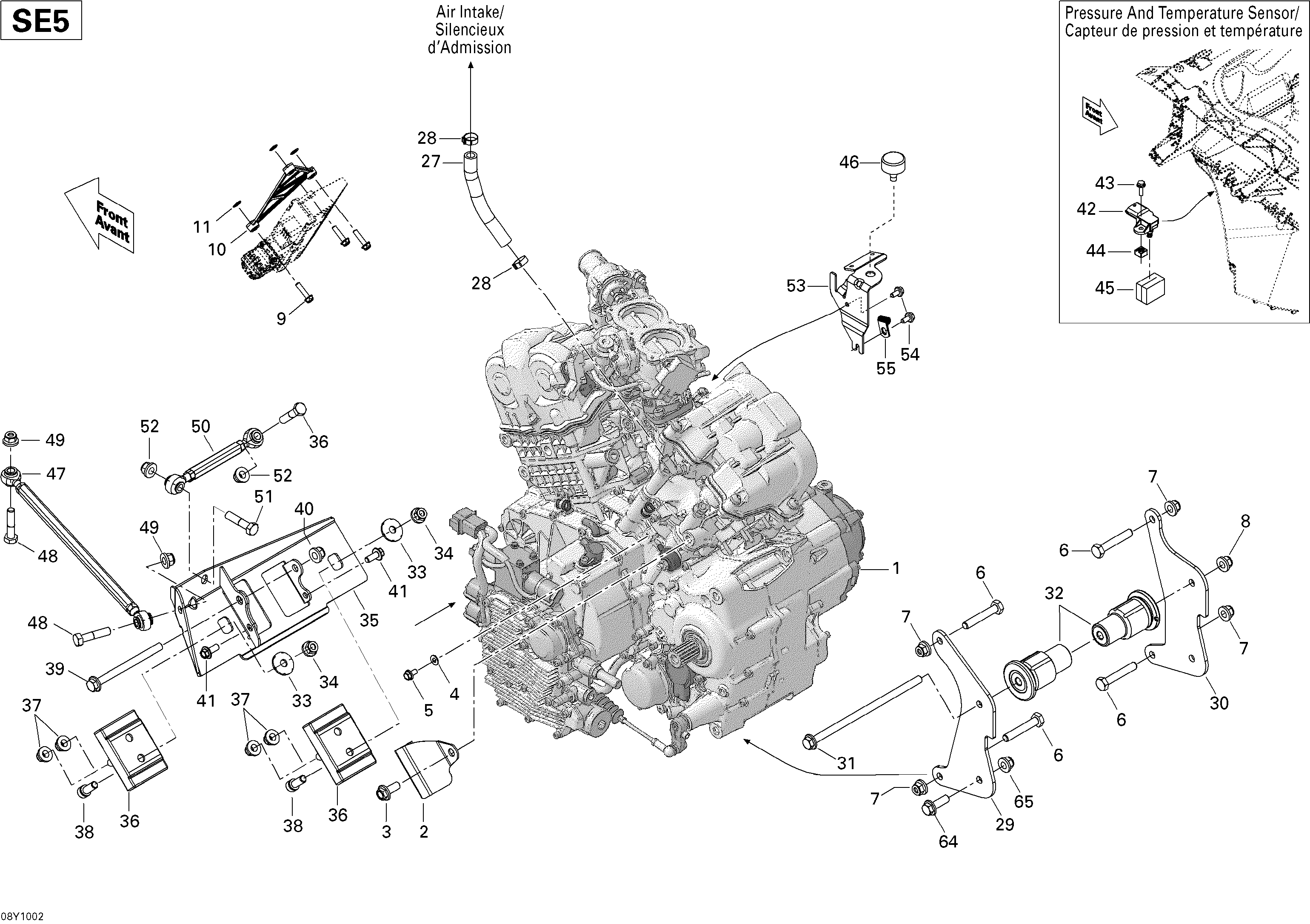

01- Engine , SE5 Electronic для BRP Spyder RT, RTS Roadster SE5 - 2010
-
№АртикулНазвание
-
1707000629 Engine, Rotax 991 SE5Engine, Rotax 991 SE5
-
2707000845 DeflectorDeflector
-
3207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4224061121 Flat WasherFlat Washer
-
5207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
6207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
7233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
10710001886 SpacerSpacer
-
11732610072 Push NutPush Nut
-
27707000484 HoseHose
-
28293650186 Oetiker ClampOetiker Clamp
-
29707000510 Support LHSupport LH
-
30707000512 Support RHSupport RH
-
31250000286 Hex. Flanged Screw M10 X 210Hex. Flanged Screw M10 X 210
-
32707000814 Rubber MountRubber Mount
-
33512056700 Lock WasherLock Washer
-
34233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
35707000823 Front Engine SupportFront Engine Support
-
36707000815 Rubber MountRubber Mount
-
37233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
38205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
39230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
40233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
41207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
42707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
43207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
44269500725 Nut Housing Ass'yNut Housing Ass'y
-
45707000586 FilterFilter
-
46708000758 Rubber StopperRubber Stopper
-
47707000816 Rod Ass'yRod Ass'y
-
48207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
49233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50707000817 Rod Ass'yRod Ass'y
-
51207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
52233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
53707000756 Intake SupportIntake Support
-
54207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
55415052400 AttacheAttache
-
64207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
65233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
