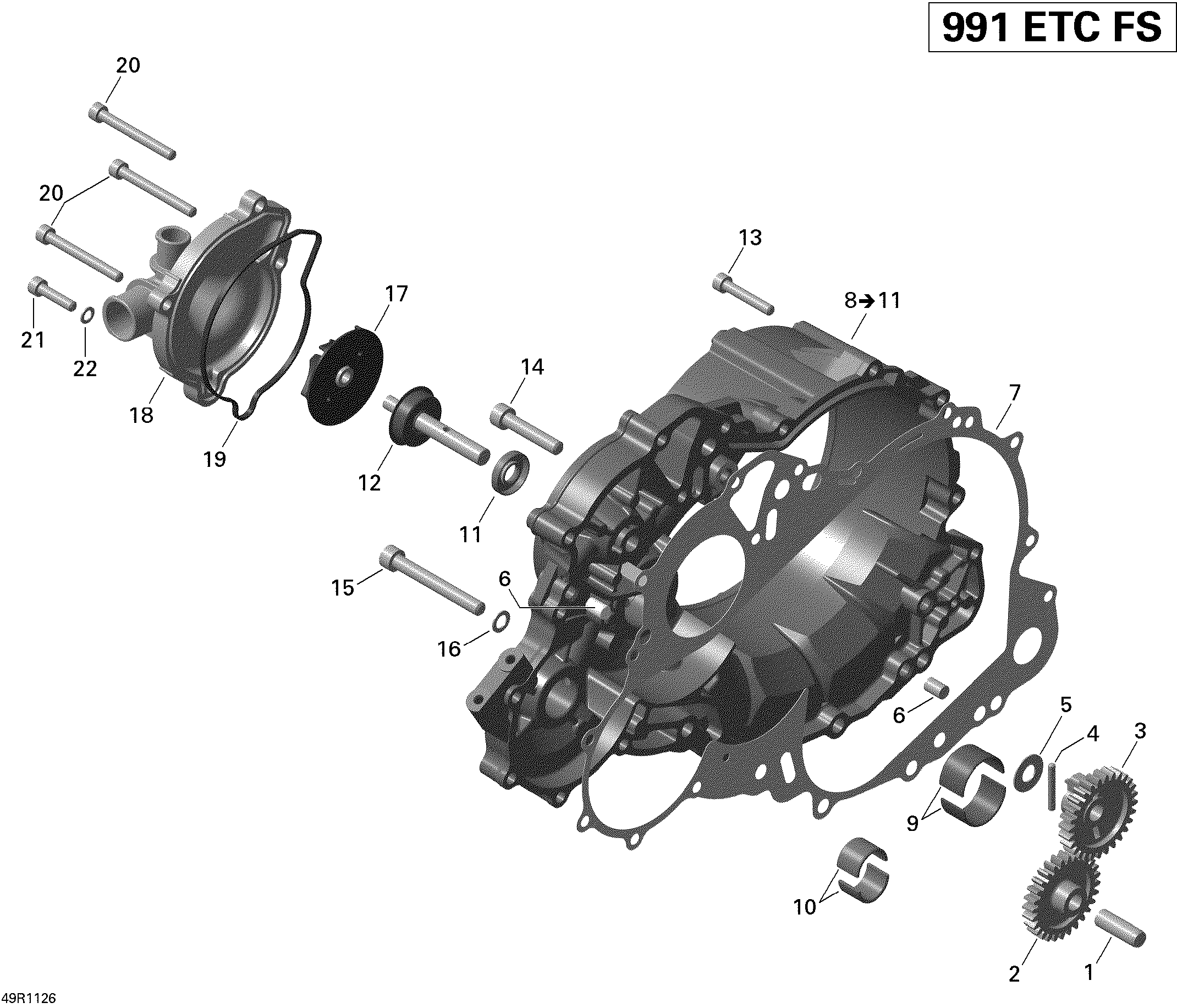

01- Clutch Cover And Water Pump для BRP Spyder RT, Roadster SM5 - 2011
-
№АртикулНазвание
-
1420929930 Pin, M6 X 50Pin, M6 X 50
-
2420634500 Intermediate Gear Water PumpIntermediate Gear Water Pump
-
3420634490 Gear Water PumpGear Water Pump
-
4420232430 Needle PinNeedle Pin
-
5420227685 Thrust WasherThrust Washer
-
6420632010 Center Pin 8 X 12Center Pin 8 X 12
-
7420650330 GasketGasket
-
8420610156 Clutch Cover Ass'y. Includes 8 to 11Clutch Cover Ass'y. Includes 8 to 11
-
9420233791 Plain Bearing, RedPlain Bearing, Red
-
9420233790 Plain Bearing, BluePlain Bearing, Blue
-
9420233793 Plain Bearing, YellowPlain Bearing, Yellow
-
10420233780 Plain Bearing, BluePlain Bearing, Blue
-
11420631460 Oil SealOil Seal
-
12420220413 Water Pump ShaftWater Pump Shaft
-
13420241811 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
14420840681 Allen Screw M8 X 40Allen Screw M8 X 40
-
15420841841 Socket Head Screw M8 X 65Socket Head Screw M8 X 65
-
16420950141 Sealing RingSealing Ring
-
17420222500 ImpellerImpeller
-
18420222514 Water Pump HousingWater Pump Housing
-
19420650240 Seal RingSeal Ring
-
20420240331 Socket Head ScrewSocket Head Screw
-
21205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
22420230415 Seal WasherSeal Washer
