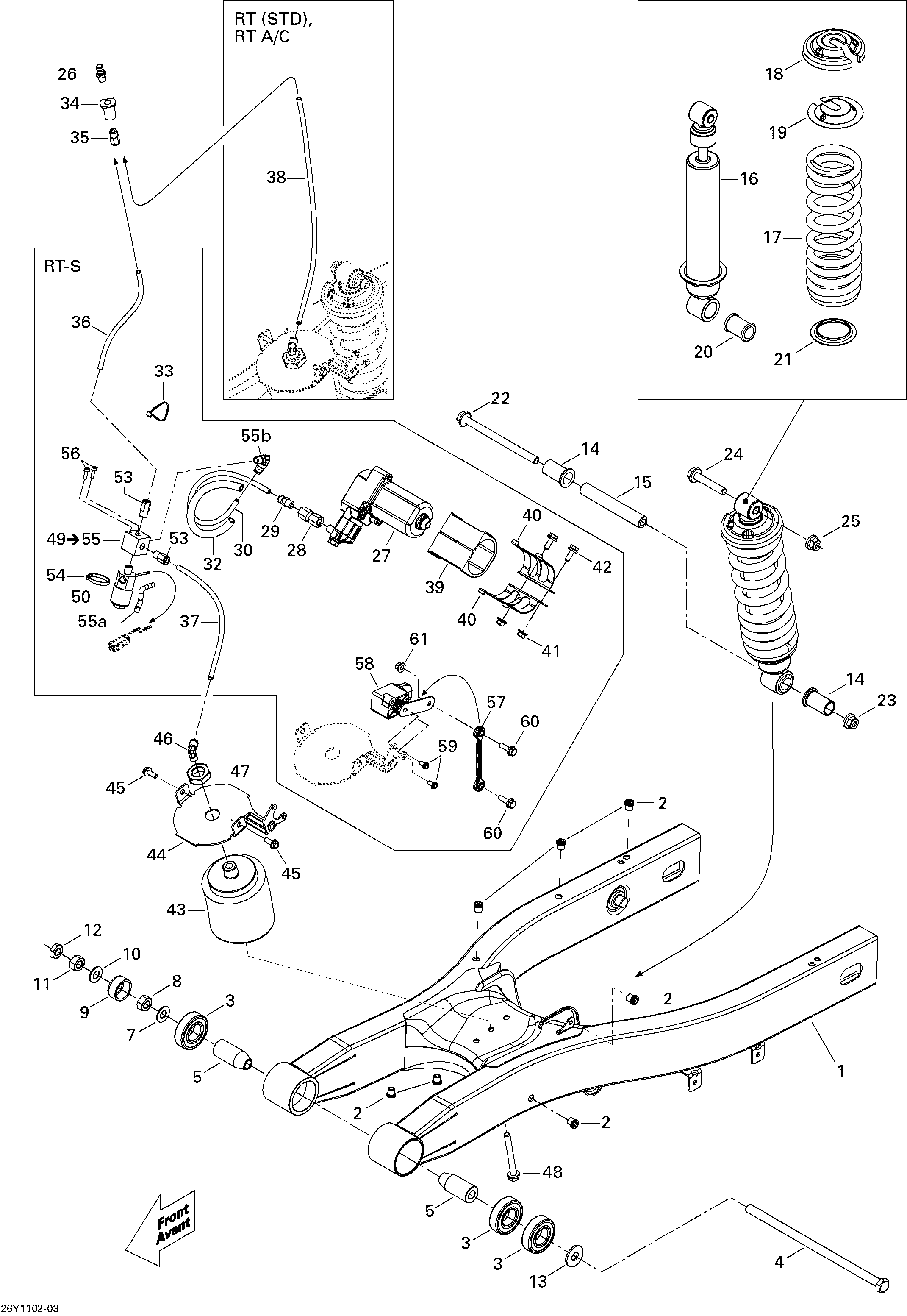

08- Suspension, Rear для BRP Spyder RT, Roadster SM5 - 2011
-
№АртикулНазвание
-
1706001063 Swing ArmSwing Arm
-
2415107300 InsertInsert
-
3293350055 Ball BearingBall Bearing
-
4250000367 Hex. Screw M12 X 265, Scotch GripHex. Screw M12 X 265, Scotch Grip
-
5706000474 Internal BushingInternal Bushing
-
7503191435 WasherWasher
-
8232021486 Hex. Nut M12Hex. Nut M12
-
9706000486 BushingBushing
-
10503191435 WasherWasher
-
11232021486 Hex. Nut M12Hex. Nut M12
-
12232120434 Hex. Jam Nut M12Hex. Jam Nut M12
-
13506136400 Flat WasherFlat Washer
-
14706000410 SpacerSpacer
-
15706000409 Shock Absorber ShaftShock Absorber Shaft
-
16706000907 ShockShock
-
17706000906 SpringSpring
-
18503191604 Spring StopperSpring Stopper
-
19503191605 CapCap
-
20503191609 Urethane CushionUrethane Cushion
-
21503191872 Spring GuideSpring Guide
-
22230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
23233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
24207605534 Hex. Flanged ScrewHex. Flanged Screw
-
25233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
26706000678 Air ValveAir Valve
-
27503192517 Compressor. RT-SCompressor. RT-S
-
28706000869 Connector. RT-SConnector. RT-S
-
29706000831 Ckeck Valve. RT-SCkeck Valve. RT-S
-
30415129507 Hose. RT-SHose. RT-S
-
32515175442 Tubing 6 mm. RT-STubing 6 mm. RT-S
-
33414115200 Tie-Rap 180 mm. RT-STie-Rap 180 mm. RT-S
-
34706000735 Pneumatic ConnectorPneumatic Connector
-
35706000869 ConnectorConnector
-
36415129507 Hose. RT-SHose. RT-S
-
37415129507 Hose. RT-SHose. RT-S
-
38415129507 Hose. RT (STD), RT-S, RT A/CHose. RT (STD), RT-S, RT A/C
-
39706000631 Compressor Isolator. RT-SCompressor Isolator. RT-S
-
40503193103 Compressor Bracket. RT-SCompressor Bracket. RT-S
-
41233061414 Hex. Flanged Nut M6. RT-SHex. Flanged Nut M6. RT-S
-
42207661644 Hex. Flanged Screw M6 X 16. RT-SHex. Flanged Screw M6 X 16. RT-S
-
43706000613 Air DamperAir Damper
-
44706001082 Support PlateSupport Plate
-
45210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
46706001018 Elbow 90°Elbow 90°
-
47250100119 Jam Nut M20Jam Nut M20
-
48207687544 Hex. Flanged Screw M8 X 75Hex. Flanged Screw M8 X 75
-
49706000766 Air Manifold Ass'y. Includes 49 to 55, RT-SAir Manifold Ass'y. Includes 49 to 55, RT-S
-
50503189097 ValveValve
-
53706000869 ConnectorConnector
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
55a515175442 Tubing 6 mmTubing 6 mm
-
55b706000928 Elbow 90°Elbow 90°
-
56205041284 Socket Head Screw M4 X 12. RT-SSocket Head Screw M4 X 12. RT-S
-
57706200895 Tie Rod. RT-STie Rod. RT-S
-
58710001651 Position Sensor. RT-SPosition Sensor. RT-S
-
59207551044 Flanged Hex. Screw M5 X 10. RT-SFlanged Hex. Screw M5 X 10. RT-S
-
60207562044 Flanged Screw M6 X 20, Scotch Grip. RT-SFlanged Screw M6 X 20, Scotch Grip. RT-S
-
61233061414 Hex. Flanged Nut M6. RT-SHex. Flanged Nut M6. RT-S
