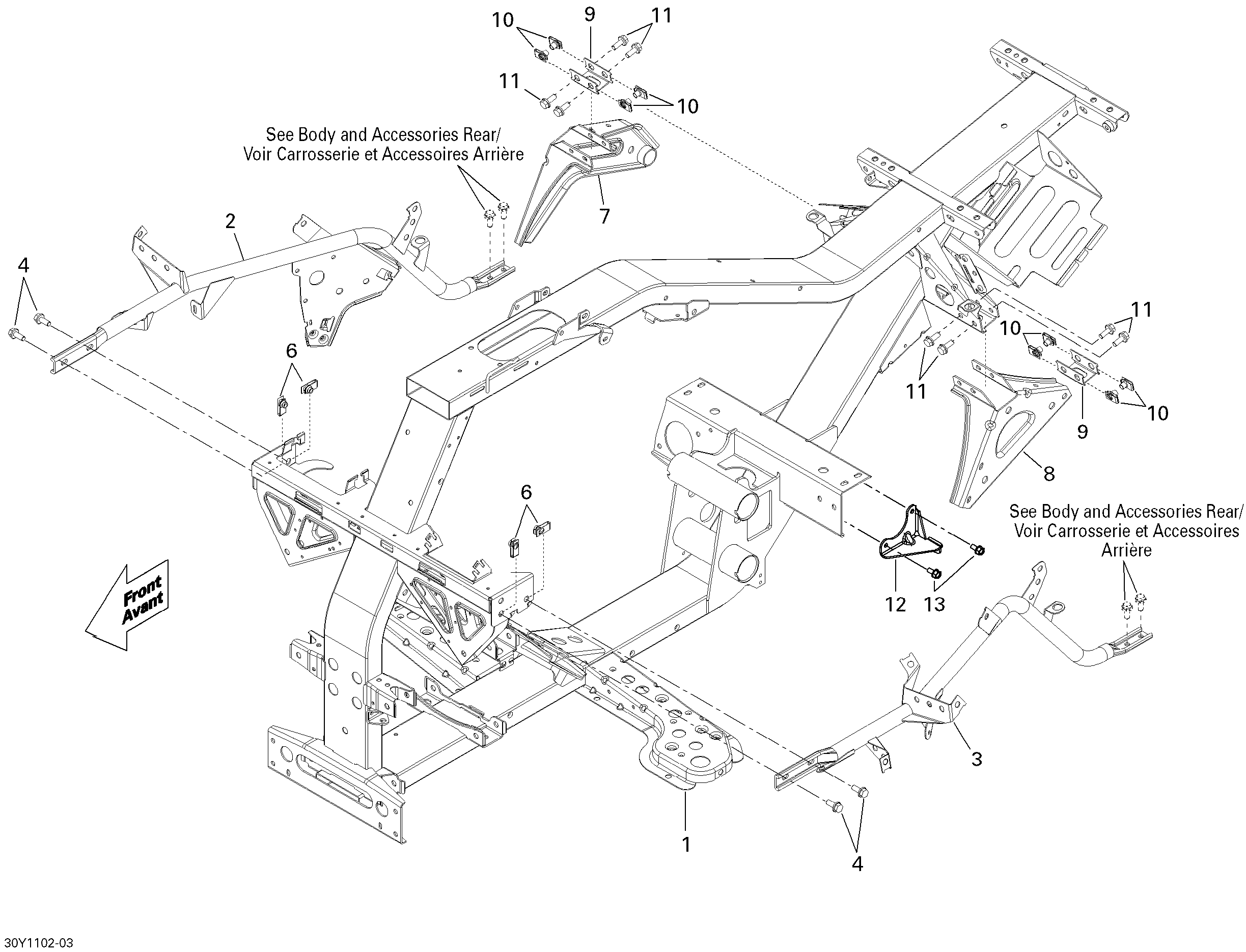

09- Frame для BRP Spyder RT, Roadster SM5 - 2011
-
№АртикулНазвание
-
1705202564 Frame, BlackFrame, Black
-
2705201637 RH SupportRH Support
-
3705201638 LH SupportLH Support
-
4207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
6250100118 Panel Nut M8 X 1,25Panel Nut M8 X 1,25
-
7705201873 RH Rear SupportRH Rear Support
-
8705201874 LH Rear SupportLH Rear Support
-
9705202484 'U'' Bracket'U'' Bracket
-
10250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
11207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
12705202587 Stopper Swing ArmStopper Swing Arm
-
13210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
