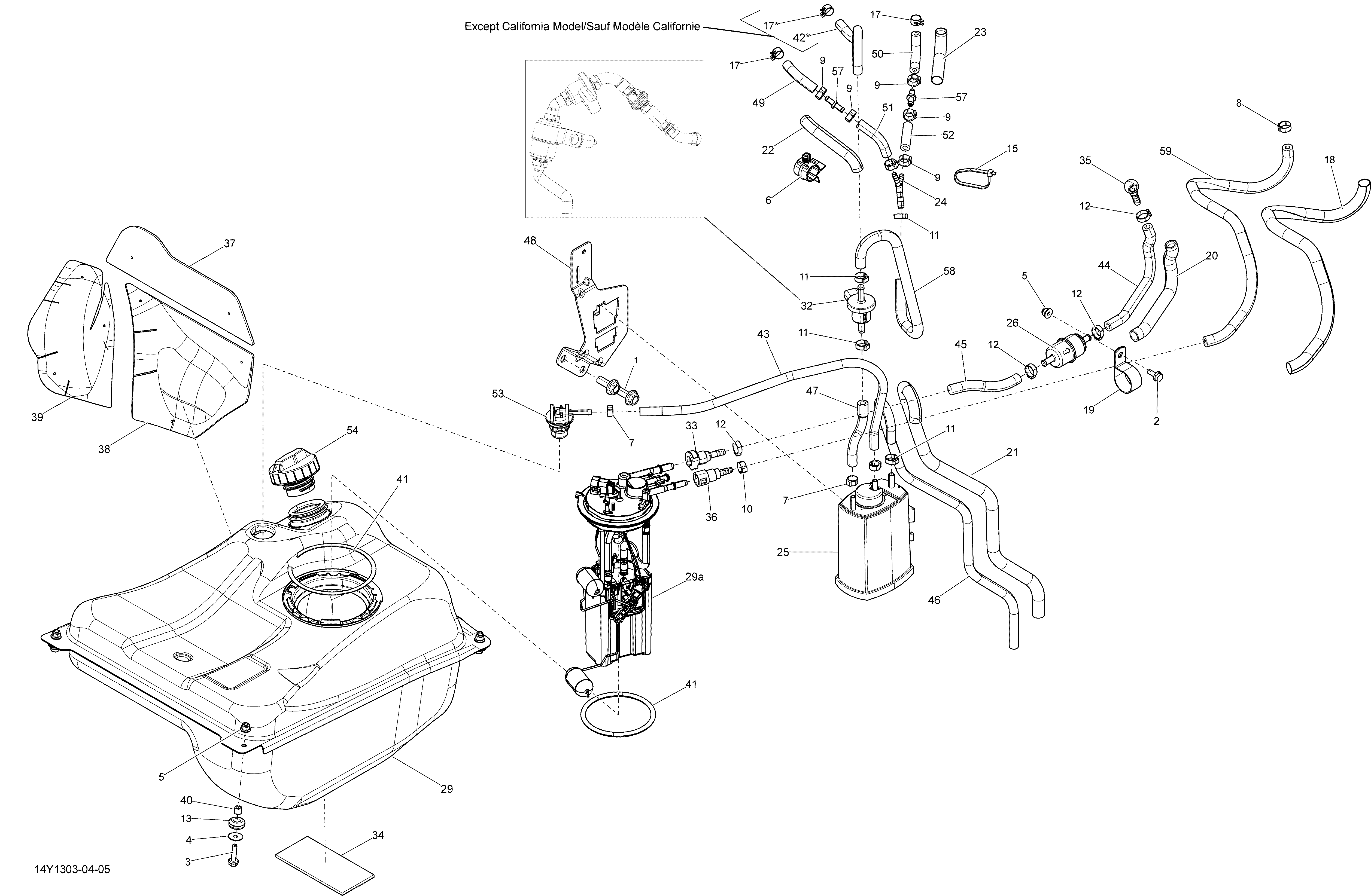

02- Fuel System для BRP Spyder ST_STS SE5 - 2013
-
№АртикулНазвание
-
1207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4224060201 Flat WasherFlat Washer
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6275500527 RetainerRetainer
-
7293650025 Oetiker Gear ClampOetiker Gear Clamp
-
8293650025 Oetiker Gear ClampOetiker Gear Clamp
-
9293650025 Oetiker Gear ClampOetiker Gear Clamp
-
10293650046 Oetiker ClampOetiker Clamp
-
11293650047 Crimp ClampCrimp Clamp
-
12293650125 Oetiker ClampOetiker Clamp
-
13293720053 GrommetGrommet
-
15293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
17414415200 Universal Spring ClampUniversal Spring Clamp
-
18415080000 Tubing 16 mmTubing 16 mm
-
19513033047 Open ClampOpen Clamp
-
20415080000 Tubing 16 mmTubing 16 mm
-
21513033412 TubingTubing
-
22415080000 Tubing 16 mmTubing 16 mm
-
23415080000 Tubing 16 mmTubing 16 mm
-
24513033672 Y ConnectorY Connector
-
25709000090 Vapor CanisterVapor Canister
-
26709000100 Fuel FilterFuel Filter
-
29709000314 Fuel TankFuel Tank
-
32709000793 Purge Valve ass'yPurge Valve ass'y
-
33709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
34709000130 CarpetCarpet
-
35709000137 Banjo FittingBanjo Fitting
-
36709000141 Quick FittingQuick Fitting
-
37709000157 Reflective SheetReflective Sheet
-
38709000158 Reflective SheetReflective Sheet
-
39709000159 Reflective SheetReflective Sheet
-
40709000162 BushingBushing
-
41219800248 Seal KitSeal Kit
-
42709000253 HoseHose
-
43513033565 HoseHose
-
44415129502 Fuel Line 7.9 mm, MeterFuel Line 7.9 mm, Meter
-
45415129501 Fuel Line 6.4 mm, MeterFuel Line 6.4 mm, Meter
-
46709000277 Formed HoseFormed Hose
-
47709000365 Formed HoseFormed Hose
-
48709000384 Fuel Filter SupportFuel Filter Support
-
49513033565 HoseHose
-
50513033565 HoseHose
-
51709000253 HoseHose
-
52513033565 HoseHose
-
53709000413 ROPS (roll-over protection structure)ROPS (roll-over protection structure)
-
54709000414 Fuel CapFuel Cap
-
57709000430 Flow ReducerFlow Reducer
-
58709000253 HoseHose
-
59415129501 Fuel Line 6.4 mm, MeterFuel Line 6.4 mm, Meter
-
29a709000088 Pump ModulePump Module
