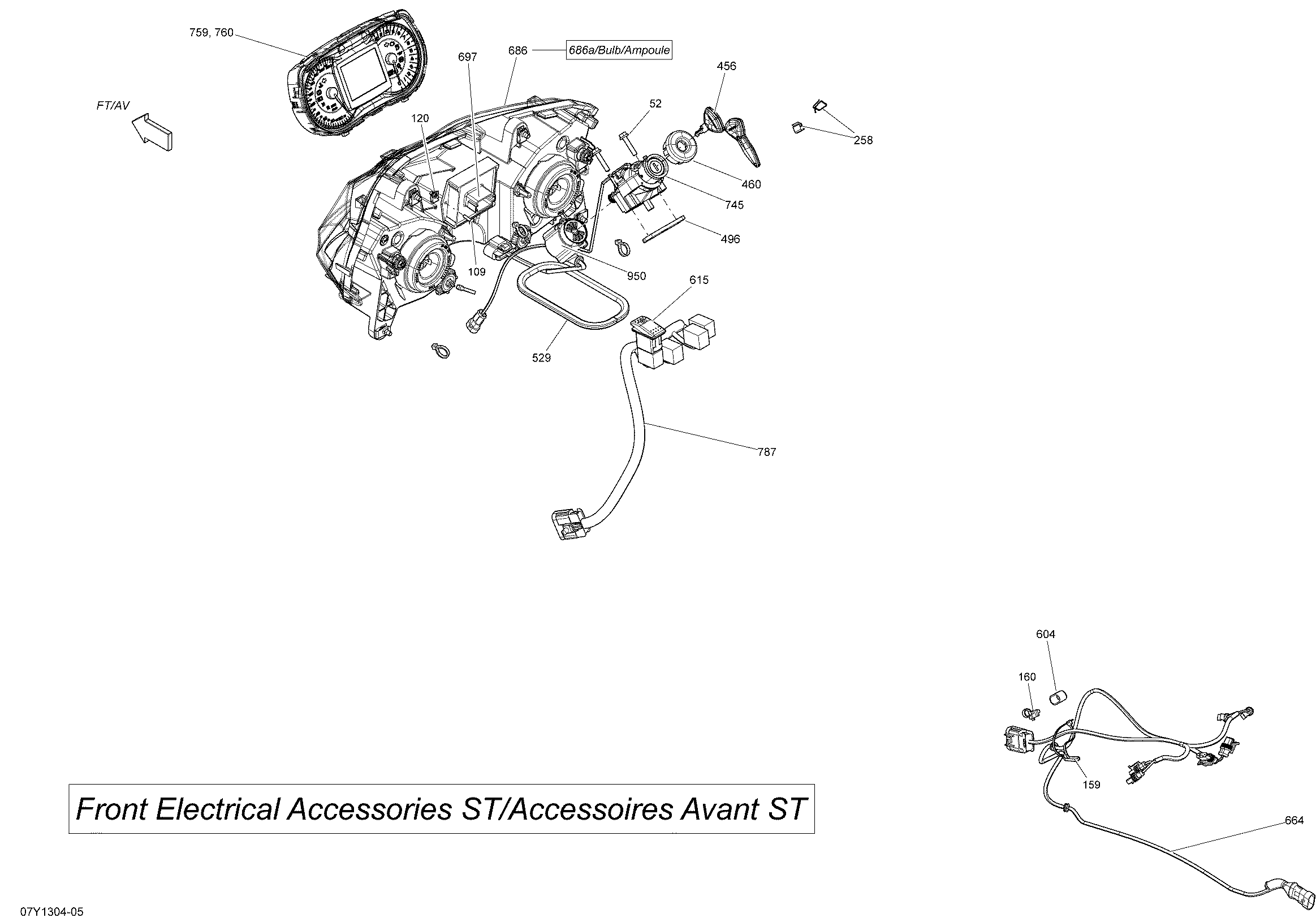

10- Electrical Accessories, Front Headlight для BRP Spyder ST_STS SE5 - 2013
-
№АртикулНазвание
-
52207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
109250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
120250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
159293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
160293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
258414227300 ClipClip
-
456710001211 KeyKey
-
460710001194 Switch CoverSwitch Cover
-
496710001365 Switch SupportSwitch Support
-
529271001530 TrimTrim
-
604710002211 Rubber Plug, 24.2 X 11.4 mmRubber Plug, 24.2 X 11.4 mm
-
615710002350 Switch, Parking BrakeSwitch, Parking Brake
-
664710002615 Cargo HarnessCargo Harness
-
686710002666 Head Light BeamHead Light Beam
-
686a219800269 BulbBulb
-
697710002758 PBM Module Ass'yPBM Module Ass'y
-
745710002968 Ignition Module SwitchIgnition Module Switch
-
759710003446 Speed Indicator Programming. Includes 759 a 760Speed Indicator Programming. Includes 759 a 760
-
760415129349 LensLens
-
787710003110 Switch HarnessSwitch Harness
-
950710003112 Kic Pentalock HarnessKic Pentalock Harness
