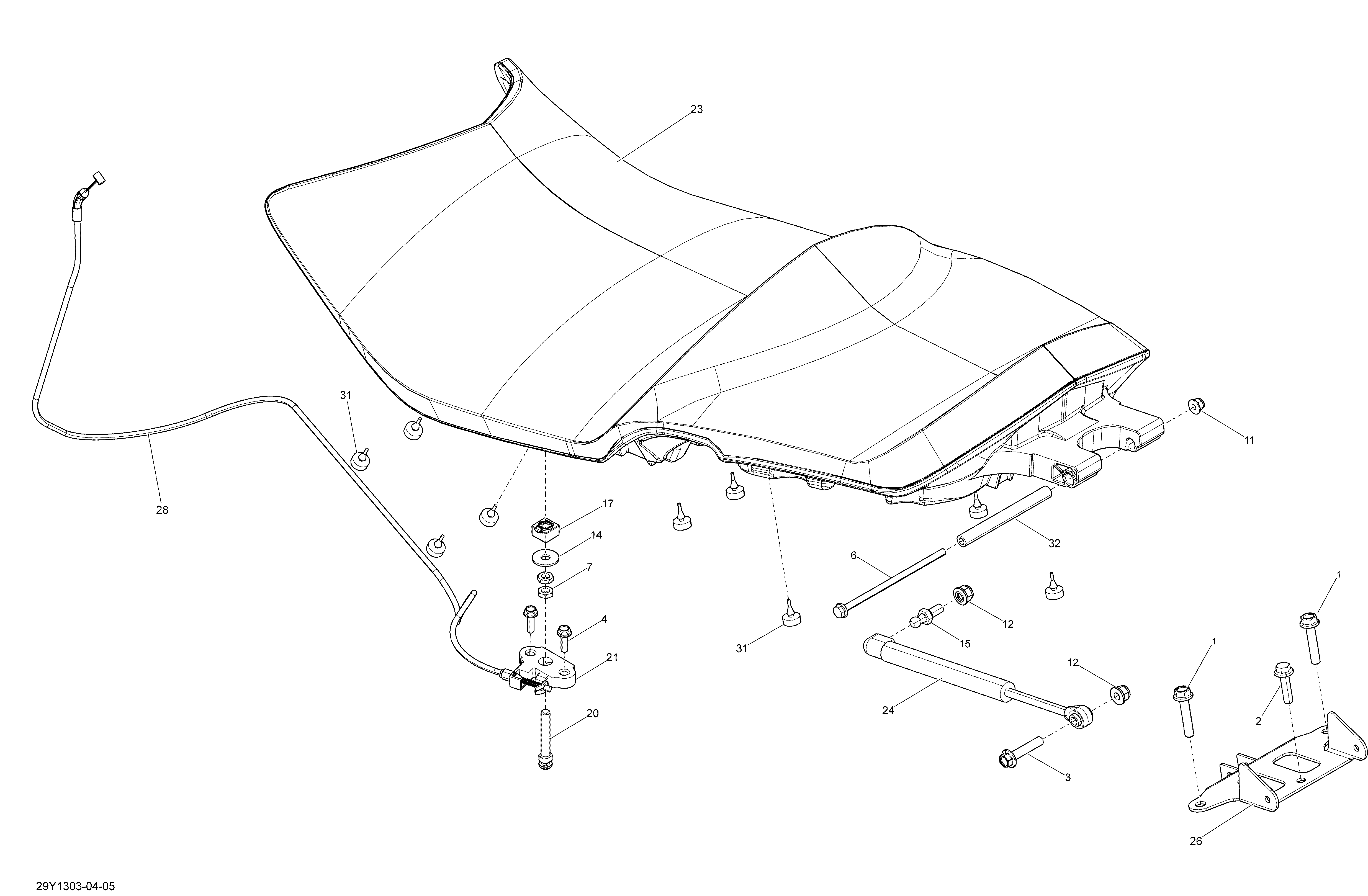

09- Seat для BRP Spyder ST_STS SE5 - 2013
-
№АртикулНазвание
-
1207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
2207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
4210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
6230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
7232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14234082410 Flat Washer 8 mmFlat Washer 8 mm
-
15250300039 Ball Head StudBall Head Stud
-
17269501387 Nut Housing Ass'yNut Housing Ass'y
-
20705002223 LugLug
-
21705005904 LatchLatch
-
23708000928 Seat Ass'y. ST-S ModelSeat Ass'y. ST-S Model
-
23708001145 Seat Ass'y. RS ModelSeat Ass'y. RS Model
-
23708001146 Seat Ass'y. RS-S ModelSeat Ass'y. RS-S Model
-
23708001157 Seat Ass'y. ST-LTD ModelSeat Ass'y. ST-LTD Model
-
24708000479 Gaz ShockGaz Shock
-
26708000510 Pivot PlatePivot Plate
-
28708000489 Cable SeatCable Seat
-
31708000759 Rubber StopperRubber Stopper
-
32708000824 Spacer BushingSpacer Bushing
