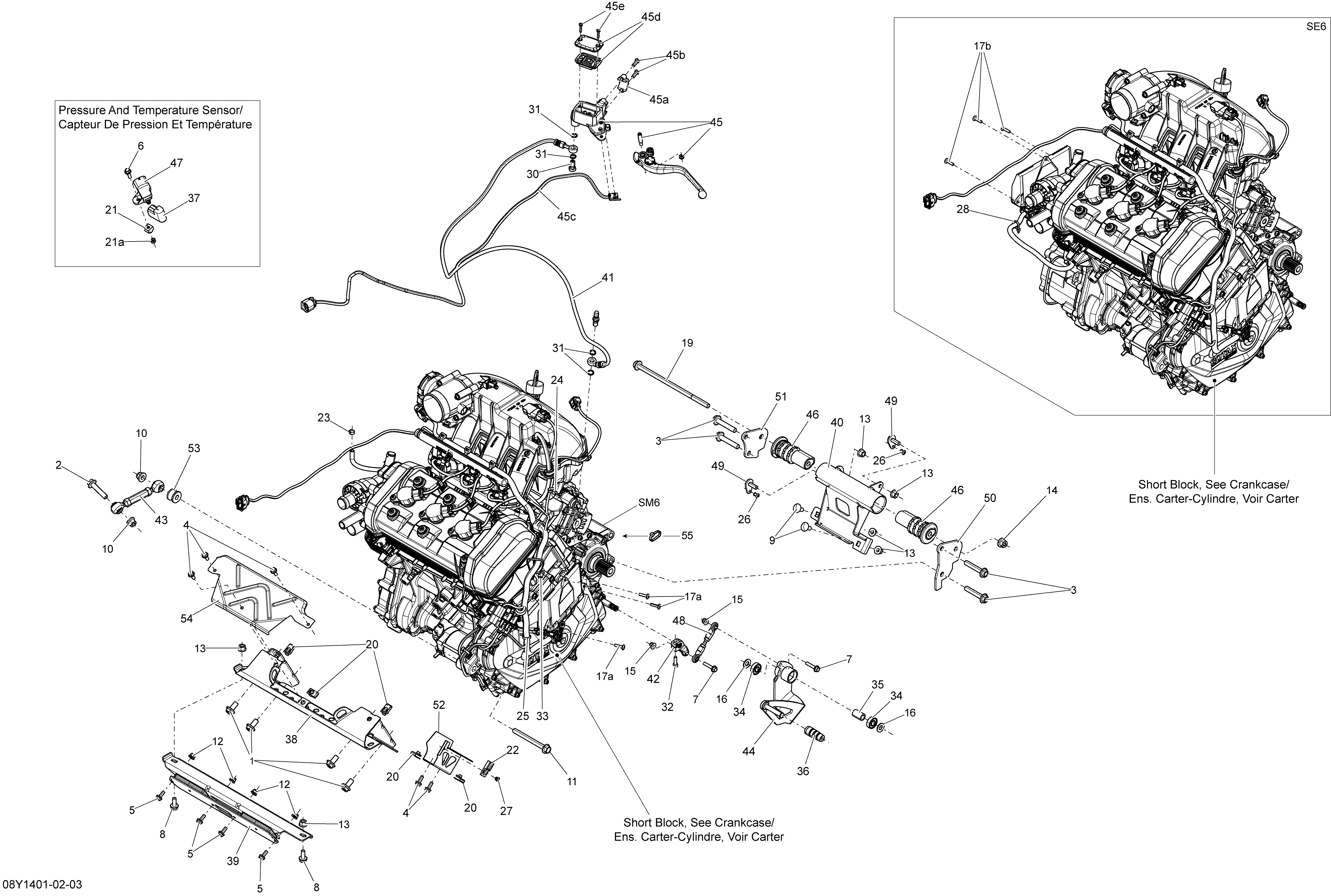

01- Engine SE6_08Y1402 для BRP Spyder RTS SE6 - 2014
-
№АртикулНазвание
-
1207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
2207504546 Hex. Flanged Screw, M10 X 45 Scotch GripHex. Flanged Screw, M10 X 45 Scotch Grip
-
3207505544 Hex. Flanged Screw M10 X 55, Scotch GripHex. Flanged Screw M10 X 55, Scotch Grip
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
9207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
10233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
11230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
14233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
17a250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
17b250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
21269500725 Nut Housing Ass'y. Includes 21 to 21aNut Housing Ass'y. Includes 21 to 21a
-
21a232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
22270000141 ClipClip
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
27390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33515175220 Tie RapTie Rap
-
37707000586 FilterFilter
-
38707000875 Front Engine SupportFront Engine Support
-
39707000876 Rubber MountRubber Mount
-
40707000877 Frame EtensionFrame Etension
-
43707000959 Connecting RodConnecting Rod
-
46707000973 Rubber MountRubber Mount
-
47707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
49707001292 AttachAttach
-
50707001293 LH Engine SupportLH Engine Support
-
51707001294 RH Engine SupportRH Engine Support
-
52707001353 Connector SupportConnector Support
-
53707001423 SpacerSpacer
-
54707601057 Upper Heat DeflectorUpper Heat Deflector
