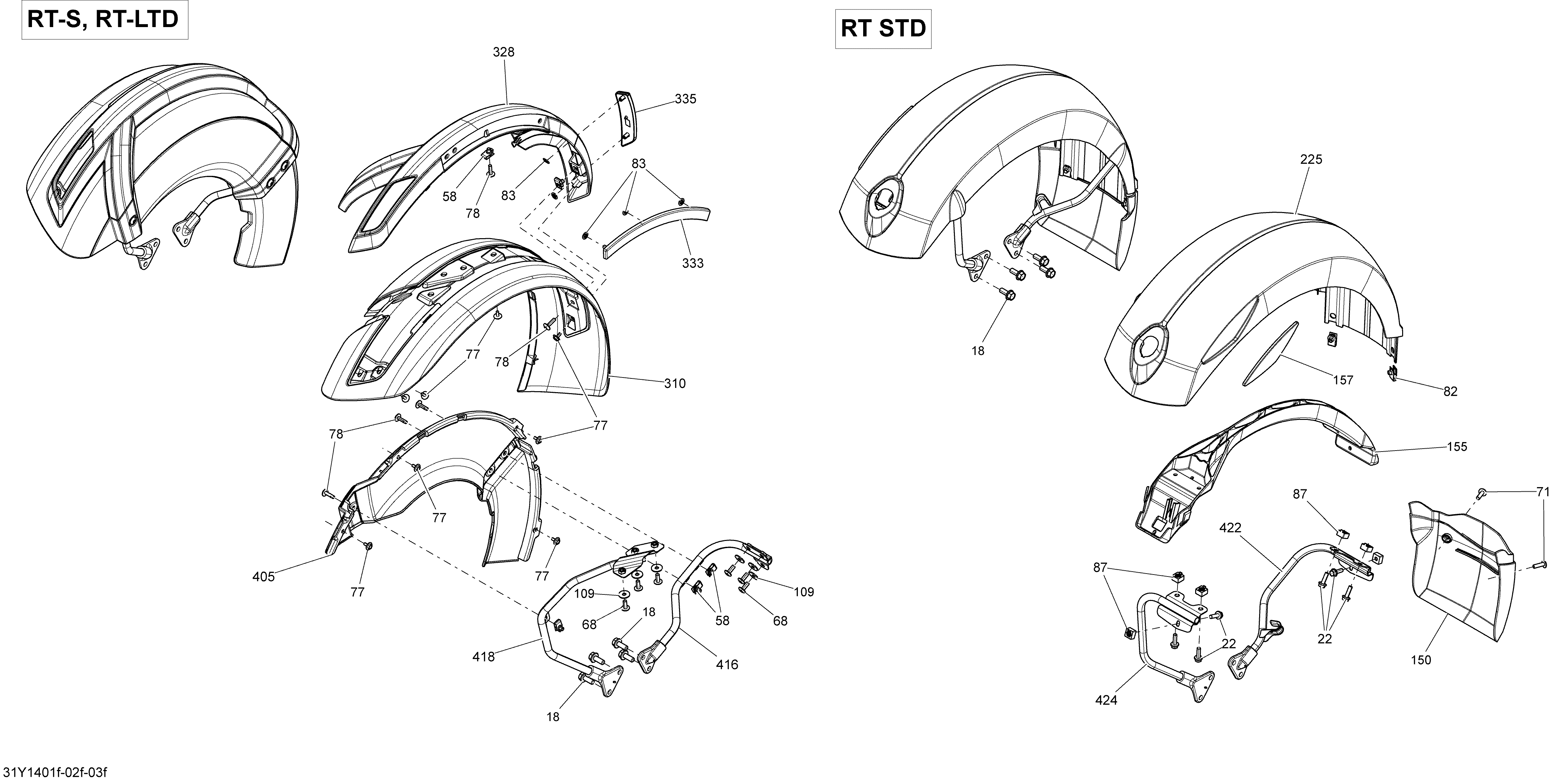

09- Body And Accessories Front Fender_31Y1402f для BRP Spyder RTS SE6 - 2014
-
№АртикулНазвание
-
18207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
58250000079 Panel Nut M5 X 0.8. Model-RT SPanel Nut M5 X 0.8. Model-RT S
-
68250000348 Torx Truss Screw M6 X 16. Model-RT STorx Truss Screw M6 X 16. Model-RT S
-
77250000585 Plastite Screw K-40 M4 X 10. Model-RT SPlastite Screw K-40 M4 X 10. Model-RT S
-
78250000586 Torx Truss M5 X 20. Model-RT STorx Truss M5 X 20. Model-RT S
-
82250100113 Panel Nut, M6 X 1.0. Model-RT SPanel Nut, M6 X 1.0. Model-RT S
-
83250100163 Pressure Nut. Model-RT SPressure Nut. Model-RT S
-
87269500725 Nut Housing Ass'yNut Housing Ass'y
-
109250200082 Flat Washer. Model-RT SFlat Washer. Model-RT S
-
310705006504 Yellow LH Front Fender. Model-Circuit Yellow MetYellow LH Front Fender. Model-Circuit Yellow Met
-
310705006505 Yellow RH Front Fender. Model-Circuit Yellow MetYellow RH Front Fender. Model-Circuit Yellow Met
-
310705008033 Cognac LH Front Fender. Model-CognacCognac LH Front Fender. Model-Cognac
-
310705008032 Cognac RH Front Fender. Model-CognacCognac RH Front Fender. Model-Cognac
-
310705008029 Timeless Black Met LH Front Fender. Model-RT S Timeless Black MetTimeless Black Met LH Front Fender. Model-RT S Timeless Black Met
-
310705008028 Timeless Black Met RH Front Fender. Model-RT S Timeless Black MetTimeless Black Met RH Front Fender. Model-RT S Timeless Black Met
-
310705006509 White LH Front Fender. Model-RT S Vegas White PearlWhite LH Front Fender. Model-RT S Vegas White Pearl
-
310705006510 RH Front Fender, White. Model-RT S Vegas White PearlRH Front Fender, White. Model-RT S Vegas White Pearl
-
328705006516 Yellow LH Front Fender Moulding. Model-Circuit Yellow MetYellow LH Front Fender Moulding. Model-Circuit Yellow Met
-
328705006517 Yellow RH Front Fender Moulding. Model-Circuit Yellow MetYellow RH Front Fender Moulding. Model-Circuit Yellow Met
-
328705008012 Cognac LH Front Fender Moulding. Model-CognacCognac LH Front Fender Moulding. Model-Cognac
-
328705008013 Cognac RH Front Fender Moulding. Model-CognacCognac RH Front Fender Moulding. Model-Cognac
-
328705008016 Timeless Black LH Fr Fender Moulding. Model-RT S Timeless Black MetTimeless Black LH Fr Fender Moulding. Model-RT S Timeless Black Met
-
328705008017 Timeless Black RH Fr Fender Moulding. Model-RT S Timeless Black MetTimeless Black RH Fr Fender Moulding. Model-RT S Timeless Black Met
-
328705006520 White LH Front Fender Moulding. Model-RT S Vegas White PearlWhite LH Front Fender Moulding. Model-RT S Vegas White Pearl
-
328705006521 White RH Front Fender Moulding. Model-RT S Vegas White PearlWhite RH Front Fender Moulding. Model-RT S Vegas White Pearl
-
333705005625 Yellow LH Reflector. Model-RT SYellow LH Reflector. Model-RT S
-
335705005667 LH Rear Reflector. Model-RT S North AmericaLH Rear Reflector. Model-RT S North America
-
335219800275 LH Rear Reflector Ass'y. Model-S Europe, Australie, Brezil, JaponLH Rear Reflector Ass'y. Model-S Europe, Australie, Brezil, Japon
-
405705007616 LH Inner Fender. Model-RT SLH Inner Fender. Model-RT S
-
405705007617 RH Inner Fender. Model-RT SRH Inner Fender. Model-RT S
-
416705008116 LH Painted Fender Rear Support. Model-RT SLH Painted Fender Rear Support. Model-RT S
-
416705008117 RH Painted Fender Rear Support. Model-RT SRH Painted Fender Rear Support. Model-RT S
-
418705005264 RH Painted Fender Front Support. Model-RT SRH Painted Fender Front Support. Model-RT S
-
418705005265 LH Painted Fender Front Support. Model-RT SLH Painted Fender Front Support. Model-RT S
