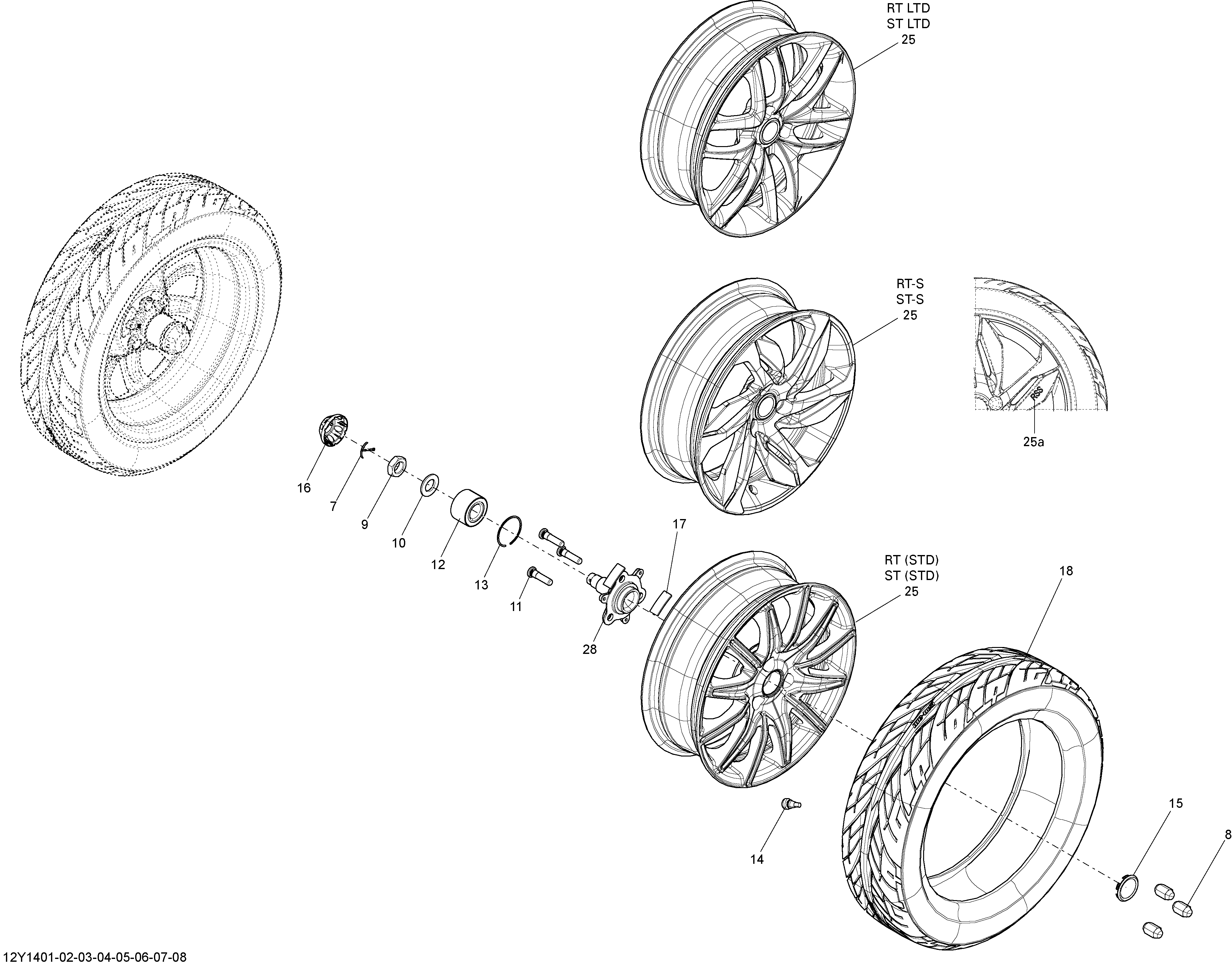

07- Drive System, Front _12Y1402 для BRP Spyder RTS SE6 - 2014
-
№АртикулНазвание
-
7250400047 Cotter PinCotter Pin
-
8250100057 Chrome Wheel Nut M12 X 1.5Chrome Wheel Nut M12 X 1.5
-
8250100155 Black Wheel Nut M12 X 1.5Black Wheel Nut M12 X 1.5
-
9250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
10250200094 Flat WasherFlat Washer
-
11250300024 Wheel Stud M12 X 1.5Wheel Stud M12 X 1.5
-
12293350040 Cone BearingCone Bearing
-
13293370019 CirclipCirclip
-
14705400193 Rim Valve With CapRim Valve With Cap
-
15705400388 Wheel CapWheel Cap
-
16705401100 Wheel CapWheel Cap
-
17705501430 Adhesive WeightAdhesive Weight
-
18706201324 Front TireFront Tire
-
25706201667 Black Front Wheel. Model-RT SBlack Front Wheel. Model-RT S
-
28706201895 Wheel Hub Ass'yWheel Hub Ass'y
