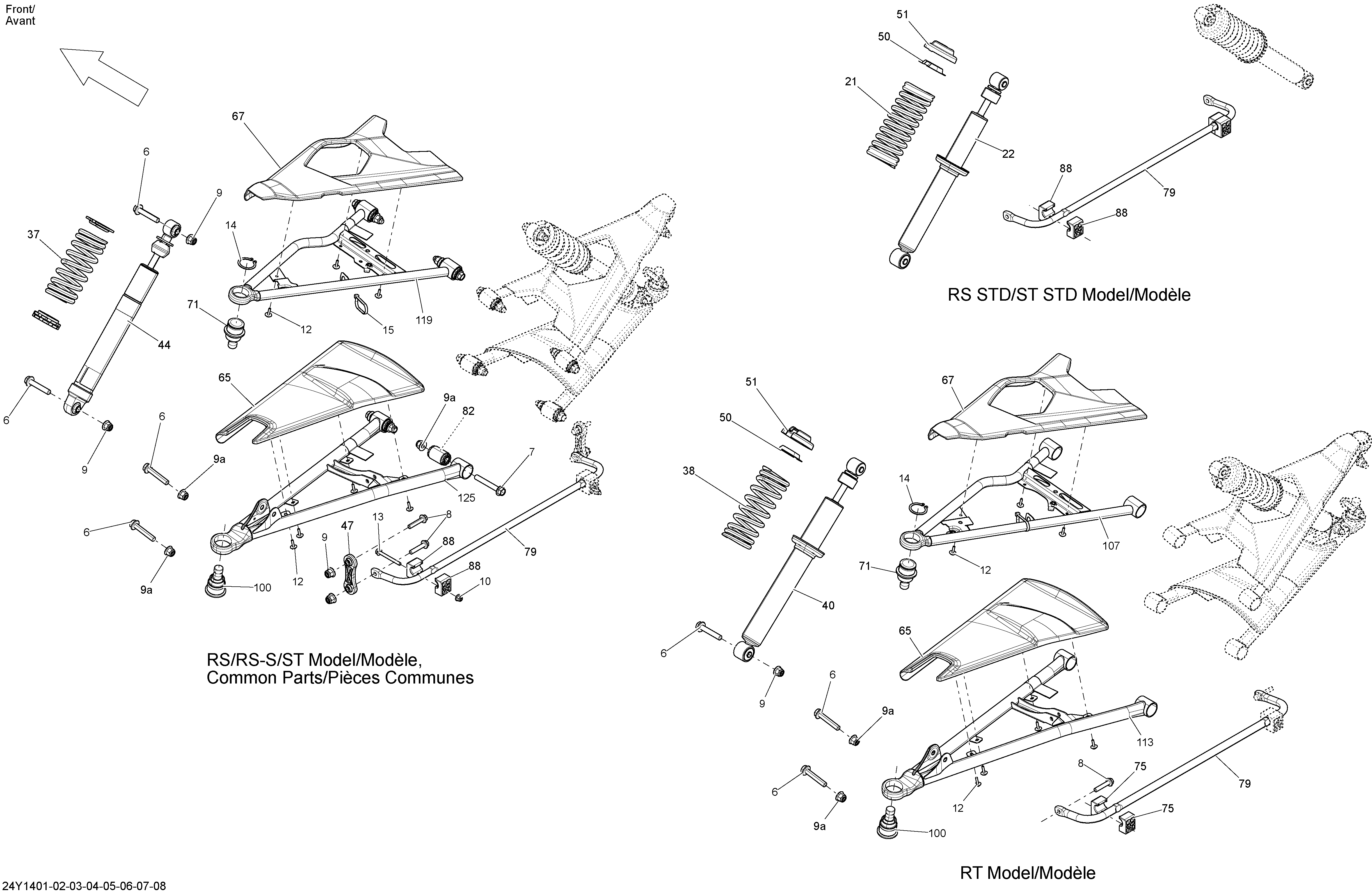

07- Suspension, Front _24Y1405 для BRP Spyder STS SM5 - 2014
-
№АртикулНазвание
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
7207607036 Hex. Flanged ScrewHex. Flanged Screw
-
8207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
10250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
13250000397 Hex. Flanged Screw DIN.6921 M6 X 60Hex. Flanged Screw DIN.6921 M6 X 60
-
14293370035 CirclipCirclip
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
21706001108 Spring. Model-ST SSpring. Model-ST S
-
22706001750 Shock. Model-ST SShock. Model-ST S
-
47706200671 Tie RodTie Rod
-
50706200785 Cap. Model-ST SCap. Model-ST S
-
51706200881 Spring Stopper. Model-ST SSpring Stopper. Model-ST S
-
65706201319 LH Lower Air DeflectorLH Lower Air Deflector
-
65706201320 RH Lower Air DeflectorRH Lower Air Deflector
-
67706201923 Cognac LH Upper Air Deflector. Model-ST S CognacCognac LH Upper Air Deflector. Model-ST S Cognac
-
67706201924 Cognac RH Upper Air Deflector. Model-ST S CognacCognac RH Upper Air Deflector. Model-ST S Cognac
-
67706201919 Steel Black LH Upper Air Deflector. Model-ST S Steel Black MetSteel Black LH Upper Air Deflector. Model-ST S Steel Black Met
-
67706201920 Steel Black RH Upper Air Deflector. Model-ST S Steel Black MetSteel Black RH Upper Air Deflector. Model-ST S Steel Black Met
-
67706201921 White Pearl LH Upper Air Deflector. Model-ST S White PearlWhite Pearl LH Upper Air Deflector. Model-ST S White Pearl
-
67706201922 White Pearl RH Upper Air Deflector. Model-ST S White PearlWhite Pearl RH Upper Air Deflector. Model-ST S White Pearl
-
67706201594 LH Upper Air Deflector. Model-ST S Yellow Met.LH Upper Air Deflector. Model-ST S Yellow Met.
-
67706201595 RH Upper Air Deflector. Model-ST S Yellow Met.RH Upper Air Deflector. Model-ST S Yellow Met.
-
71706201371 Ball JointBall Joint
-
79706201421 Sway Bar. Model-STSway Bar. Model-ST
-
82706201519 Suspension Arm BushingSuspension Arm Bushing
-
88706201545 Stabilizer Bushing. Model-STStabilizer Bushing. Model-ST
-
100706201739 Ball JointBall Joint
-
119706201735 LH Upper Arm. Model-STLH Upper Arm. Model-ST
-
119706201736 RH Upper Arm. Model-STRH Upper Arm. Model-ST
-
125706201737 LH Lower Arm. Model-STLH Lower Arm. Model-ST
-
125706201738 RH Lower Arm. Model-STRH Lower Arm. Model-ST
