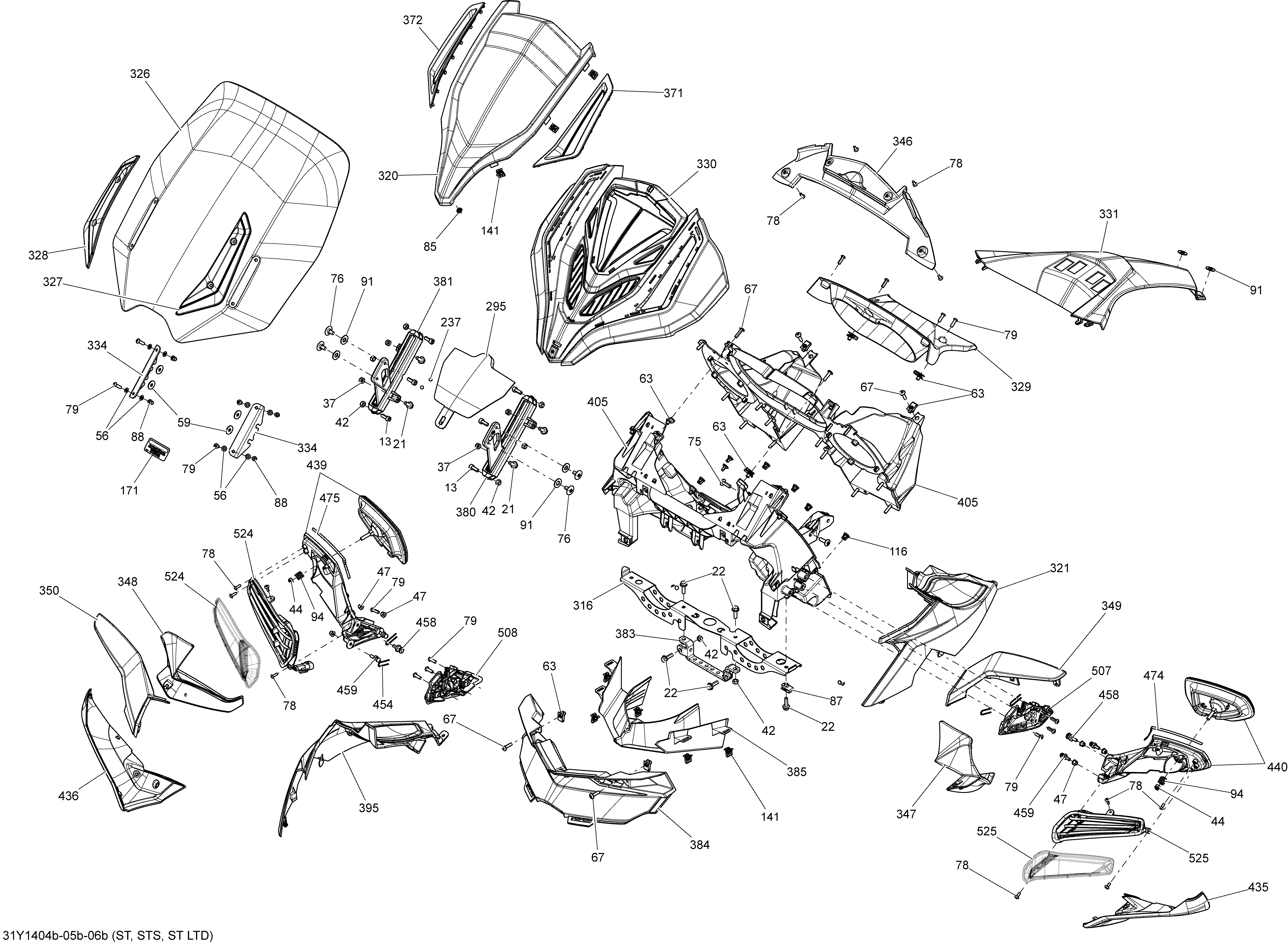

09- Body And Accessories Windshield_31Y1405b для BRP Spyder STS SM5 - 2014
-
№АртикулНазвание
-
13205061644 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
21207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
22207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
37232061414 Hex. Nut M6Hex. Nut M6
-
42232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
44232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
47233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
56234051670 Flat Washer M5Flat Washer M5
-
59234062670 Flat WasherFlat Washer
-
63250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
67250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
75250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
76250000551 Torx Screw M6 X 13.5Torx Screw M6 X 13.5
-
78250000577 Torx Screw K40 X 12Torx Screw K40 X 12
-
79250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
85250100034 Push NutPush Nut
-
87250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
88250100152 Cap Nut M5Cap Nut M5
-
91293830164 Rubber WasherRubber Washer
-
94269500453 Mirror SpringMirror Spring
-
116293750044 Tie Rap MountTie Rap Mount
-
141517302785 ClipClip
-
171704903339 Caution Decal, WindshieldCaution Decal, Windshield
-
237705001705 BallBall
-
295705003472 Guide ChartGuide Chart
-
316705004950 Cross Support ConsoleCross Support Console
-
320705004954 Upper ConsoleUpper Console
-
321705004955 LH Dash Board Ass'yLH Dash Board Ass'y
-
326705004960 WindshieldWindshield
-
327705004961 LH Windshield MouldingLH Windshield Moulding
-
328705004962 RH Windshield MouldingRH Windshield Moulding
-
329705007460 Moulding Dash BoardMoulding Dash Board
-
330705006842 Carbon Black Front ConsoleCarbon Black Front Console
-
331705004971 Center PannelCenter Pannel
-
334705004982 Windshield SupportWindshield Support
-
346705005320 Upper Console MouldingUpper Console Moulding
-
347705005323 LH Upper Air DeflectorLH Upper Air Deflector
-
348705005324 RH Upper Air DeflectorRH Upper Air Deflector
-
349705006914 Black Carbon LH Mirror CapBlack Carbon LH Mirror Cap
-
350705006915 Black Carbon RH Mirror CapBlack Carbon RH Mirror Cap
-
371705005411 LH Slider ProtectorLH Slider Protector
-
372705005412 RH Slider ProtectorRH Slider Protector
-
380705005460 LH Rail Ass'yLH Rail Ass'y
-
381705005461 RH Rail Ass'yRH Rail Ass'y
-
383705005476 Console Support BracketConsole Support Bracket
-
384705005582 Headlamp MouldingHeadlamp Moulding
-
385705005586 Center Air IntakeCenter Air Intake
-
395705005810 RH Dash Board Ass'yRH Dash Board Ass'y
-
405705006016 Console Support Ass'yConsole Support Ass'y
-
435705006479 Black Deep LH Lower ShellBlack Deep LH Lower Shell
-
436705006480 Black Deep RH Lower ShellBlack Deep RH Lower Shell
-
439705004974 RH Mirror Ass'yRH Mirror Ass'y
-
440705004973 LH Mirror Ass'yLH Mirror Ass'y
-
454705006661 SpringSpring
-
458705006733 Flat Head Stud M5Flat Head Stud M5
-
459705006734 Round Head Stud M5Round Head Stud M5
-
474293250008 GasketGasket
-
475293250008 GasketGasket
-
507705008211 LH Plate Support Ass'yLH Plate Support Ass'y
-
508705008210 RH Plate Support Ass'yRH Plate Support Ass'y
-
524710004030 RH Front FlasherRH Front Flasher
-
525710004029 LH Front FlasherLH Front Flasher
