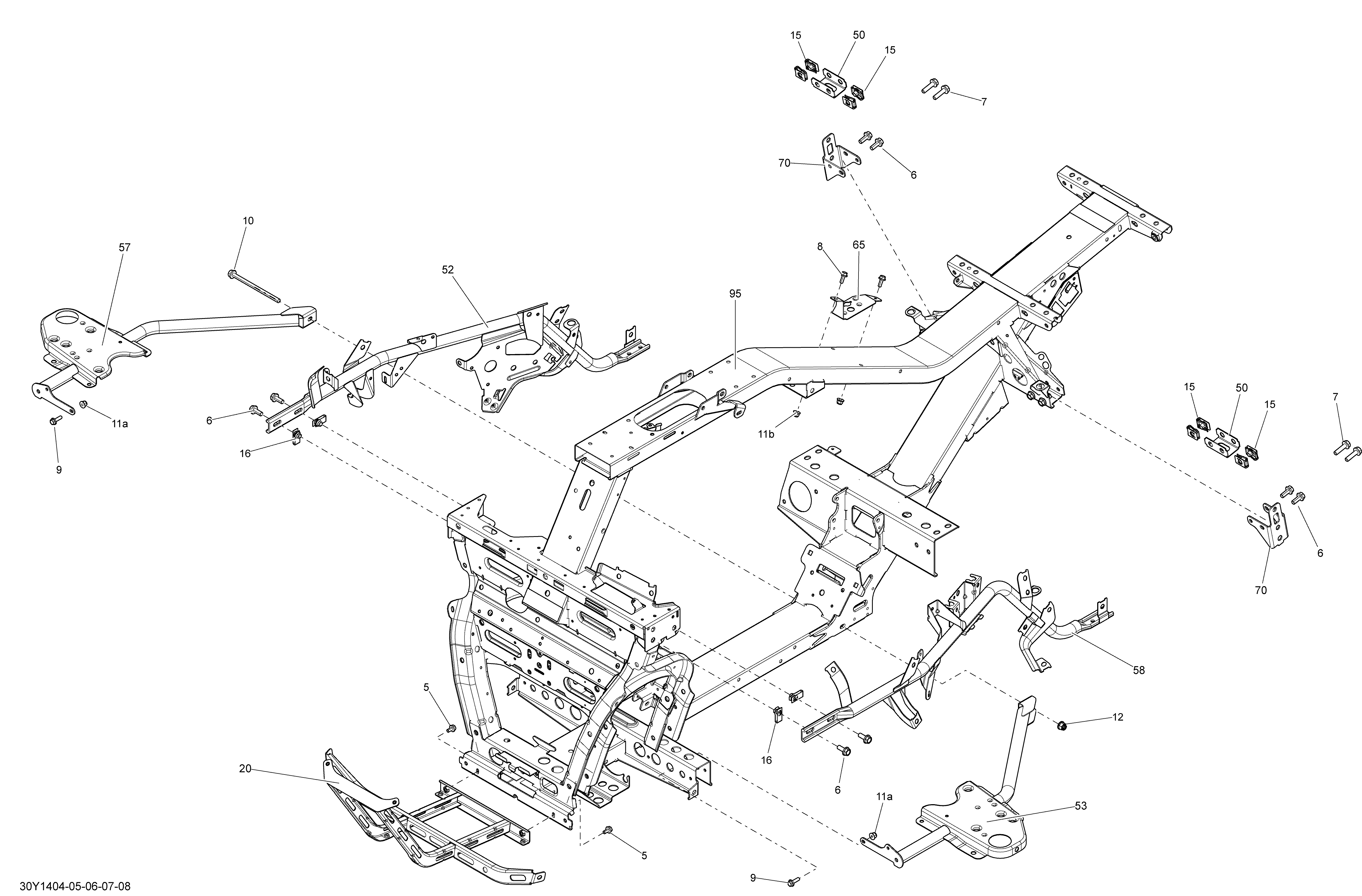

09- Frame _30Y1405 для BRP Spyder STS SM5 - 2014
-
№АртикулНазвание
-
5207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
6207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
16250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
20705201326 Front FrameFront Frame
-
50705202484 U-BracketU-Bracket
-
52705202590 RH Upper Side SupportRH Upper Side Support
-
53705202626 LH Lower Side SupportLH Lower Side Support
-
57705202680 RH Lower Side SupportRH Lower Side Support
-
58705202681 LH Upper Side SupportLH Upper Side Support
-
65705202891 Latch SupportLatch Support
-
70705202963 Rear SupportRear Support
-
95705203696 Painted Frame Ass'yPainted Frame Ass'y
-
11a250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
11b233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
