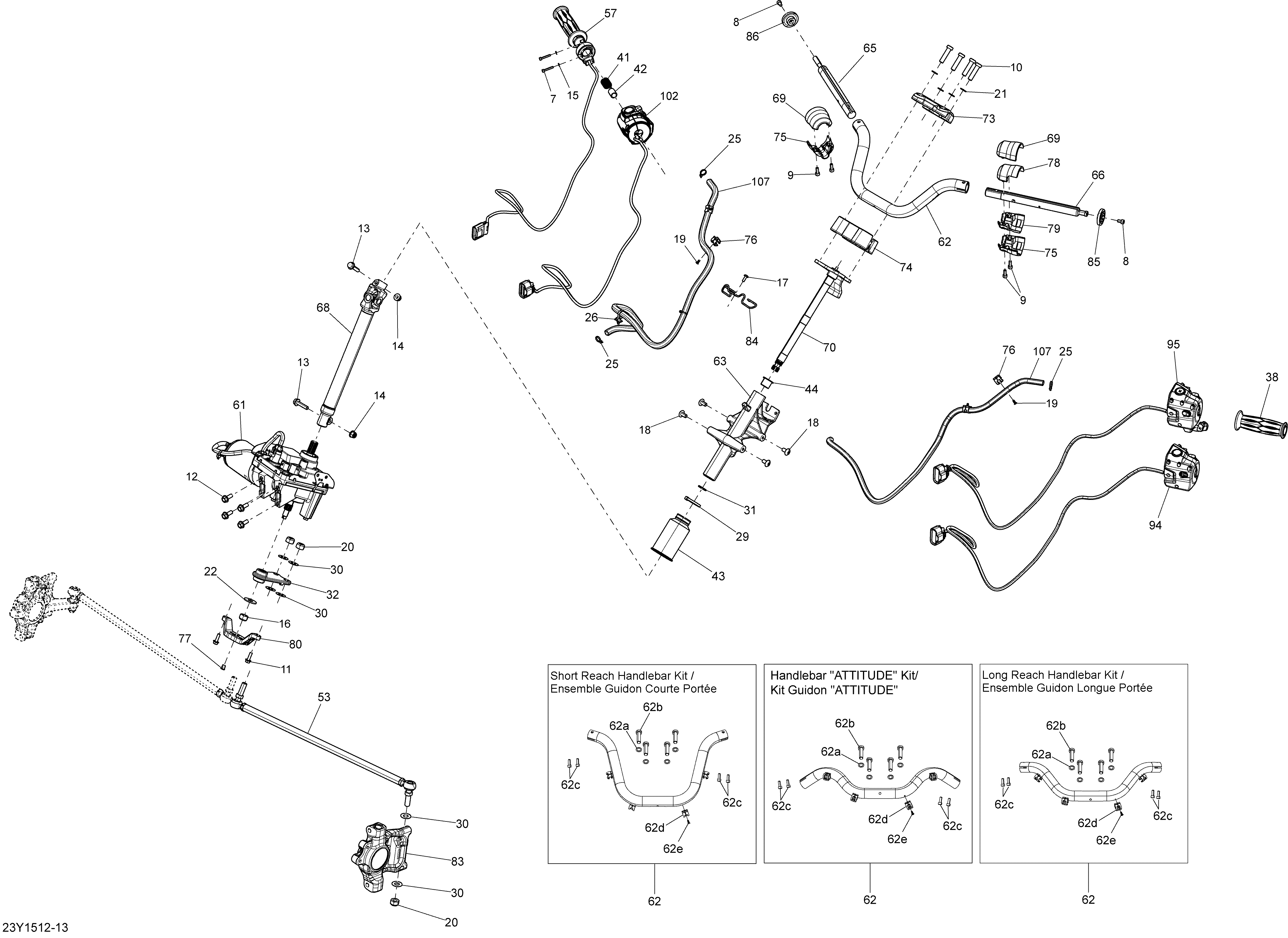

07- Steering _23Y1512 для BRP Spyder F3 SE6 - 2015
-
№АртикулНазвание
-
7205042594 Socket Screw, M4 X 25Socket Screw, M4 X 25
-
8205061094 Socket Screw, M6 X 10Socket Screw, M6 X 10
-
9205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
10250000456 Thin Socket Screw M10 X 40, Scotch GripThin Socket Screw M10 X 40, Scotch Grip
-
11207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
12207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
13207583587 Flanged Hex. Screw M8 X 35, Scotch GripFlanged Hex. Screw M8 X 35, Scotch Grip
-
14232081417 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
14a503189517 WasherWasher
-
15234040600 Flat Washer 4 mmFlat Washer 4 mm
-
16250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
17250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
18250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
19250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
20250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
21250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
22250200113 Flat Washer, 12 mmFlat Washer, 12 mm
-
25293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
26293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30250200086 Flat WasherFlat Washer
-
31709000089 O-RingO-Ring
-
32709401417 Pitman ArmPitman Arm
-
38709401054 Handle GripHandle Grip
-
41709400773 SpringSpring
-
42709400782 BushingBushing
-
43709400790 BellowsBellows
-
53709401482 Tie Rod Ass'yTie Rod Ass'y
-
57709401055 Throttle Handle GripThrottle Handle Grip
-
61709401564 Power SteeringPower Steering
-
62709401431 Carbon Black Handlebar. Factory InstalledCarbon Black Handlebar. Factory Installed
-
62219400546 Short Reach Handlebar KitShort Reach Handlebar Kit
-
62219400549 Long Reach Handlebar KitLong Reach Handlebar Kit
-
62219400551 Handlebar Attitude KitHandlebar Attitude Kit
-
62a250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
62b250000456 Thin Socket Screw M10 X 40, Scotch GripThin Socket Screw M10 X 40, Scotch Grip
-
62c205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
62d709401425 Wire GuideWire Guide
-
62e250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
63709401340 Support Ass'y. Include CushionsSupport Ass'y. Include Cushions
-
65709401343 RH Handle BarTubeRH Handle BarTube
-
66709401344 LH Handle BarTubeLH Handle BarTube
-
68709401345 Lower Column SteeringLower Column Steering
-
69709401475 Carbon Black Upper Clamp. Model-SE6Carbon Black Upper Clamp. Model-SE6
-
69709401475 Carbon Black Upper Clamp. Model-SM6Carbon Black Upper Clamp. Model-SM6
-
70709401397 Upper Column SteeringUpper Column Steering
-
73709401434 Handle ClampHandle Clamp
-
74709401437 Handle ClampHandle Clamp
-
75709401476 Carbon Black Lower Clamp. Model-SE6Carbon Black Lower Clamp. Model-SE6
-
75709401476 Carbon Black Lower Clamp. Model-SM6Carbon Black Lower Clamp. Model-SM6
-
76709401425 Wire GuideWire Guide
-
77709401474 Sensor SleaveSensor Sleave
-
78709401477 Carbon Black Upper Clamp. Model-SM6Carbon Black Upper Clamp. Model-SM6
-
79709401479 Carbon Black Lower Clamp. Model-SM6Carbon Black Lower Clamp. Model-SM6
-
80709401486 Sensor SupportSensor Support
-
83709401583 RH Knuckle Ass'yRH Knuckle Ass'y
-
83709401584 LH Knuckle Ass'yLH Knuckle Ass'y
-
84709401619 Wire GuideWire Guide
-
85709400793 LH Handlebar End PieceLH Handlebar End Piece
-
86709400765 RH Handlebar End PieceRH Handlebar End Piece
-
94710003937 LH Housing Switch. SM6LH Housing Switch. SM6
-
95710003938 LH Housing Switch. SE6LH Housing Switch. SE6
-
102710004104 RH Switch Housing. Package-STDRH Switch Housing. Package-STD
-
107710004489 Braided SleeveBraided Sleeve
