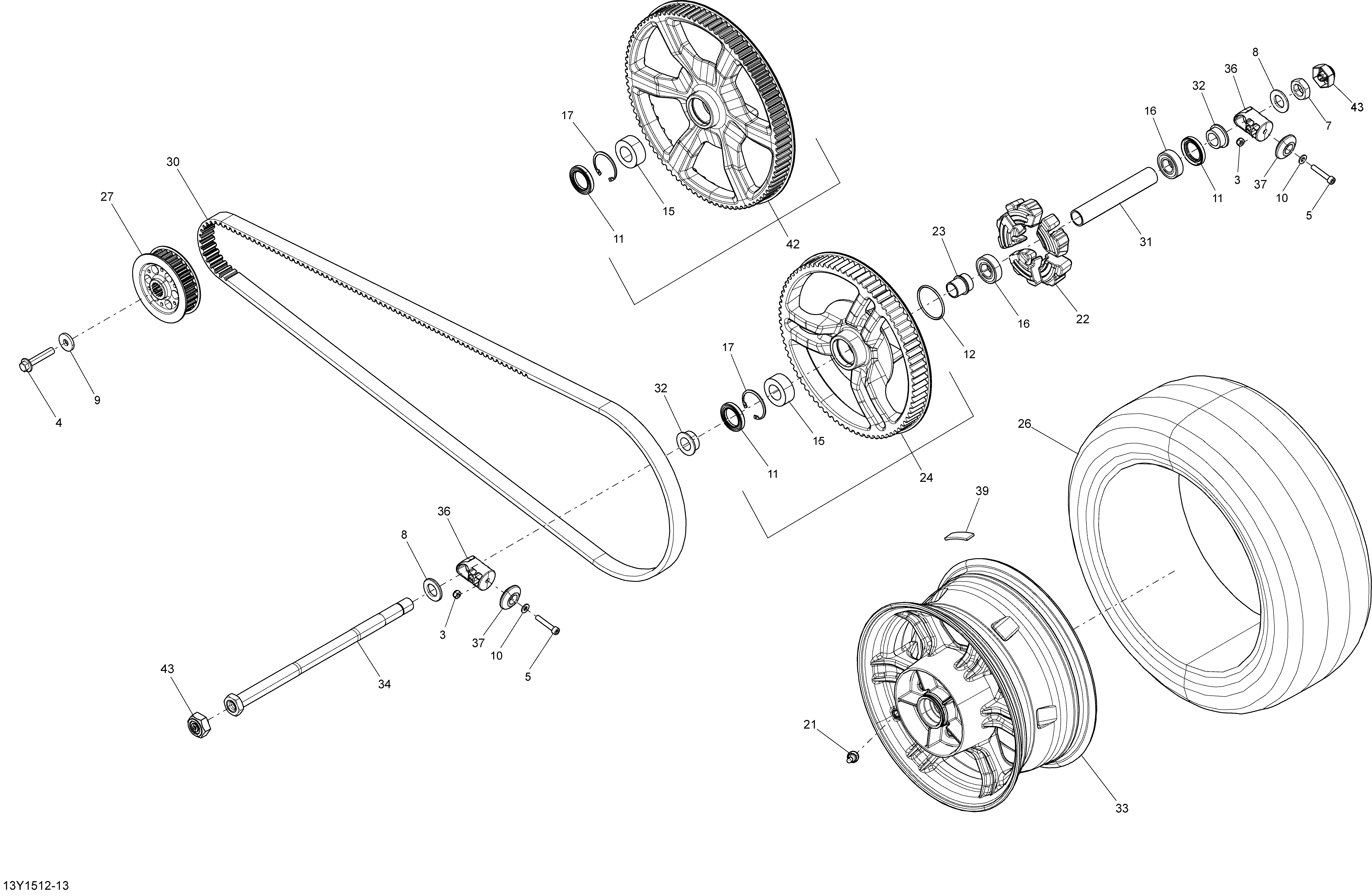

08- Drive System, Rear _13Y1512 для BRP Spyder F3 SE6 - 2015
-
№АртикулНазвание
-
3250100141 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
4250000250 Flanged Hex. Screw M12 X 65, Scotch GripFlanged Hex. Screw M12 X 65, Scotch Grip
-
5250000713 Socket Screw DIN.912Socket Screw DIN.912
-
7250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
8250200156 Flat WasherFlat Washer
-
9250200052 WasherWasher
-
10234081410 Flat Washer 8 mmFlat Washer 8 mm
-
11293200094 SealSeal
-
12293300124 O-RingO-Ring
-
15293350065 Double Row BearingDouble Row Bearing
-
16293350067 Ball BearingBall Bearing
-
17293370053 CirclipCirclip
-
21705400193 Rim Valve With CapRim Valve With Cap
-
22705500736 DamperDamper
-
23705500853 SpacerSpacer
-
24705502015 Silver Pulley Ass'y, 79 Teeth. Package-STD Australia, Brazil, Europe, JapanSilver Pulley Ass'y, 79 Teeth. Package-STD Australia, Brazil, Europe, Japan
-
26705501464 Rear Tire. Package-STDRear Tire. Package-STD
-
27705502134 Sprocket 28 ThoothSprocket 28 Thooth
-
30705501304 Drive Belt. Model-Australia, Brazil, Europe, JapanDrive Belt. Model-Australia, Brazil, Europe, Japan
-
30705502157 Drive Belt. Model-North AmericaDrive Belt. Model-North America
-
31705502093 SpacerSpacer
-
32705501602 SpacerSpacer
-
33705502089 Metallic Silver Rear Rim. Package-STDMetallic Silver Rear Rim. Package-STD
-
34705502024 Rear Axle Ass'yRear Axle Ass'y
-
36705502027 Sliding BlockSliding Block
-
37705502085 End Stop AdjusmentEnd Stop Adjusment
-
39705502106 Self Adhesive WeightSelf Adhesive Weight
-
42705502216 Silver Sprocket 89 Teeth Ass'y. Package-STD North AmericaSilver Sprocket 89 Teeth Ass'y. Package-STD North America
-
43705502248 Nut CapNut Cap
