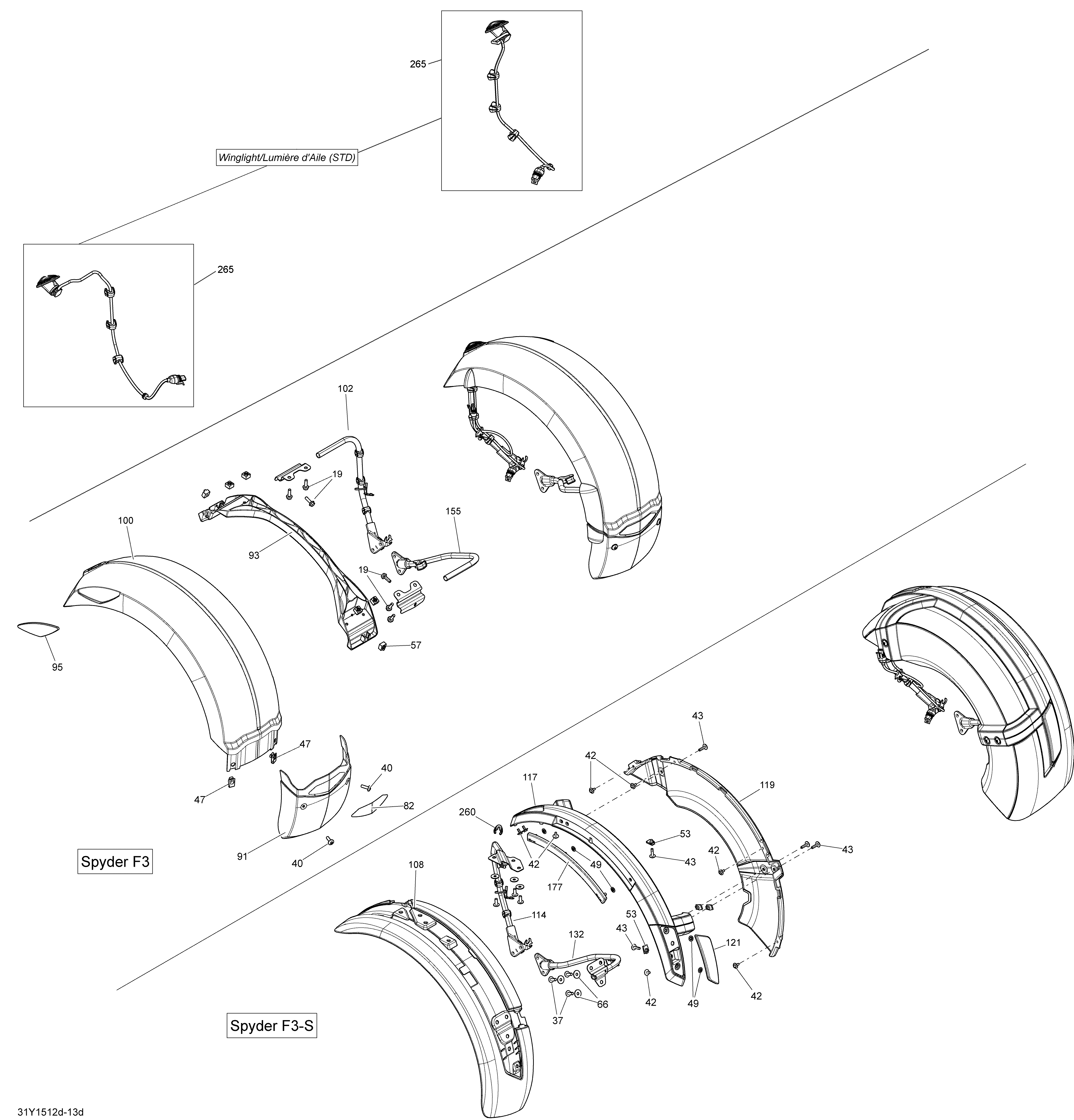

09- Body And Accessories Front Fender_31Y1512d для BRP Spyder F3 SE6 - 2015
-
№АртикулНазвание
-
19207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
37250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
40250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
42250000585 Plastite Screw K-40 M4 X 10Plastite Screw K-40 M4 X 10
-
43250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
47250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
49250100163 Pressure NutPressure Nut
-
53250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
57269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
66250200082 Flat WasherFlat Washer
-
82704901160 Reflective StripeReflective Stripe
-
91705001767 LH MudguardLH Mudguard
-
91705001768 RH MudguardRH Mudguard
-
93705002389 Central Front Fender SupportCentral Front Fender Support
-
95705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
100705007996 Steel Black RH Front FenderSteel Black RH Front Fender
-
100705007994 Steel Black LH Front FenderSteel Black LH Front Fender
-
102705003456 LH Fender Front SupportLH Fender Front Support
-
102705003457 RH Fender Front SupportRH Fender Front Support
-
155705008122 LH Painted Fender Rear SupportLH Painted Fender Rear Support
-
155705008123 RH Painted Fender Rear SupportRH Painted Fender Rear Support
-
260710001452 Wire BracketWire Bracket
-
265710003295 Position LightPosition Light
