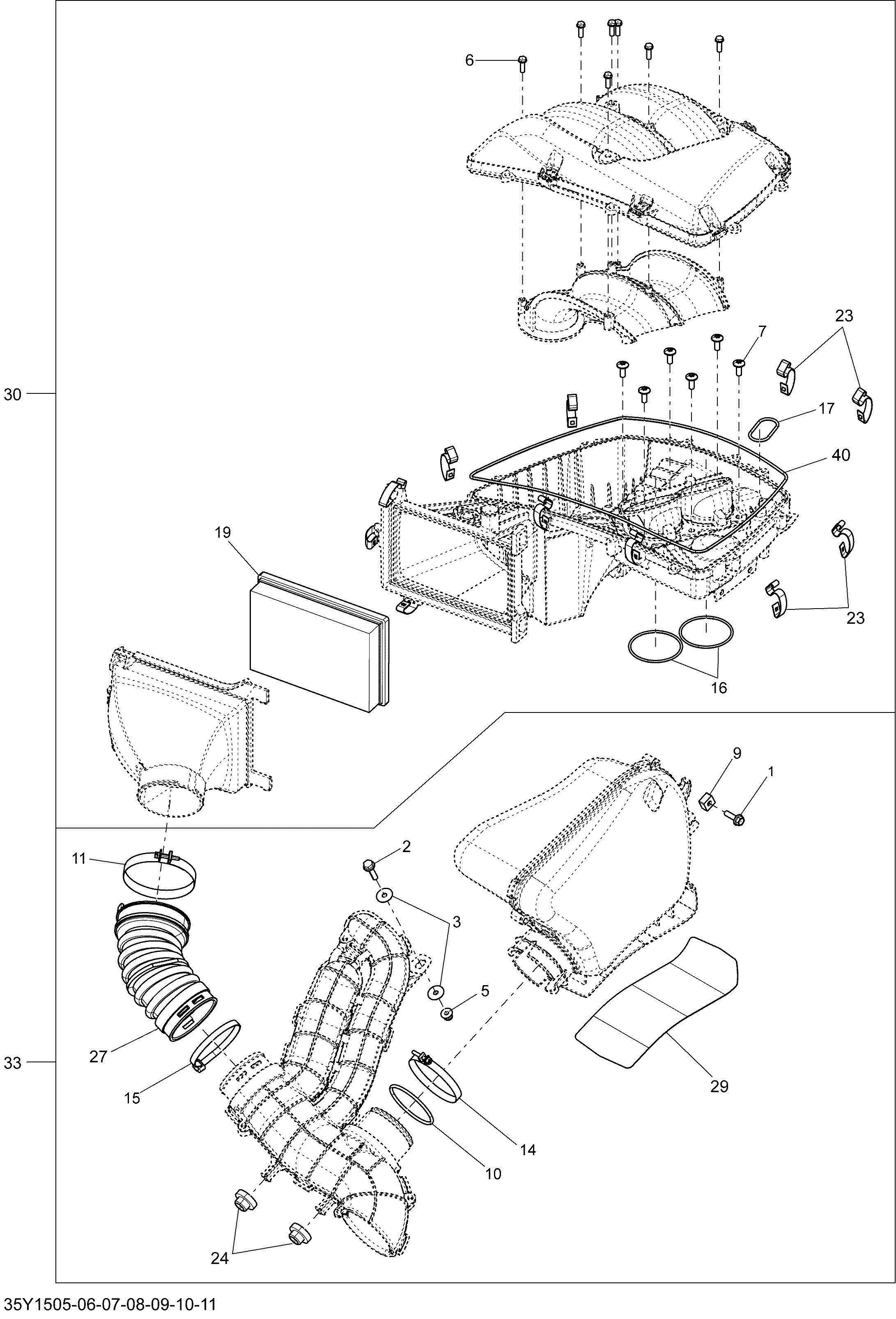

02- Air Intake _35Y1511 для BRP Spyder RSS Special Series SE5 - 2015
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3224060201 Flat WasherFlat Washer
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6243141680 Hex. Screw M4.8 X 1.8Hex. Screw M4.8 X 1.8
-
7250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
9269500725 Nut Housing Ass'yNut Housing Ass'y
-
10293300124 O-RingO-Ring
-
11293650152 Gemi ClampGemi Clamp
-
14508000346 Gemi ClampGemi Clamp
-
15509000165 Tie RapTie Rap
-
16707800198 O RingO Ring
-
17707800491 GasketGasket
-
19707800306 Air FilterAir Filter
-
23707800342 Cover RetainerCover Retainer
-
24707800347 GrommetGrommet
-
29707800464 Heat Shield FoilHeat Shield Foil
-
30707800466 Air Intake Ass'yAir Intake Ass'y
-
33707800472 Resonator A'ssyResonator A'ssy
-
40707800491 GasketGasket
