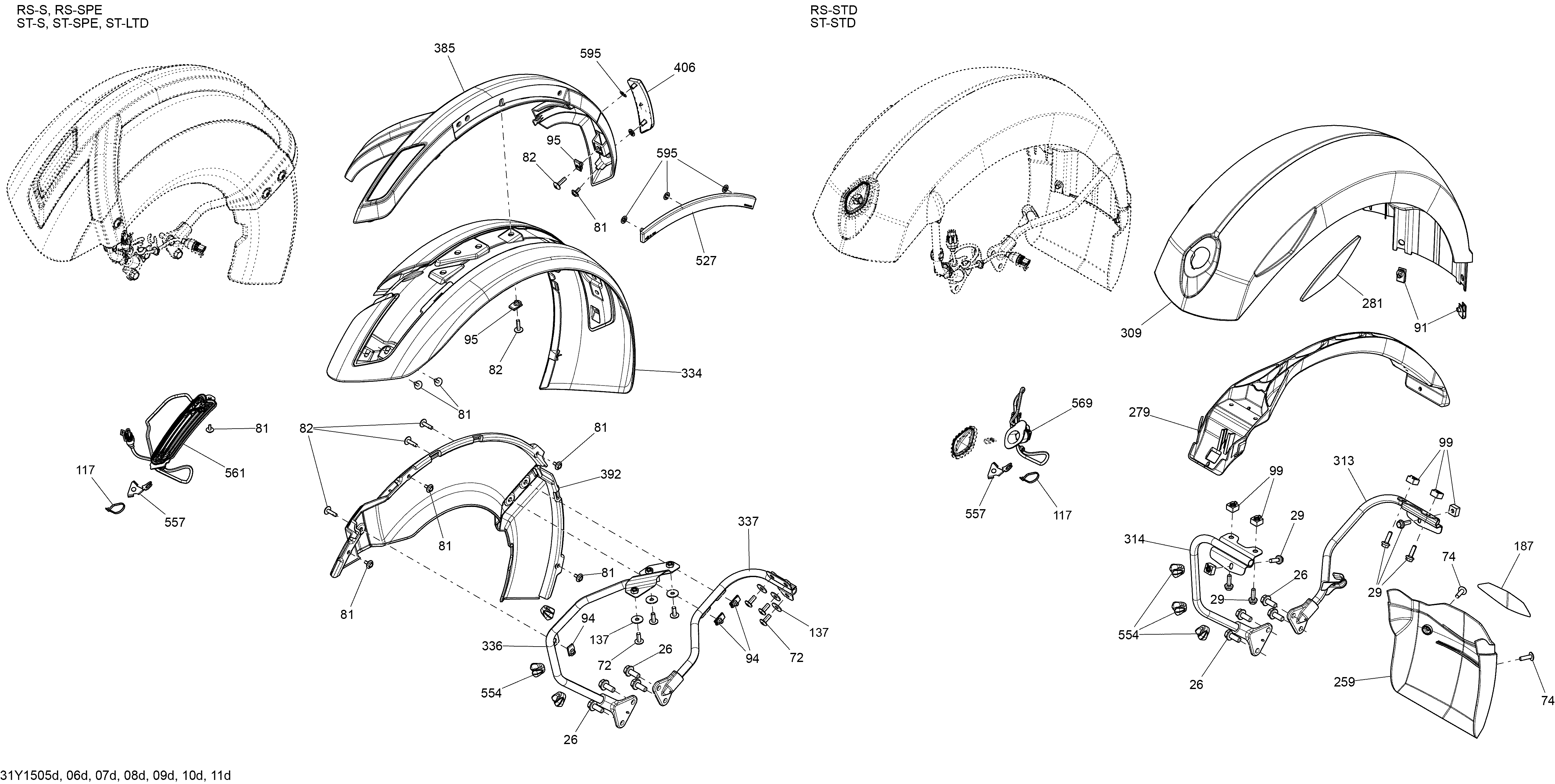

09- Body And Accessories Front Fender_31Y1511d для BRP Spyder RSS Special Series SE5 - 2015
-
№АртикулНазвание
-
26207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
72250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
81250000585 Plastite Screw K-40 M4 X 10Plastite Screw K-40 M4 X 10
-
82250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
94250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
95250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
117293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
137250200082 Flat WasherFlat Washer
-
334705008026 Steel Black RH Front FenderSteel Black RH Front Fender
-
334705008027 Steel Black LH Front FenderSteel Black LH Front Fender
-
336705005264 RH Painted Fender Front SupportRH Painted Fender Front Support
-
336705005265 LH Painted Fender Front SupportLH Painted Fender Front Support
-
337705008116 LH Painted Fender Rear SupportLH Painted Fender Rear Support
-
337705008117 RH Painted Fender Rear SupportRH Painted Fender Rear Support
-
385705008010 Carbon Black LH Front Fender MouldingCarbon Black LH Front Fender Moulding
-
385705008011 Carbon Black RH Front Fender MouldingCarbon Black RH Front Fender Moulding
-
392705007616 LH Inner FenderLH Inner Fender
-
392705007617 RH Inner FenderRH Inner Fender
-
406219800275 LH Rear Reflector Ass'y. Model-Autralia, Brezil, EuropeLH Rear Reflector Ass'y. Model-Autralia, Brezil, Europe
-
406219800276 RH Rear Reflector Ass'y. Model-Autralia, Brezil, EuropeRH Rear Reflector Ass'y. Model-Autralia, Brezil, Europe
-
406705005667 LH Rear Reflector. Model- North AmericaLH Rear Reflector. Model- North America
-
406705005949 RH Rear Reflector. Model- North AmericaRH Rear Reflector. Model- North America
-
527705008661 Yellow LH ReflectorYellow LH Reflector
-
527705008662 Yellow RH ReflectorYellow RH Reflector
-
554710001452 Wire BracketWire Bracket
-
557710002018 RH Wire SupportRH Wire Support
-
557710002019 LH Wire SupportLH Wire Support
-
561710004032 LH Position LightLH Position Light
-
561710004033 RH Position LightRH Position Light
-
595250100163 Pressure NutPressure Nut
