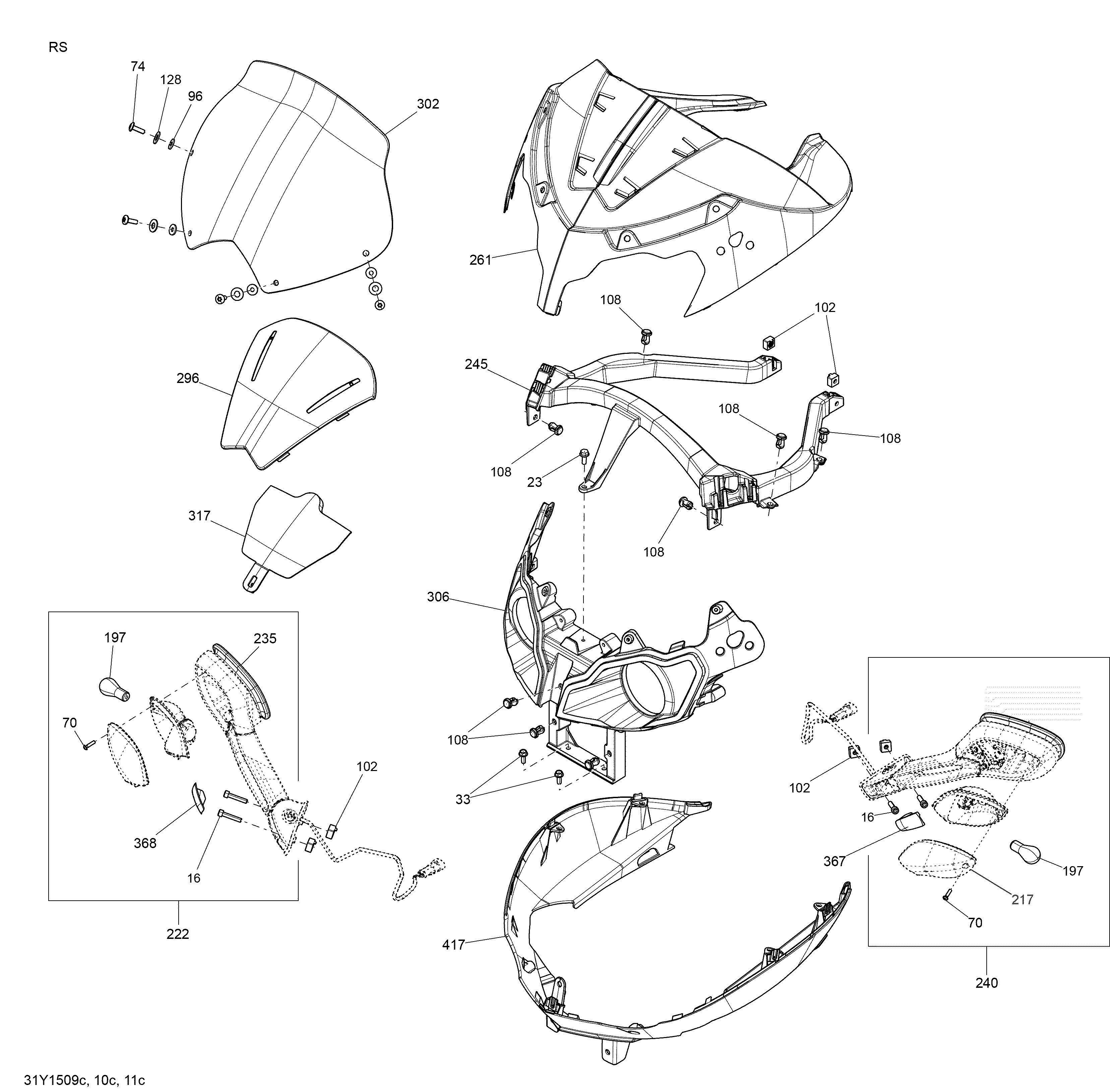

09- Body And Accessories Windshield_31Y1511c для BRP Spyder RSS Special Series SE5 - 2015
-
№АртикулНазвание
-
16250000417 Allen Screw M6 X 30Allen Screw M6 X 30
-
23207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
33210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
47232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
70219800049 Screw M3.9 X 19Screw M3.9 X 19
-
74250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
96250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
102269500725 Nut Housing Ass'yNut Housing Ass'y
-
108293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
128234062670 Flat WasherFlat Washer
-
197219800046 Bulb 12V 21W, AmberBulb 12V 21W, Amber
-
217219800047 LH Mirror LensLH Mirror Lens
-
222705005575 RH Mirror Ass'yRH Mirror Ass'y
-
235219800048 RH Mirror LensRH Mirror Lens
-
240705005574 LH Mirror Ass'yLH Mirror Ass'y
-
245705001548 Console SupportConsole Support
-
261705002082 Upper ConsoleUpper Console
-
296705002712 Upper Console DeflectorUpper Console Deflector
-
302219800077 WindshieldWindshield
-
306705004795 Black Upper HeadlampBlack Upper Headlamp
-
317705009360 Guide ChartGuide Chart
-
367705002704 LH Mirror CapLH Mirror Cap
-
368705002705 RH Mirror CapRH Mirror Cap
-
417705005882 Lower ConsoleLower Console
-
502705007853 Center PannelCenter Pannel
-
523705005574 LH Mirror Ass'yLH Mirror Ass'y
-
524705005575 RH Mirror Ass'yRH Mirror Ass'y
