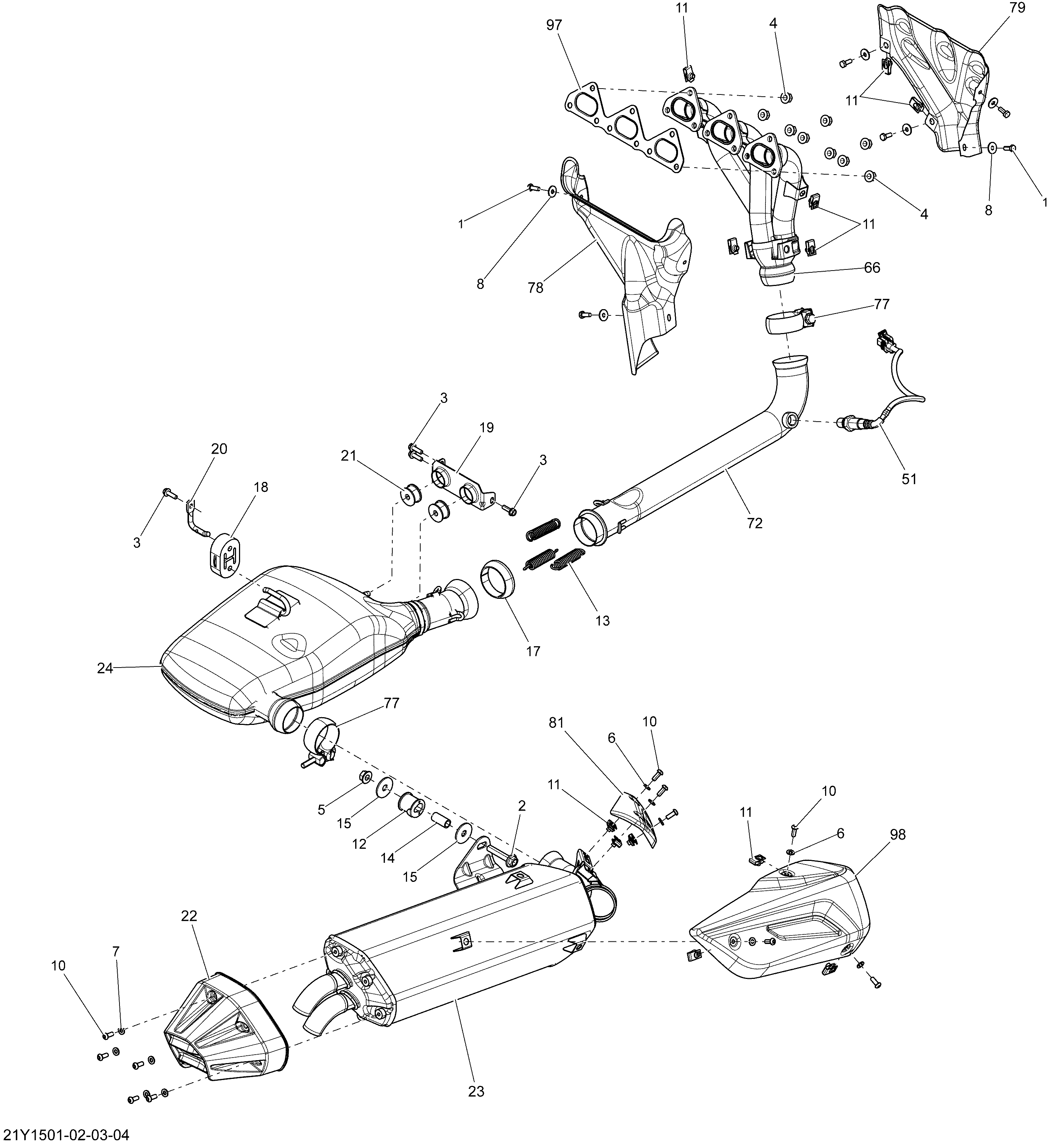

01- Exhaust System _21Y1503 для BRP Spyder RT Limited SE6 - 2015
-
№АртикулНазвание
-
1207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
2207505046 Hex. Flanged Screw M10 X 50, Scotch GripHex. Flanged Screw M10 X 50, Scotch Grip
-
3210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
4233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
6234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
10250000437 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12293830162 Anti-Vibration RubberAnti-Vibration Rubber
-
13415107100 SpringSpring
-
14503189282 BushingBushing
-
15506150000 Washer 10 mmWasher 10 mm
-
17514054174 Exhaust GasketExhaust Gasket
-
18707600638 Rubber BumperRubber Bumper
-
19707600661 Front BracketFront Bracket
-
20707600666 Retaining RodRetaining Rod
-
21707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
22707600950 Chrome Muffler End CapChrome Muffler End Cap
-
23707601342 Chrome Muffler Ass'yChrome Muffler Ass'y
-
24707600793 Primary MufflerPrimary Muffler
-
51707600872 Oxygen SensorOxygen Sensor
-
66707600937 Exhaust ManifoldExhaust Manifold
-
72707600942 Exhaust Tuned PipeExhaust Tuned Pipe
-
77707600980 Exhaust ClampExhaust Clamp
-
78707601028 Inner Heat DeflectorInner Heat Deflector
-
79707601029 External Heat DeflectorExternal Heat Deflector
-
81707601054 Carbon Black Heat ShieldCarbon Black Heat Shield
-
97707601257 Exhaust SealExhaust Seal
-
98707601383 Chrome Heat ShieldChrome Heat Shield
