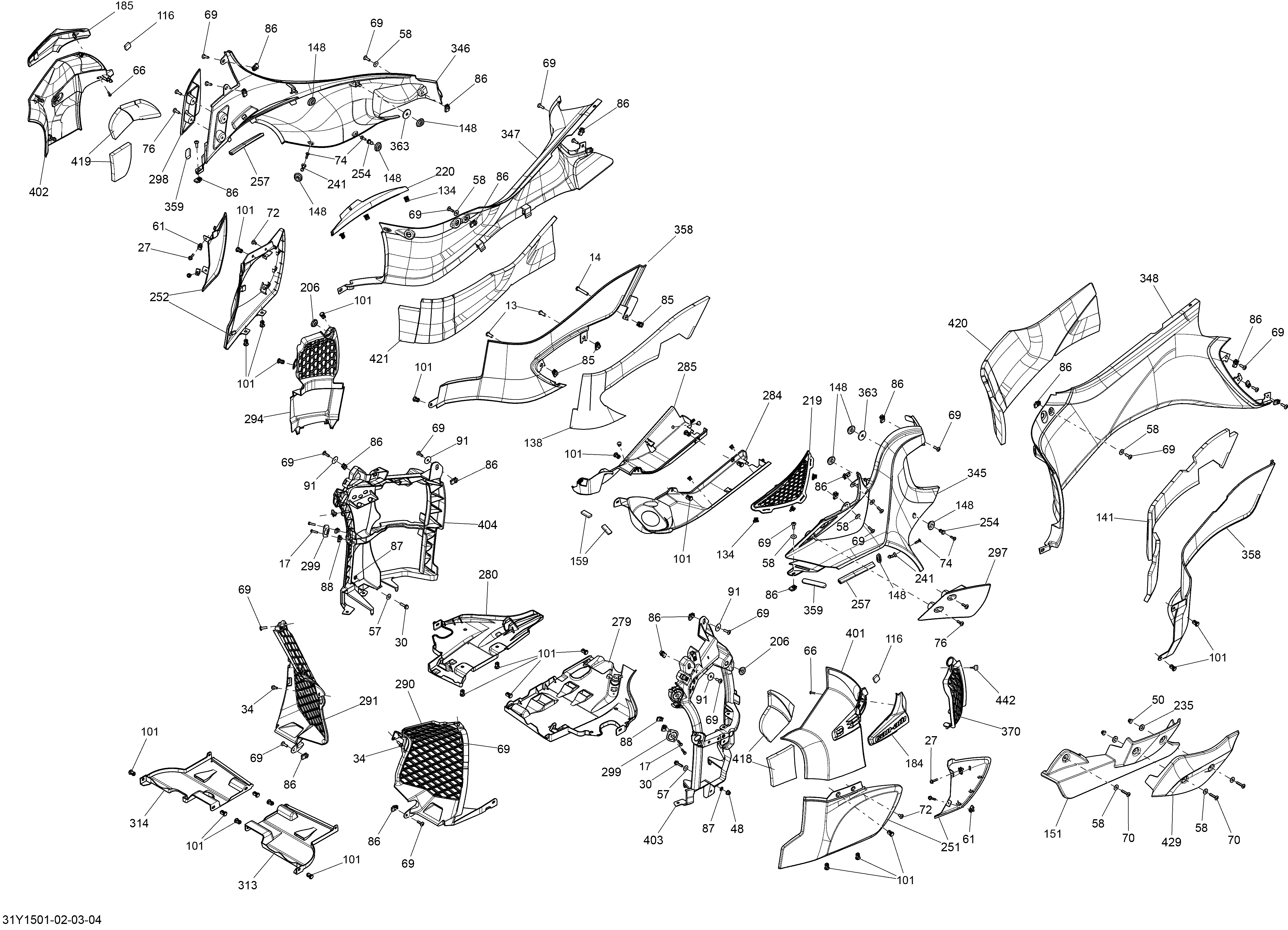

09- Body And Accessories _31Y1503 для BRP Spyder RT Limited SE6 - 2015
-
№АртикулНазвание
-
13205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
14205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
17207152060 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
27207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
30207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
34210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
48233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
57234062410 Flat Washer 6 mmFlat Washer 6 mm
-
58234062670 Flat WasherFlat Washer
-
61250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
66250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
69250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
70250000371 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
72250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
74250000459 Torx Screw, K50X16Torx Screw, K50X16
-
76250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
85250100111 Panel Nut M8Panel Nut M8
-
86250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
87250100163 Pressure NutPressure Nut
-
91250200029 Washer M6Washer M6
-
101293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
116293830143 Rubber PadRubber Pad
-
134517302785 ClipClip
-
138518324756 RH Lower Panel Foam. Model-Australia, BrezilRH Lower Panel Foam. Model-Australia, Brezil
-
141518327490 LH Lower Panel Foam. Model-Australia, BrezilLH Lower Panel Foam. Model-Australia, Brezil
-
148705000321 Oval WasherOval Washer
-
151705002092 Lower Belt GuardLower Belt Guard
-
159293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
184219400195 Chrome Side Panel Cap KitChrome Side Panel Cap Kit
-
185219400195 Chrome Side Panel Cap KitChrome Side Panel Cap Kit
-
206705003264 GrommetGrommet
-
219705003385 LH Upper Side Panel GrillLH Upper Side Panel Grill
-
220705003386 RH Upper Side Panel GrillRH Upper Side Panel Grill
-
235705003696 Adhesive SpacerAdhesive Spacer
-
241705003746 Angled KnobAngled Knob
-
251705003759 LH Water Deflector Ass'yLH Water Deflector Ass'y
-
252705003760 RH Water Deflector Ass'yRH Water Deflector Ass'y
-
254705003842 KnobKnob
-
257293200149 Neoprene SealNeoprene Seal
-
279705004610 LH Deflector PannelLH Deflector Pannel
-
280705004611 RH Deflector PannelRH Deflector Pannel
-
284705004631 LH Tank Cover Ass'yLH Tank Cover Ass'y
-
285705004632 RH Tank Cover Ass'yRH Tank Cover Ass'y
-
290705004789 LH Radiatior MouldingLH Radiatior Moulding
-
291705004790 RH Radiatior MouldingRH Radiatior Moulding
-
294705004803 RH Side GrillRH Side Grill
-
297705004924 LH Lower Air DeflectorLH Lower Air Deflector
-
298705004925 RH Lower Air DeflectorRH Lower Air Deflector
-
299705005055 Grommet Ass'yGrommet Ass'y
-
313705005438 LH Skid PlateLH Skid Plate
-
314705005439 RH Skid PlateRH Skid Plate
-
345705006168 White LH Upper Panel. Model-Vegas White PearlWhite LH Upper Panel. Model-Vegas White Pearl
-
345705006329 Yellow LH Upper Panel. Model-Circuit Yellow MetYellow LH Upper Panel. Model-Circuit Yellow Met
-
345705008728 Steel Black Met LH Upper Panel. Model-Steel Black MetSteel Black Met LH Upper Panel. Model-Steel Black Met
-
345705008729 Pearl Red LH Upper Panel. Model-Intense Red PearlPearl Red LH Upper Panel. Model-Intense Red Pearl
-
346705006167 White RH Upper Panel. Model-Vegas White PearlWhite RH Upper Panel. Model-Vegas White Pearl
-
346705006320 Yellow RH Upper Panel. Model-Circuit Yellow MetYellow RH Upper Panel. Model-Circuit Yellow Met
-
346705008730 Steel Black Met RH Upper Panel. Model-Steel Black MetSteel Black Met RH Upper Panel. Model-Steel Black Met
-
346705008731 Pearl Red RH Upper Panel. Model-Intense Red PearlPearl Red RH Upper Panel. Model-Intense Red Pearl
-
347705006177 White RH Upper Lateral Panel. Model-Vegas White PearlWhite RH Upper Lateral Panel. Model-Vegas White Pearl
-
347705006340 Yellow RH Upper Lateral Panel. Model-Circuit Yellow MetYellow RH Upper Lateral Panel. Model-Circuit Yellow Met
-
347705008734 Steel Black Met RH Upper Lateral Panel. Model-Steel Black MetSteel Black Met RH Upper Lateral Panel. Model-Steel Black Met
-
347705008735 Pearl Red RH Upper Lateral Panel. Model-Intense Red PearlPearl Red RH Upper Lateral Panel. Model-Intense Red Pearl
-
348705006178 White LH Upper Lateral Panel. Model-Vegas White PearlWhite LH Upper Lateral Panel. Model-Vegas White Pearl
-
348705006341 Yellow LH Upper Lateral Panel. Model-Circuit Yellow MetYellow LH Upper Lateral Panel. Model-Circuit Yellow Met
-
348705008732 Steel Black Met LH Upper Lateral Panel. Model-Steel Black MetSteel Black Met LH Upper Lateral Panel. Model-Steel Black Met
-
348705008733 Pearl Red LH Upper Lateral Panel. Model-Intense Red PearlPearl Red LH Upper Lateral Panel. Model-Intense Red Pearl
-
358705006820 LH Lower PannelLH Lower Pannel
-
358705007736 RH Lower PannelRH Lower Pannel
-
359705006824 Neoprene PadNeoprene Pad
-
363705007085 Rubber WasherRubber Washer
-
370705007307 LH Side GrillLH Side Grill
-
401705008724 Steel Black Met LH Side Panel. Model-Steel Black MetSteel Black Met LH Side Panel. Model-Steel Black Met
-
401705008726 Pearl Red LH Side Panel. Model-Intense Red PearlPearl Red LH Side Panel. Model-Intense Red Pearl
-
401705008999 Vegas White Pearl LH Side Panel. Model-Vegas White PearlVegas White Pearl LH Side Panel. Model-Vegas White Pearl
-
401705009007 Circuit Yellow LH Side Panel. Model-Circuit Yellow MetCircuit Yellow LH Side Panel. Model-Circuit Yellow Met
-
402705008725 Steel Black Met RH Side Panel. Model-Steel Black MetSteel Black Met RH Side Panel. Model-Steel Black Met
-
402705008727 Pearl Red RH Side Panel. Model-Intense Red PearlPearl Red RH Side Panel. Model-Intense Red Pearl
-
402705009000 Vegas White Pearl RH Side Panel. Model-Vegas White PearlVegas White Pearl RH Side Panel. Model-Vegas White Pearl
-
402705009008 Circuit Yellow RH Side Panel. Model-Circuit Yellow MetCircuit Yellow RH Side Panel. Model-Circuit Yellow Met
-
403705009063 LH SupportLH Support
-
404705009064 RH SupportRH Support
-
418705009311 Side Foam LH. Model-Australia, BrezilSide Foam LH. Model-Australia, Brezil
-
419705009312 Side Foam RH. Model-Australia, BrezilSide Foam RH. Model-Australia, Brezil
-
420705009313 LH Foam. Model-Australia, BrezilLH Foam. Model-Australia, Brezil
-
421705009314 RH Foam. Model-Australia, BrezilRH Foam. Model-Australia, Brezil
-
429705009446 Belt Guard MouldingBelt Guard Moulding
-
442708000759 Rubber StopperRubber Stopper
