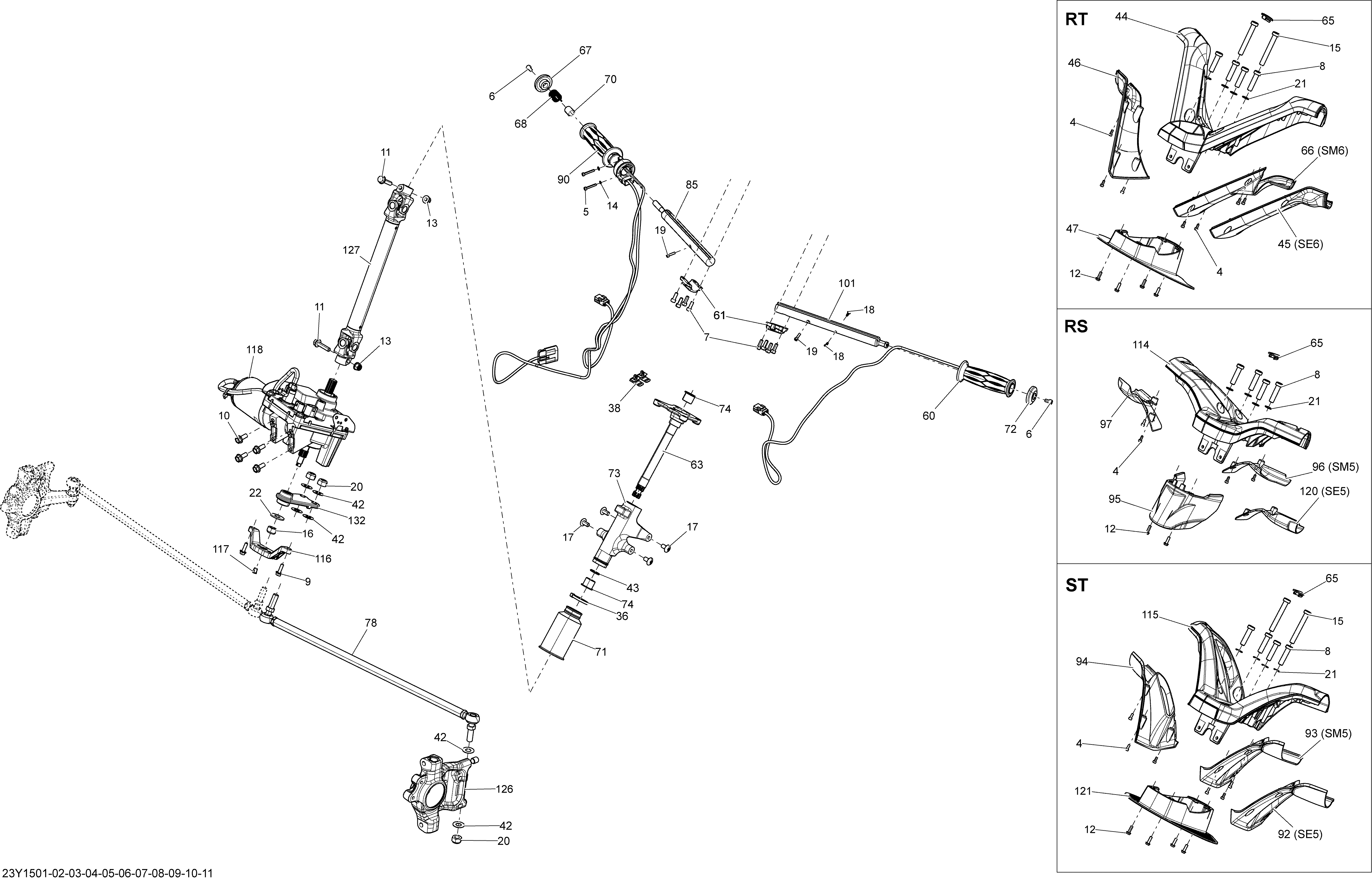

07- Steering _23Y1503 для BRP Spyder RT Limited SE6 - 2015
-
№АртикулНазвание
-
4205041094 Socket Screw, M4 X 10Socket Screw, M4 X 10
-
5205042594 Socket Screw, M4 X 25Socket Screw, M4 X 25
-
6205061094 Socket Screw, M6 X 10Socket Screw, M6 X 10
-
7205561644 Socket Screw M6 X 16, Scotch GripSocket Screw M6 X 16, Scotch Grip
-
8250000456 Thin Socket Screw, Scotch Grip, M10 X 40Thin Socket Screw, Scotch Grip, M10 X 40
-
9207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
10207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
11207583587 Flanged Hex. Screw M8 X 35, Scotch GripFlanged Hex. Screw M8 X 35, Scotch Grip
-
12210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
13232081417 Hex. Nut M8Hex. Nut M8
-
13a503189157 WasherWasher
-
14234040600 Flat Washer 4 mmFlat Washer 4 mm
-
15250000659 Thin Socket Screw, Scotch Grip, M10 X 70Thin Socket Screw, Scotch Grip, M10 X 70
-
16250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
17250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
18250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
19250000494 Socket Screw, M4 X 16 Scotch GripSocket Screw, M4 X 16 Scotch Grip
-
20250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
21250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
22250200113 Flat Washer, 12 mmFlat Washer, 12 mm
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38515175283 Housing SupportHousing Support
-
42250200086 Flat WasherFlat Washer
-
43709000089 O-RingO-Ring
-
44709401194 Carbon Black HandlebarCarbon Black Handlebar
-
45709400577 LH Steering Cover. Engine-SE6LH Steering Cover. Engine-SE6
-
46709400578 RH Steering CoverRH Steering Cover
-
47709400579 Handlebar Central CoverHandlebar Central Cover
-
60709400625 Heating Handle GripHeating Handle Grip
-
61709400631 Handlebar ClampHandlebar Clamp
-
63709400774 Upper Steering ColumnUpper Steering Column
-
65709401292 Deep Black CapDeep Black Cap
-
66709400741 LH Steering Cover. Engine-SM6LH Steering Cover. Engine-SM6
-
67709400765 RH Handlebar End PieceRH Handlebar End Piece
-
68709400773 SpringSpring
-
70709400782 BushingBushing
-
71709400790 BellowsBellows
-
72709400793 LH Handlebar End PieceLH Handlebar End Piece
-
73709401214 Steering Column Support. Include CushionsSteering Column Support. Include Cushions
-
78709401481 Tie Rod Ass'yTie Rod Ass'y
-
85709401150 RH HandlebarsRH Handlebars
-
90709400929 Throttle Heating GripThrottle Heating Grip
-
101709401152 LH HandlebarsLH Handlebars
-
116709401574 Sensor SupportSensor Support
-
117709401527 Sensor SleaveSensor Sleave
-
118709401564 Power SteeringPower Steering
-
126709401583 RH Knuckle Ass'yRH Knuckle Ass'y
-
126709401584 LH Knuckle Ass'yLH Knuckle Ass'y
-
127709401411 Lower Steering ColumnLower Steering Column
-
132709401417 Pitman ArmPitman Arm
