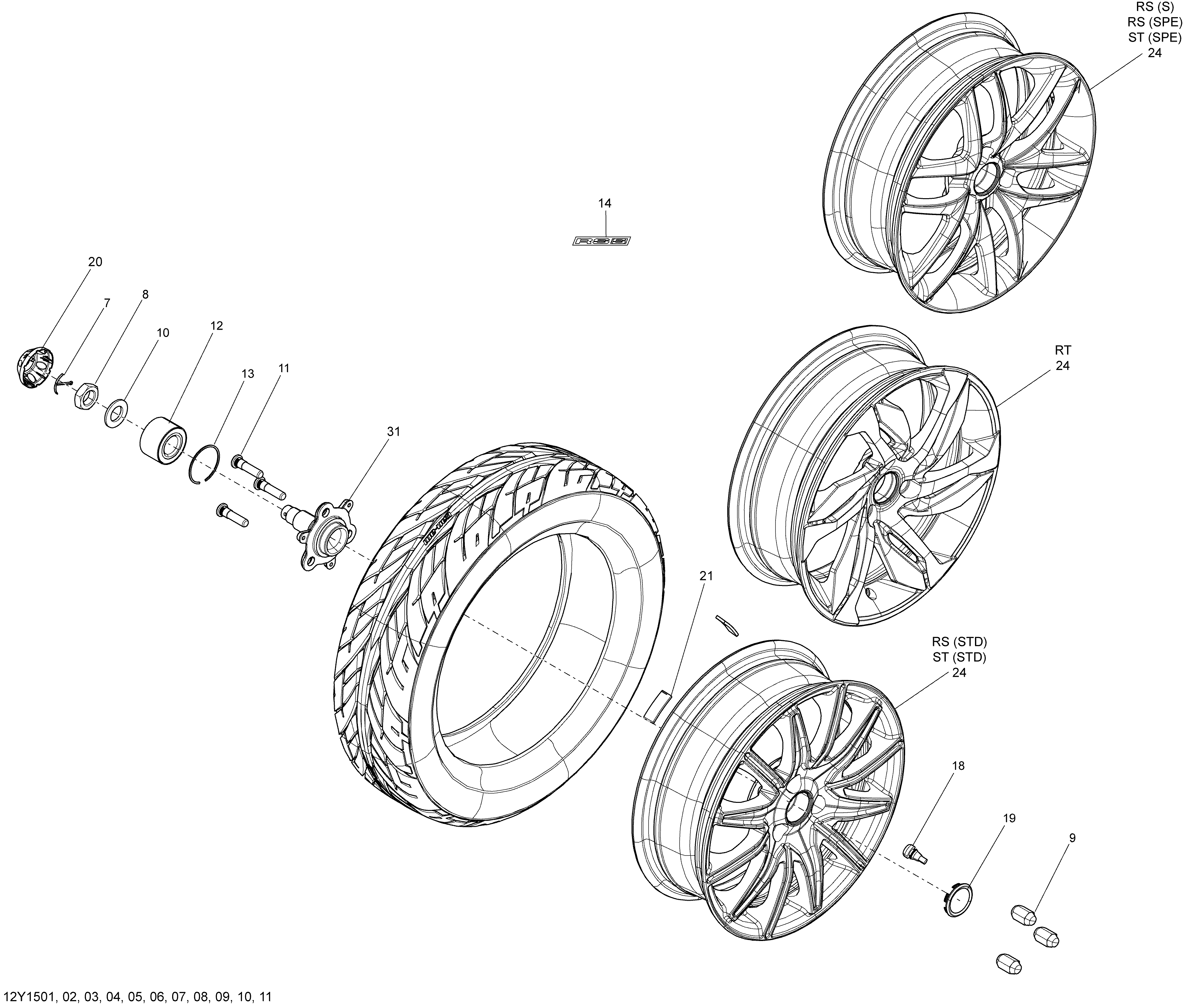

07- Drive System, Front _12Y1507 для BRP Spyder ST Limited SE5 - 2015
-
№АртикулНазвание
-
7250400047 Cotter PinCotter Pin
-
8250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
9250100154 Chrome Wheel Nut M12 X 1.5Chrome Wheel Nut M12 X 1.5
-
9250100155 Black Wheel Nut M12 X 1.5Black Wheel Nut M12 X 1.5
-
10250200156 Flat WasherFlat Washer
-
11250300024 Wheel Stud M12 X 1.5Wheel Stud M12 X 1.5
-
12293350040 Cone BearingCone Bearing
-
13293370019 CirclipCirclip
-
14704904069 RSS Red Rim Decal. Model-RS with Rim Carbon BlackRSS Red Rim Decal. Model-RS with Rim Carbon Black
-
14704904462 RSS Red Rim Decal. Model-RS with Rim Dragon redRSS Red Rim Decal. Model-RS with Rim Dragon red
-
18705400193 Rim Valve With CapRim Valve With Cap
-
19705400388 Wheel CapWheel Cap
-
20705401100 Wheel CapWheel Cap
-
22705502106 Self Adhesive WeightSelf Adhesive Weight
-
23706201324 Front TireFront Tire
-
24706201328 Argent Front Rim. Model-RT with Rim Metallic SilverArgent Front Rim. Model-RT with Rim Metallic Silver
-
24706201431 Argent Front Rim. Model-RS/ST with Rim Metallic SilverArgent Front Rim. Model-RS/ST with Rim Metallic Silver
-
24706202081 Carbon Black-Front Rim. Model-RS/ST with Rim Carbon BlackCarbon Black-Front Rim. Model-RS/ST with Rim Carbon Black
-
24706202082 Red Can-Am Front Rim. Model-RS/ST with Rim Dragon redRed Can-Am Front Rim. Model-RS/ST with Rim Dragon red
-
24706202085 Black Front Rim. Model-BlackBlack Front Rim. Model-Black
-
24706202203 Chrome Front Rim. Model-ChromeChrome Front Rim. Model-Chrome
-
24706202214 Carbon Black Front Rim. Model-RT with Rim Carbon BlackCarbon Black Front Rim. Model-RT with Rim Carbon Black
-
31706201895 Wheel Hub Ass'yWheel Hub Ass'y
