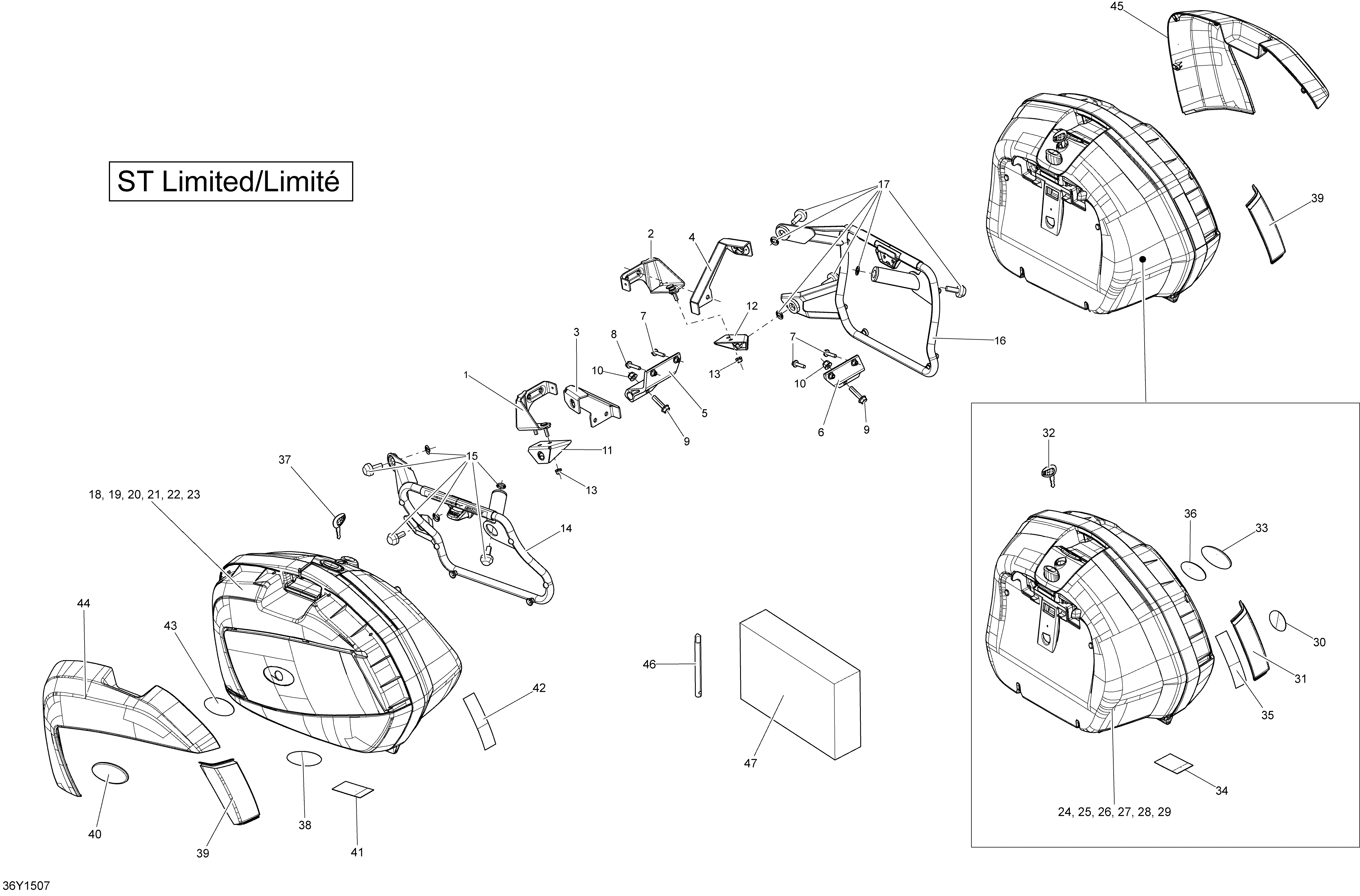

09- Luggages 36Y1507 для BRP Spyder ST Limited SE5 - 2015
-
№АртикулНазвание
-
1708300775 LH Lower SupportLH Lower Support
-
2708300776 RH Lower SupportRH Lower Support
-
3708300897 LH Front SupportLH Front Support
-
4708300898 RH Front SupportRH Front Support
-
5708300778 LH Rear SupportLH Rear Support
-
6708300779 RH Rear SupportRH Rear Support
-
7207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
8207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
9207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11708300747 LH Lower TieLH Lower Tie
-
12708300749 RH Lower TieRH Lower Tie
-
13233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
14708300922 LH Support Ass'y. Includes 14 to 15LH Support Ass'y. Includes 14 to 15
-
15219400224 GIVI Fastener KitGIVI Fastener Kit
-
16708300923 RH Support Ass'y. Includes 16 to 17RH Support Ass'y. Includes 16 to 17
-
17219400224 GIVI Fastener KitGIVI Fastener Kit
-
18708300854 LH Side Case Ass'yLH Side Case Ass'y
-
19708300444 Red PulleyRed Pulley
-
20708300445 Inner StrapsInner Straps
-
21708300446 Lid StrapsLid Straps
-
22708301030 Key And Barrels KitKey And Barrels Kit
-
23708300448 Latch KitLatch Kit
-
24708300855 RH Side Case Ass'yRH Side Case Ass'y
-
25708300444 Red PulleyRed Pulley
-
26708300445 Inner StrapsInner Straps
-
27708300446 Lid StrapsLid Straps
-
28708301030 Key And Barrels KitKey And Barrels Kit
-
29708300448 Latch KitLatch Kit
-
30708300141 Decal, CAN-AMDecal, CAN-AM
-
31219400235 GIVI Reflector KitGIVI Reflector Kit
-
32708300371 V35 Key BagV35 Key Bag
-
33705001572 Red Rear Lateral ReflectorRed Rear Lateral Reflector
-
34704902091 Rear Maximum Load DecalRear Maximum Load Decal
-
35704902052 Strip ReflectorStrip Reflector
-
36704902053 Spacer DecalSpacer Decal
-
37708301030 Key And Barrels KitKey And Barrels Kit
-
38708300141 Decal, CAN-AMDecal, CAN-AM
-
39219400235 GIVI Reflector KitGIVI Reflector Kit
-
40705001573 Yellow Rear Lateral ReflectorYellow Rear Lateral Reflector
-
40705001573 Yellow Rear Lateral ReflectorYellow Rear Lateral Reflector
-
41704903111 Warning Decal, Maximum Load. Model-AutraliaWarning Decal, Maximum Load. Model-Autralia
-
41704903112 Warning Decal, Maximum LoadWarning Decal, Maximum Load
-
42704902052 Strip ReflectorStrip Reflector
-
43704904535 Spacer DecalSpacer Decal
-
44708301423 Steel Black LH PanelSteel Black LH Panel
-
44708300849 White Pearl LH PanelWhite Pearl LH Panel
-
44708301429 Satin Blue LH PanelSatin Blue LH Panel
-
45708301430 Satin Blue RH PanelSatin Blue RH Panel
-
45708301424 Steel Black RH PanelSteel Black RH Panel
-
45708300850 White Pearl RH PanelWhite Pearl RH Panel
-
46708300261 GIVI ToolGIVI Tool
-
47710004196 GPSGPS
