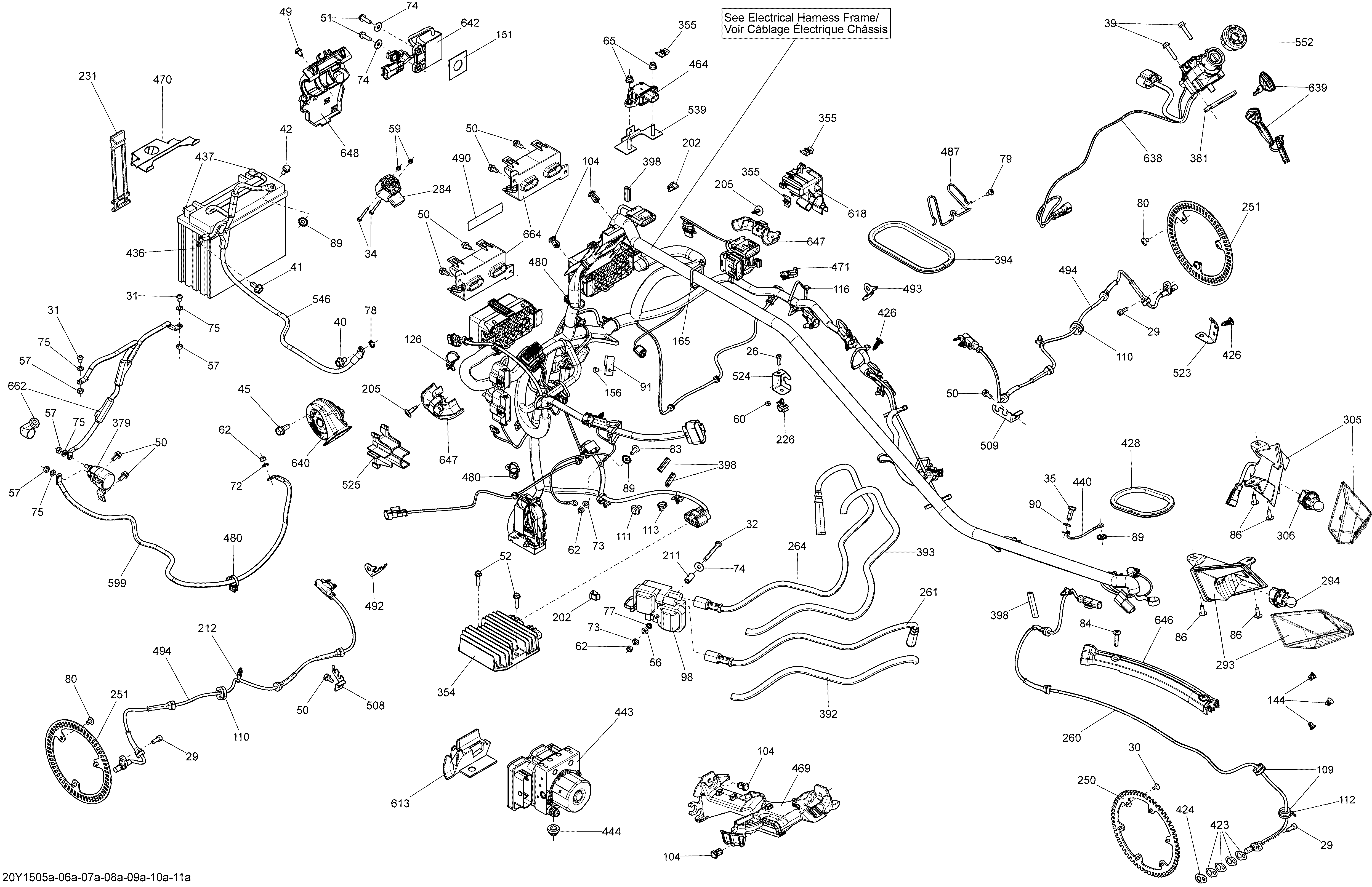

10- Electrical System 1_20Y1507a для BRP Spyder ST Limited SE5 - 2015
-
№АртикулНазвание
-
26205051644 Socket Screw M5 X 16Socket Screw M5 X 16
-
29205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
30205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
31205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
32207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
34207144044 Hex. Cap ScrewHex. Cap Screw
-
35207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
39207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
40207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
41207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
42207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
45207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
49210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
50210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
51210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
52210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
56232061414 Hex. Nut M6Hex. Nut M6
-
57232061600 Hex. Nut M6Hex. Nut M6
-
59232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
60232551600 Hex. Elastic Nut M5Hex. Elastic Nut M5
-
62232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
65233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
72234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
73234061670 Flat Washer 6 mmFlat Washer 6 mm
-
74234062410 Flat Washer 6 mmFlat Washer 6 mm
-
75234161601 Lock Washer Helical M6Lock Washer Helical M6
-
77234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
78234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
79250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
80250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
83250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
84250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
86250000721 Torx ScrewTorx Screw
-
89250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
90250200111 WasherWasher
-
91270000141 ClipClip
-
98278001546 Ignition CoilIgnition Coil
-
103293150150 Pop RivetPop Rivet
-
104293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
109293720084 GrommetGrommet
-
110293720095 GrommetGrommet
-
111293730018 Mount DartMount Dart
-
112293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
113293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
116293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
126293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
144293750044 Tie Rap MountTie Rap Mount
-
151293830091 Rubber BumperRubber Bumper
-
156390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
165414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
202414227300 ClipClip
-
205414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
211512059812 SpacerSpacer
-
212515175220 Tie RapTie Rap
-
226515176795 ClipClip
-
231520000528 LatchLatch
-
250705601372 Sensor WheelSensor Wheel
-
251705601371 Front Sensor WheelFront Sensor Wheel
-
260706200560 Speed SensorSpeed Sensor
-
261707000399 Cable Ass'yCable Ass'y
-
264707000518 Cable Ass'yCable Ass'y
-
284709401171 Posi-Steer SensorPosi-Steer Sensor
-
293515176850 LH Tail Light Ass'y. Includes 293 to 294LH Tail Light Ass'y. Includes 293 to 294
-
294520000758 BulbBulb
-
305515176849 RH Tail Light Ass'y. Includes 305 to 306RH Tail Light Ass'y. Includes 305 to 306
-
306520000758 BulbBulb
-
354710001191 Voltage RegulatorVoltage Regulator
-
355710001222 LockLock
-
379710001364 Starter RelayStarter Relay
-
381710001365 Switch SupportSwitch Support
-
392415079900 Tubing 10 mmTubing 10 mm
-
393415079900 Tubing 10 mmTubing 10 mm
-
394271001530 TrimTrim
-
398271001530 TrimTrim
-
423710002023 ShimShim
-
424710002024 ShimShim
-
426710002033 HolderHolder
-
428271001530 TrimTrim
-
436410922962 Battery, 12 Volts, 21 Amperes. Model-North America, Europe, Australia, Includes 436 to 437Battery, 12 Volts, 21 Amperes. Model-North America, Europe, Australia, Includes 436 to 437
-
437250000282 Battery Bolt Kit. Model-North America, Europe, AustraliaBattery Bolt Kit. Model-North America, Europe, Australia
-
440710004368 Fuel Tank CableFuel Tank Cable
-
443219800333 VCM Module. Includes 443 to 444VCM Module. Includes 443 to 444
-
444710003279 Damper ShockDamper Shock
-
464710002677 Yaw Rate SensorYaw Rate Sensor
-
469710002860 Rear SupportRear Support
-
470710002893 Battery HolderBattery Holder
-
471710002896 Tie-Rap ClipTie-Rap Clip
-
480710002899 Clip Tie-RapClip Tie-Rap
-
487710003017 Grommet SpindleGrommet Spindle
-
490710003077 R/L Label DecalR/L Label Decal
-
492710003089 Speed Sensor HolderSpeed Sensor Holder
-
493710003090 Speed Sensor HolderSpeed Sensor Holder
-
494710003091 Speed SensorSpeed Sensor
-
508710003156 Speed Sensor HolderSpeed Sensor Holder
-
509710003157 Speed Sensor HolderSpeed Sensor Holder
-
523710003305 Connectors BracketConnectors Bracket
-
524710003306 Knock Holder SupportKnock Holder Support
-
525710003322 Connector SupportConnector Support
-
539710003494 YRS HolderYRS Holder
-
546710004369 Negative Main CableNegative Main Cable
-
552710003594 Switch CoverSwitch Cover
-
599710004372 Start CableStart Cable
-
613710003996 VCM Harness ProtectorVCM Harness Protector
-
618710004086 Connector SupportConnector Support
-
638710004277 Ignition Switch. Includes 638 to 639aIgnition Switch. Includes 638 to 639a
-
639710004408 Ignition Key KitIgnition Key Kit
-
639a219800373 DESS AntennaDESS Antenna
-
640710004229 HornHorn
-
642710004241 DESS ModuleDESS Module
-
646710004281 ProtectorProtector
-
647710004307 Wire SupportWire Support
-
648710004308 Wire SupportWire Support
-
662710004370 Positif CablePositif Cable
-
664710004472 Fuse Holder SupportFuse Holder Support
