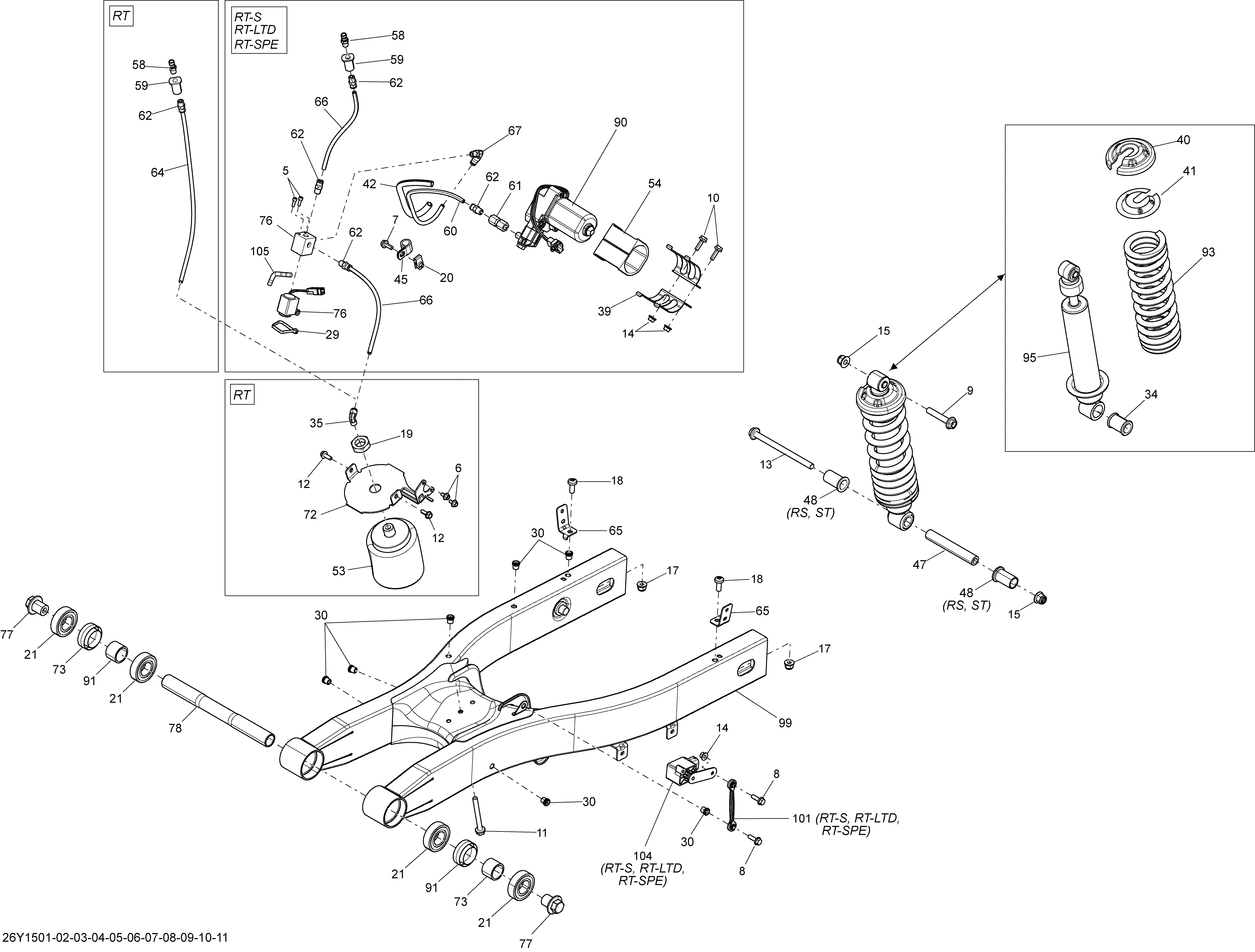

08- Suspension, Rear _26Y1505 для BRP Spyder ST SE5 - 2015
-
№АртикулНазвание
-
9207605554 Hex.Flanged Screw M10 X 55Hex.Flanged Screw M10 X 55
-
13230604034 Flanged Hex. Screw M10 X 140Flanged Hex. Screw M10 X 140
-
15233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
21293350055 Ball BearingBall Bearing
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30293450275 InsertInsert
-
34503191609 Urethane CushionUrethane Cushion
-
40503191604 Spring StopperSpring Stopper
-
41503191605 CapCap
-
47706000409 Shock Absorber ShaftShock Absorber Shaft
-
48706000410 SpacerSpacer
-
62706000869 ConnectorConnector
-
65706000895 BracketBracket
-
67706000928 Elbow 90°Elbow 90°
-
73706001152 SpacerSpacer
-
77706001579 Bolt M20Bolt M20
-
78706001182 Swing Arm AxleSwing Arm Axle
-
91706001366 SleeveSleeve
-
93706001111 Shock Absorber SpringShock Absorber Spring
-
95706001110 Shock AbsorberShock Absorber
-
99706001574 Swing ArmSwing Arm
