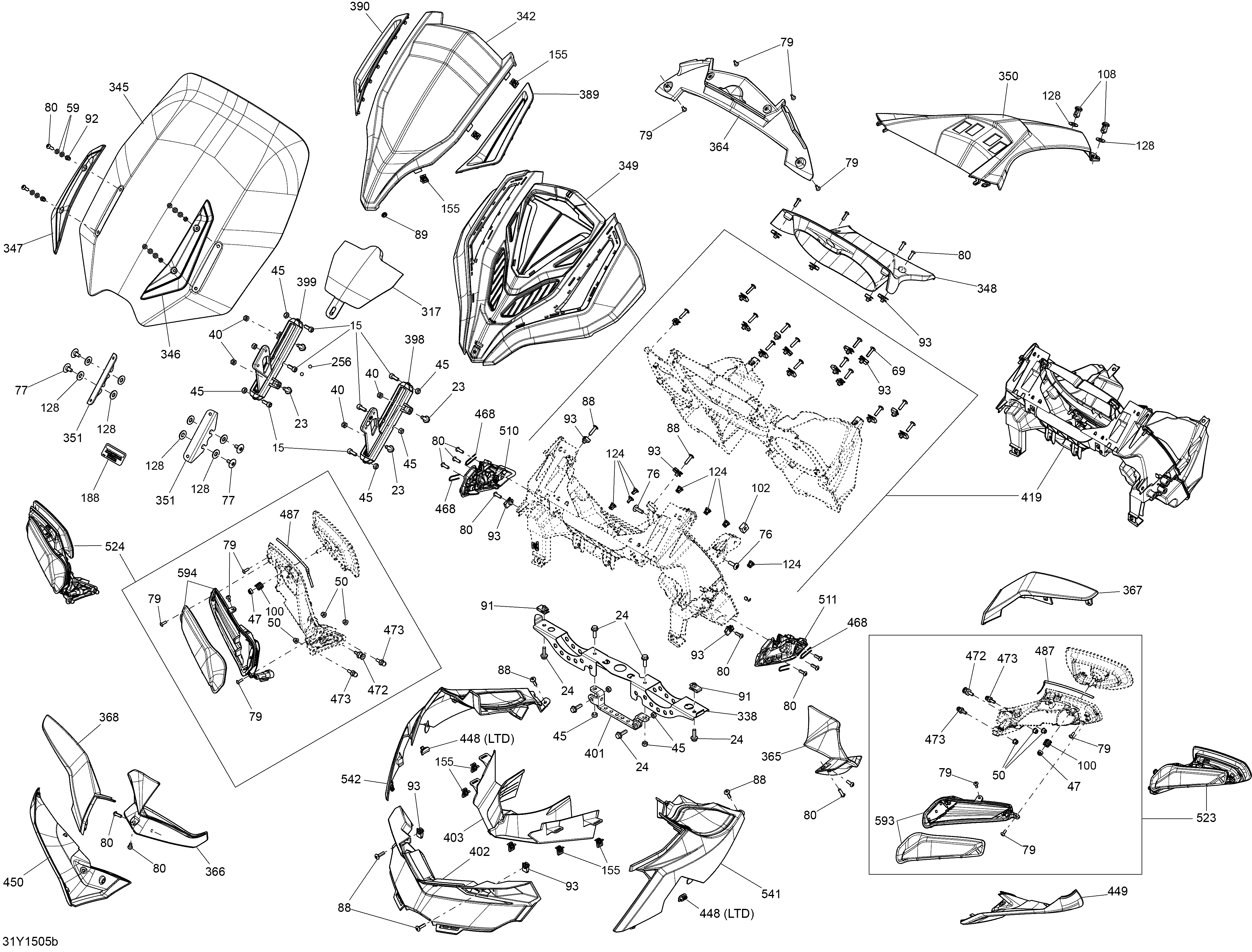

09- Body And Accessories Windshield_31Y1505b для BRP Spyder ST SE5 - 2015
-
№АртикулНазвание
-
15205061644 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
23207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
24207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
40232061414 Hex. Nut M6Hex. Nut M6
-
45232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
47232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
50233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
59234051670 Flat Washer M5. Model-AustraliaFlat Washer M5. Model-Australia
-
69250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
76250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
77250000551 Torx Screw M6 X 13.5Torx Screw M6 X 13.5
-
79250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
80250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
88250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
89250100034 Push NutPush Nut
-
91250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
92250100152 Cap Nut M5Cap Nut M5
-
93250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
100269500453 Mirror SpringMirror Spring
-
108293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
124293750044 Tie Rap MountTie Rap Mount
-
128293830164 Rubber WasherRubber Washer
-
155517302785 ClipClip
-
188704903339 Caution Decal, WindshieldCaution Decal, Windshield
-
256705001705 BallBall
-
317705009360 Guide ChartGuide Chart
-
338705004950 Cross Support ConsoleCross Support Console
-
342705004954 Upper ConsoleUpper Console
-
345705004960 WindshieldWindshield
-
346705004961 LH Windshield MouldingLH Windshield Moulding
-
347705004962 RH Windshield MouldingRH Windshield Moulding
-
348705007460 Moulding Dash BoardMoulding Dash Board
-
349705006842 Carbon Black Front ConsoleCarbon Black Front Console
-
350705004971 Deep Black Center PannelDeep Black Center Pannel
-
351705004982 Windshield SupportWindshield Support
-
364705005320 Upper Console MouldingUpper Console Moulding
-
365705005323 LH Upper Air DeflectorLH Upper Air Deflector
-
366705005324 RH Upper Air DeflectorRH Upper Air Deflector
-
367705006914 Black Carbon LH Mirror CapBlack Carbon LH Mirror Cap
-
368705006915 Black Carbon RH Mirror CapBlack Carbon RH Mirror Cap
-
389705005411 LH Slider ProtectorLH Slider Protector
-
390705005412 RH Slider ProtectorRH Slider Protector
-
398705005460 LH Rail Ass'yLH Rail Ass'y
-
399705005461 RH Rail Ass'yRH Rail Ass'y
-
401705005476 Console Support BracketConsole Support Bracket
-
402705005582 Headlamp MouldingHeadlamp Moulding
-
403705005586 Center Air IntakeCenter Air Intake
-
419705006016 Console Support Ass'yConsole Support Ass'y
-
449705006479 Black Deep LH Lower ShellBlack Deep LH Lower Shell
-
450705006480 Black Deep RH Lower ShellBlack Deep RH Lower Shell
-
468705006661 SpringSpring
-
472705006733 Flat Head Stud M5Flat Head Stud M5
-
473705006734 Round Head Stud M5Round Head Stud M5
-
487296000392 SealSeal
-
510705008210 RH Plate Support Ass'yRH Plate Support Ass'y
-
511705008211 LH Plate Support Ass'yLH Plate Support Ass'y
-
523705008659 LH Mirror Ass'yLH Mirror Ass'y
-
524705008660 RH Mirror Ass'yRH Mirror Ass'y
-
541705009560 DashboardDashboard
-
542705009561 DashboardDashboard
-
593710004029 LH FlasherLH Flasher
-
594710004030 RH FlasherRH Flasher
