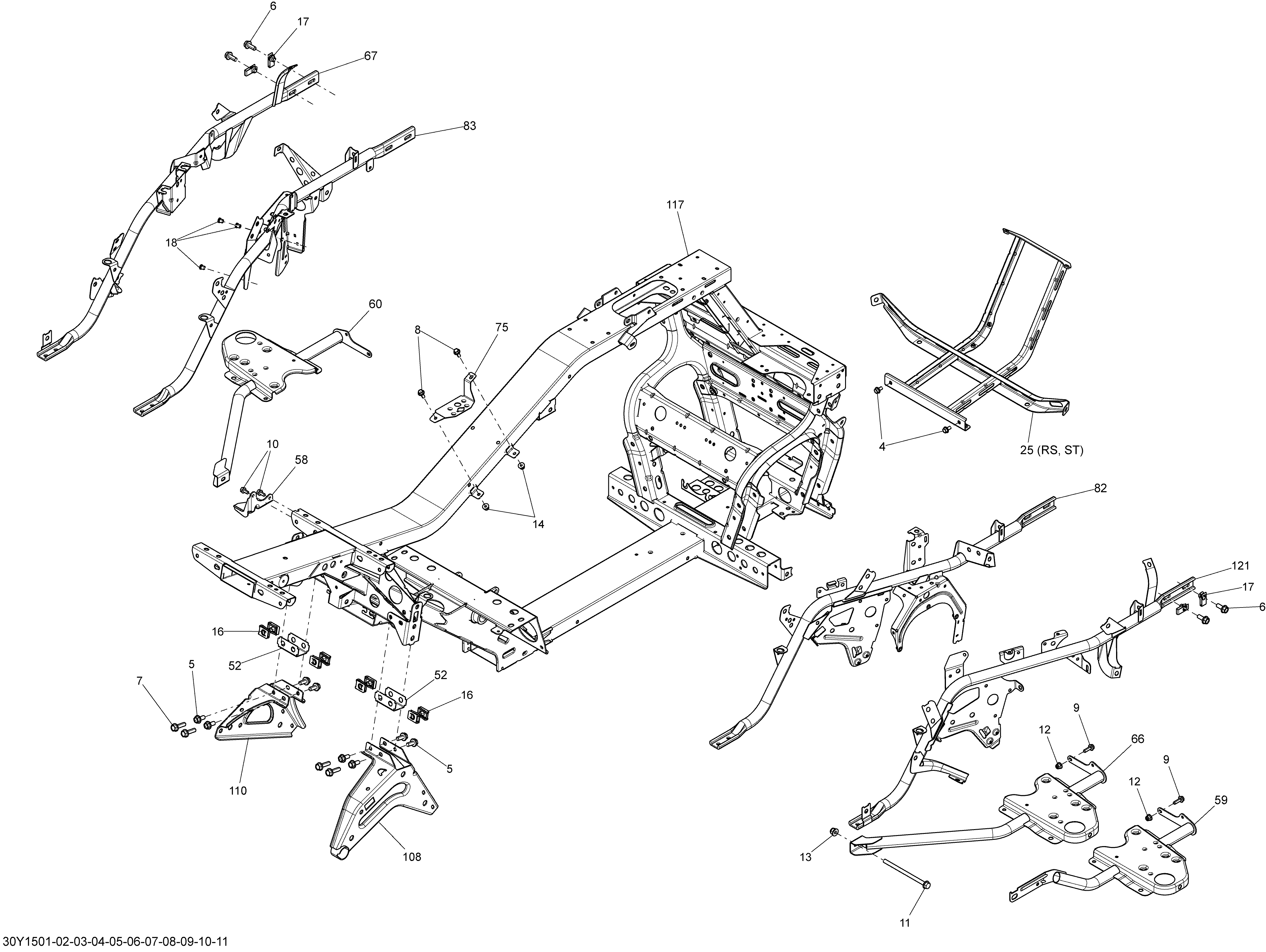

09- Frame _30Y1505 для BRP Spyder ST SE5 - 2015
-
№АртикулНазвание
-
4207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
5207581844 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
6207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
12250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
17250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
25705201326 Front FrameFront Frame
-
52705202484 U-BracketU-Bracket
-
60705202626 LH Painted Lower Lateral SupportLH Painted Lower Lateral Support
-
66705202680 RH Lower Side SupportRH Lower Side Support
-
67705202681 LH Upper Side SupportLH Upper Side Support
-
75705202891 Latch SupportLatch Support
-
108705202963 Rear SupportRear Support
-
117705204484 Painted Frame Ass'yPainted Frame Ass'y
-
121705204510 RH Painted Lateral Support Ass'yRH Painted Lateral Support Ass'y
