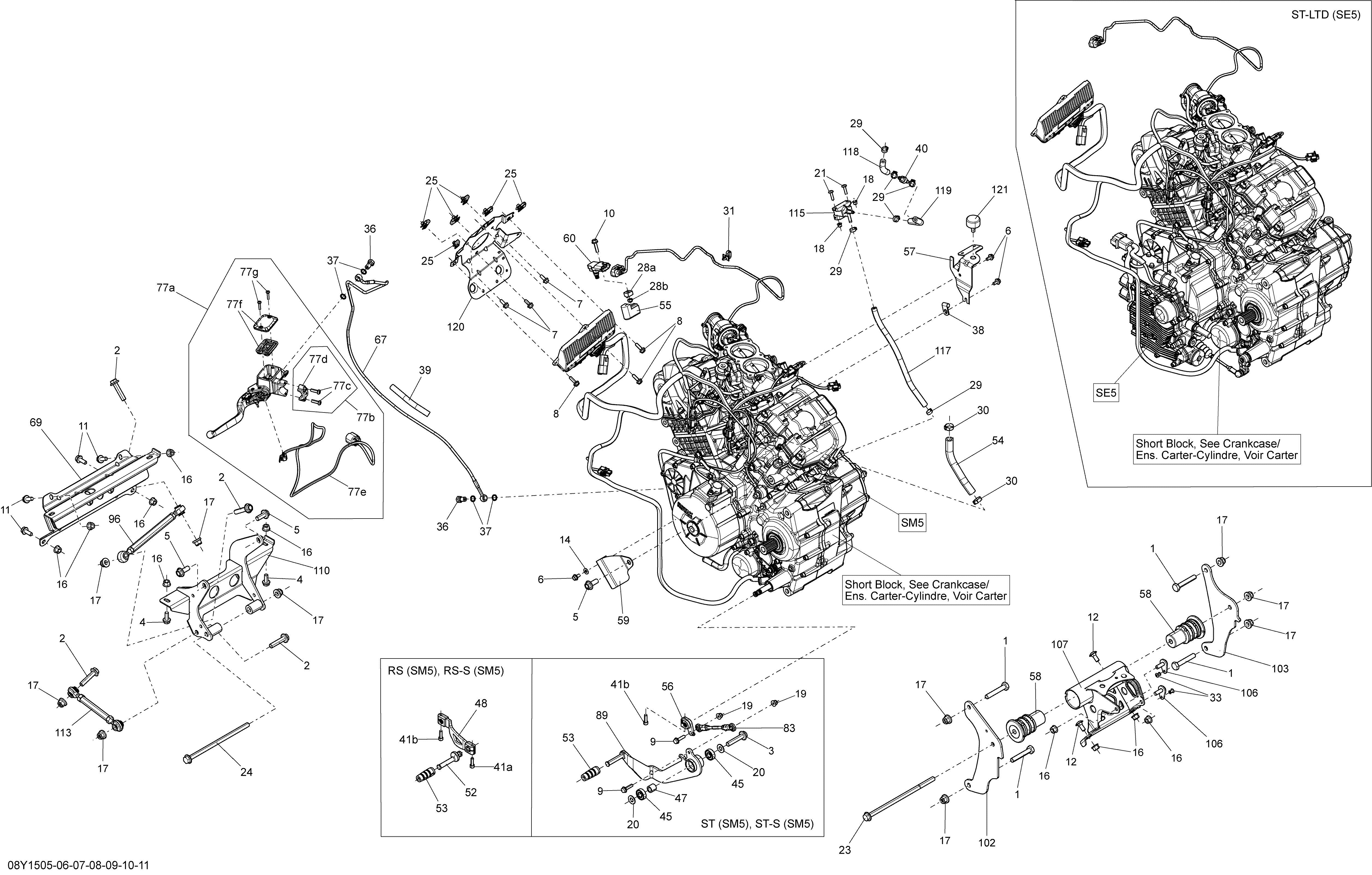

01- Engine SE5_08Y1506 для BRP Spyder STS SE5 - 2015
-
№АртикулНазвание
-
1207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
2207504546 Hex. Flanged Screw, M10 X 45 Scotch GripHex. Flanged Screw, M10 X 45 Scotch Grip
-
4207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
5207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
6207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
11207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
12207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
14224061121 Flat WasherFlat Washer
-
16233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
17233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
23250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
24250000583 Hex. Flanged Screw M10 X 200Hex. Flanged Screw M10 X 200
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
28a269500725 Nut Housing Ass'yNut Housing Ass'y
-
28b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
30293650186 Oetiker ClampOetiker Clamp
-
31293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
33390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
38415052400 AttacheAttache
-
41a514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
48707001458 LeverLever
-
52707000455 Adjustment RodAdjustment Rod
-
54707000484 HoseHose
-
55707000586 FilterFilter
-
57707000756 Intake SupportIntake Support
-
58707000814 Rubber MountRubber Mount
-
59707000845 DeflectorDeflector
-
60707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
69707001056 Front Rubber MountFront Rubber Mount
-
96707001357 Connecting RodConnecting Rod
-
102707001238 LH Engine SupportLH Engine Support
-
103707001239 RH Engine SupportRH Engine Support
-
106707001292 AttachAttach
-
107707001331 ExtentionExtention
-
110707001336 Front Engine SupportFront Engine Support
-
113707001358 Connecting RodConnecting Rod
-
120707800469 BracketBracket
-
121708000758 Rubber StopperRubber Stopper
