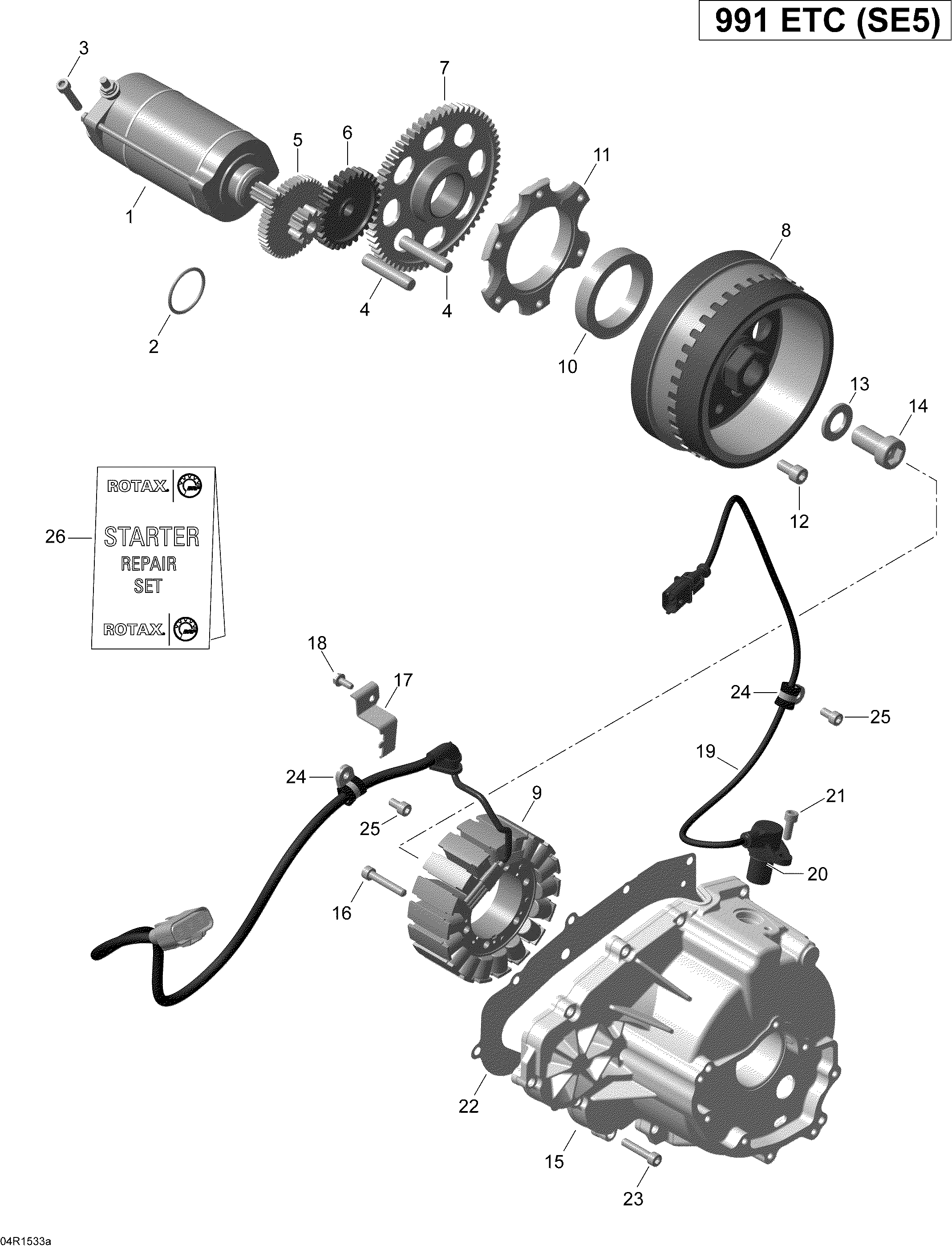

03- Magneto And Electric Starter 1-3_04R1533a для BRP Spyder STS SE5 - 2015
-
№АртикулНазвание
-
1420685965 Electric Starter Ass'y. Includes 1 to 2Electric Starter Ass'y. Includes 1 to 2
-
2420250140 O-RingO-Ring
-
3420840882 Allen Screw M6 X 30Allen Screw M6 X 30
-
4420229302 Location PinLocation Pin
-
5420634741 Double GearDouble Gear
-
6420634606 Gear, 30 TeethGear, 30 Teeth
-
7420634593 Gear, 64 TeethGear, 64 Teeth
-
8420685515 MagnetoMagneto
-
9420685500 Stator PlateStator Plate
-
10420659110 Sprag ClutchSprag Clutch
-
11420659124 Clutch Sprag HousingClutch Sprag Housing
-
12420641590 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
13420627270 ShimShim
-
14420241540 Socket Head Screw M16 X 30Socket Head Screw M16 X 30
-
15420611315 Ignition CoverIgnition Cover
-
16420440270 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
17420251165 Inner Cable CoverInner Cable Cover
-
18420941935 Taptite Screw M5 x 12Taptite Screw M5 x 12
-
19420966570 Crankshaft Position Sensor Ass'y. Includes 19 to 20Crankshaft Position Sensor Ass'y. Includes 19 to 20
-
20420431580 O-RingO-Ring
-
21420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
22420650341 GasketGasket
-
23205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
24414176000 Open ClampOpen Clamp
-
25420440149 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
26420294354 Starter Brush KitStarter Brush Kit
