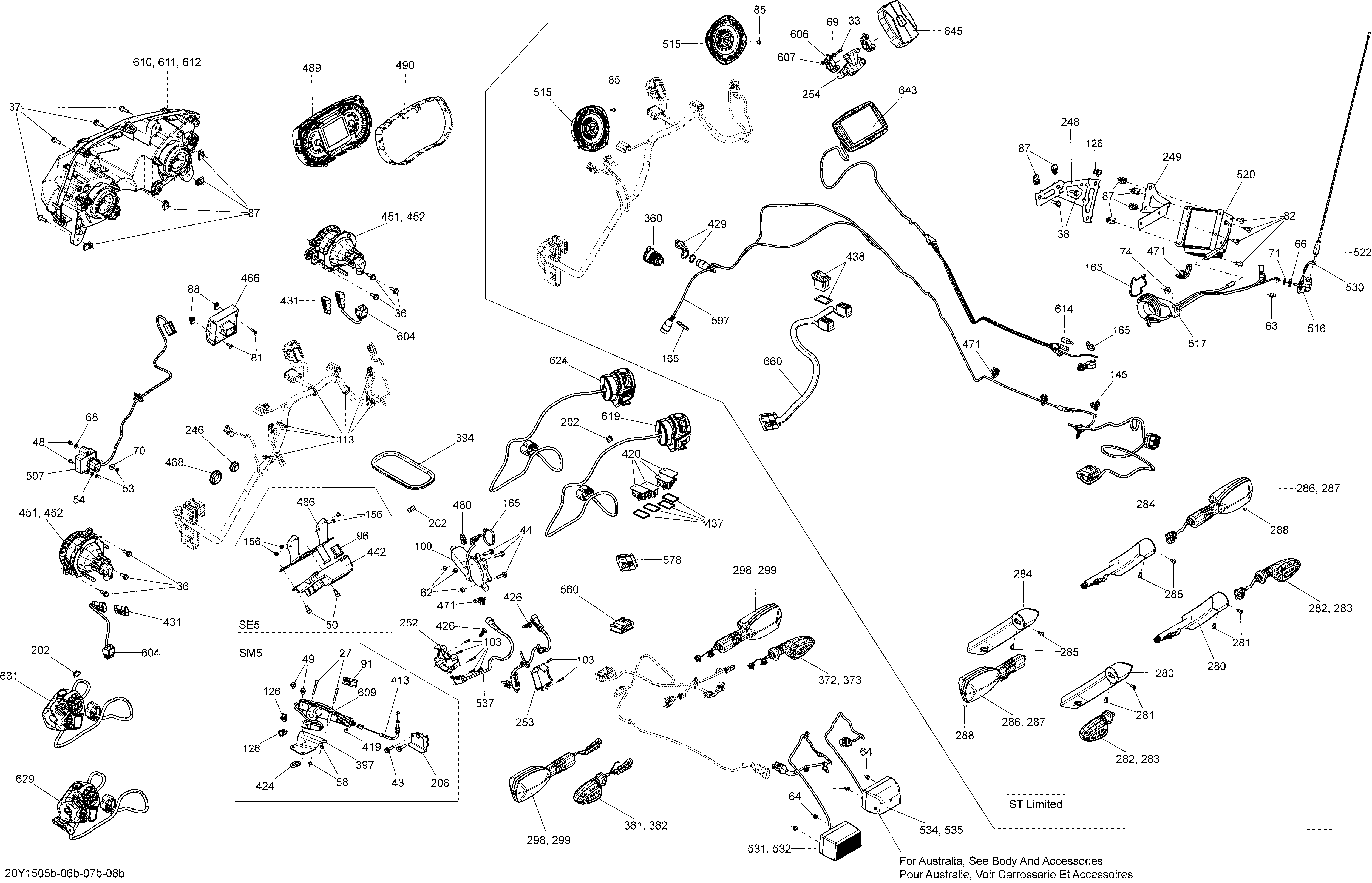

10- Electrical System 2_20Y1506b для BRP Spyder STS SE5 - 2015
-
№АртикулНазвание
-
27205444086 Socket Head Screw M4 X 40. SM5Socket Head Screw M4 X 40. SM5
-
36207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Model-Europe, Brazil, AustraliaHex. Flanged Screw M6 X 16, Scotch Grip. Model-Europe, Brazil, Australia
-
37207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
43207662044 Hex. Flanged Screw M6 X 20. SM5Hex. Flanged Screw M6 X 20. SM5
-
44207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
48250000674 Hex. Screw Forming M4 X 16. Model-Europe, AustraliaHex. Screw Forming M4 X 16. Model-Europe, Australia
-
49210261080 Hex. Flanged Screw M6 X 10. SM5Hex. Flanged Screw M6 X 10. SM5
-
50210261280 Hex. Flanged Screw M6 X 12. SE5Hex. Flanged Screw M6 X 12. SE5
-
53211100002 Push Nut. Model-Europe, AustraliaPush Nut. Model-Europe, Australia
-
54213200016 Flat Washer, Emhart. Model-Europe, AustraliaFlat Washer, Emhart. Model-Europe, Australia
-
58232541414 Elastic Stop Nut M4. SM5Elastic Stop Nut M4. SM5
-
62232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
64233251494 Elastic Flanged Nut M5. Model-North America, Europe, BrazilElastic Flanged Nut M5. Model-North America, Europe, Brazil
-
68234042600 Flat Washer 4 mm, Stainless. Model-Brazil, AustraliaFlat Washer 4 mm, Stainless. Model-Brazil, Australia
-
70234052400 Flat Washer 5 mm, Stainless. Model-Brazil, AustraliaFlat Washer 5 mm, Stainless. Model-Brazil, Australia
-
81250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
88250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
91270000141 Clip. SM5Clip. SM5
-
96278001166 Module Protector. SE5Module Protector. SE5
-
100278003071 Control Gear MotorControl Gear Motor
-
103293150150 Pop RivetPop Rivet
-
113293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
126293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
156390402400 Pop Rivet 3/16''. SE5Pop Rivet 3/16''. SE5
-
165414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
202414227300 ClipClip
-
206420251565 Reverse Cable Support. SM5Reverse Cable Support. SM5
-
246705003464 CapCap
-
252705601344 DeflectorDeflector
-
253705601402 LPS DeflectorLPS Deflector
-
298710003668 Rear Flasher. Model-Europe, Brazil, Australia, Includes 288 to 299Rear Flasher. Model-Europe, Brazil, Australia, Includes 288 to 299
-
299715900043 Bulb 12V 21W. Model-Europe, Brazil, AustraliaBulb 12V 21W. Model-Europe, Brazil, Australia
-
361710001290 LH Rear Turn Signal Ass'y. Model-North America, Includes 361 to 362LH Rear Turn Signal Ass'y. Model-North America, Includes 361 to 362
-
362219800039 Bulb 12V/10W, Amber. Model-North AmericaBulb 12V/10W, Amber. Model-North America
-
372710001337 RH Rear Turn Signal Ass'y. Model-North America, Includes 372 to 373RH Rear Turn Signal Ass'y. Model-North America, Includes 372 to 373
-
373219800039 Bulb 12V/10W, Amber. Model-North AmericaBulb 12V/10W, Amber. Model-North America
-
394271001530 TrimTrim
-
397710001599 Actuator Support. SM5Actuator Support. SM5
-
413707001455 Reverse Cable. SM5Reverse Cable. SM5
-
419390401600 Pop Rivet 1/8''. SM5Pop Rivet 1/8''. SM5
-
420710001999 Plug CarlingPlug Carling
-
424710002024 Shim. SM5Shim. SM5
-
426710002033 HolderHolder
-
431710002168 Packard Connector With Plug. Model-North AmericaPackard Connector With Plug. Model-North America
-
437710002288 Panel SealPanel Seal
-
442710003750 Calibrated Module. SE5Calibrated Module. SE5
-
451710003504 LH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 451 to 452LH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 451 to 452
-
451710003505 RH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 451 to 452RH Low Beam Ass'y. Model-Europe, Brazil, Australia, Includes 451 to 452
-
452415129249 Halogen Bulb. Model-Europe, Brazil, AustraliaHalogen Bulb. Model-Europe, Brazil, Australia
-
466710004214 PBM ModulePBM Module
-
468710002858 Rubber PlugRubber Plug
-
471710002896 Tie-Rap ClipTie-Rap Clip
-
480710002899 Clip Tie-RapClip Tie-Rap
-
486710002977 TCM Module Support. SE5TCM Module Support. SE5
-
489710003940 Multifunction Gauge Cluster. Includes 489 to 490Multifunction Gauge Cluster. Includes 489 to 490
-
490415129349 LensLens
-
507710003142 Configuration Module. Model-Brazil, AustraliaConfiguration Module. Model-Brazil, Australia
-
531710003348 License Plate Light. Model-North America, Includes 531 to 532License Plate Light. Model-North America, Includes 531 to 532
-
532415129261 Bulb. Model-North AmericaBulb. Model-North America
-
534710003349 License Plate Light. Model-Europe, Brazil, Includes 534 to 535License Plate Light. Model-Europe, Brazil, Includes 534 to 535
-
535415129261 Bulb. Model-Europe, BrazilBulb. Model-Europe, Brazil
-
537710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
560710003649 Plug ConnectorPlug Connector
-
578710003877 Plug ConnectorPlug Connector
-
604710004374 Adapter Harness. Model-Europe, Brazil, AustraliaAdapter Harness. Model-Europe, Brazil, Australia
-
609710003776 Actuator. SM5Actuator. SM5
-
610710003891 Headlamp. Includes 610 to 612Headlamp. Includes 610 to 612
-
611219800280 Rubber Cap ProtectorRubber Cap Protector
-
612515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
624710004146 RH Switch HousingRH Switch Housing
-
629710004162 LH Housing Switch. SE5LH Housing Switch. SE5
-
631710004163 LH Housing Switch. SM5LH Housing Switch. SM5
