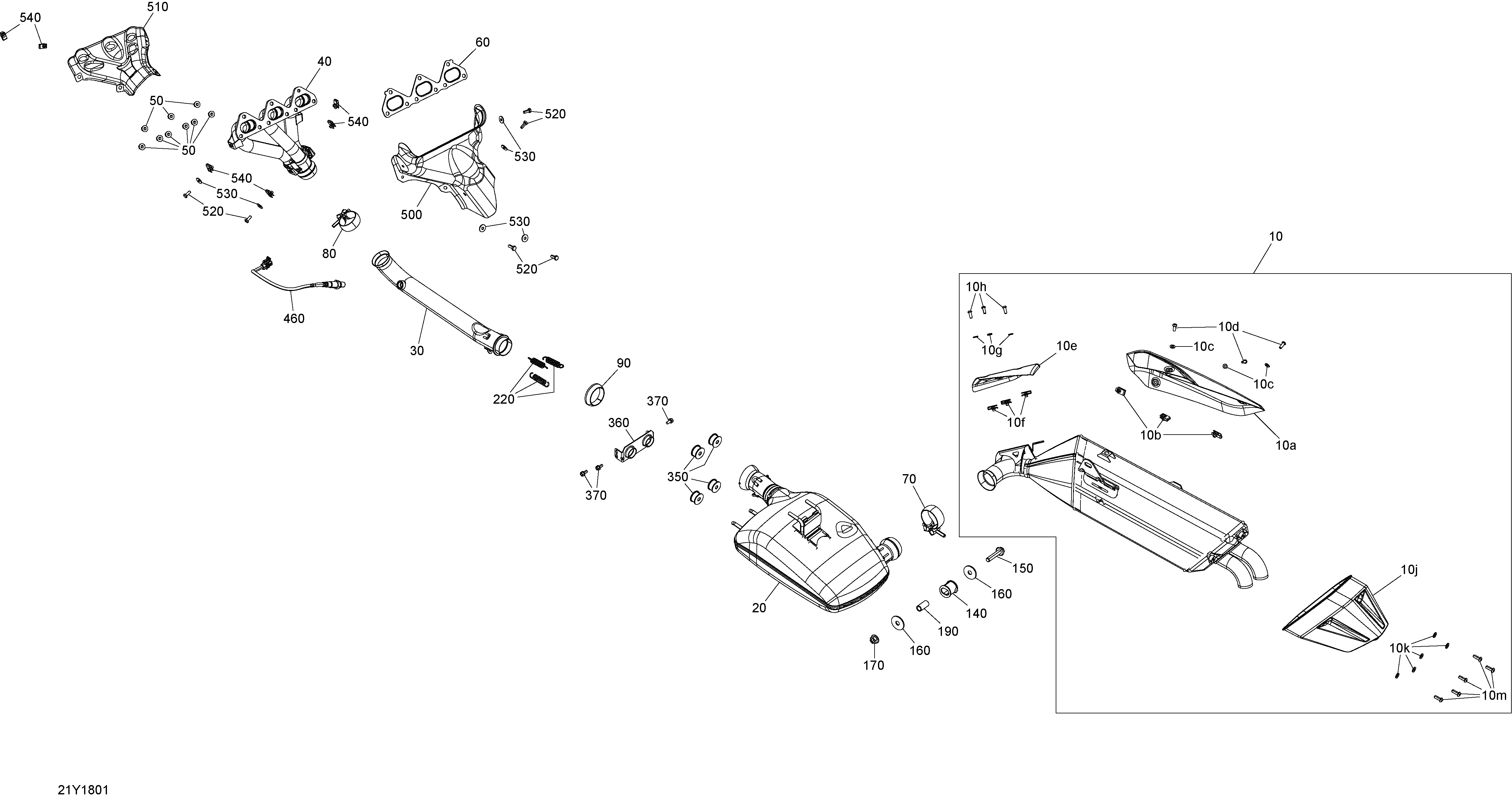

01- Exhaust для BRP RT LTD SE6 - 2018
-
№АртикулНазвание
-
10707602154 Muffler Exhaust Sec Ass'y. Option Dark & 10TH. Includes 10 to 10mMuffler Exhaust Sec Ass'y. Option Dark & 10TH. Includes 10 to 10m
-
10707602171 Muffler Exhaust Sec Ass'y. Option Chrome. Includes 10 to 10mMuffler Exhaust Sec Ass'y. Option Chrome. Includes 10 to 10m
-
10a707601381 Carbon Black Heat Shield. Option Dark & 10THCarbon Black Heat Shield. Option Dark & 10TH
-
10a707601383 Chrome Heat Shield. Option ChromeChrome Heat Shield. Option Chrome
-
10b250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10c234061670 Flat Washer 6 mm. Option Dark & 10THFlat Washer 6 mm. Option Dark & 10TH
-
10c234061600 Flat Washer M6, Stainless. Option ChromeFlat Washer M6, Stainless. Option Chrome
-
10d250000616 Socket Screw, M6 X 16. Option Dark & 10THSocket Screw, M6 X 16. Option Dark & 10TH
-
10d250000437 Socket Screw, M6 X 16. Option ChromeSocket Screw, M6 X 16. Option Chrome
-
10e707601054 Carbon Black Heat ShieldCarbon Black Heat Shield
-
10f250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10g234061670 Flat Washer 6 mmFlat Washer 6 mm
-
10h250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
10j707601048 Carbon Black Muffler End Cap. Option Dark & 10THCarbon Black Muffler End Cap. Option Dark & 10TH
-
10j707600950 Chrome Muffler End Cap. Option ChromeChrome Muffler End Cap. Option Chrome
-
10k234061670 Flat Washer 6 mm. Option Dark & 10THFlat Washer 6 mm. Option Dark & 10TH
-
10k234061600 Flat Washer M6, Stainless. Option ChromeFlat Washer M6, Stainless. Option Chrome
-
10m250000616 Socket Screw, M6 X 16. Option Dark & 10THSocket Screw, M6 X 16. Option Dark & 10TH
-
10m250000437 Socket Screw, M6 X 16. Option ChromeSocket Screw, M6 X 16. Option Chrome
-
20707602033 Primary MufflerPrimary Muffler
-
30707601605 Exhaust Tuned PipeExhaust Tuned Pipe
-
40707601922 Exhaust ManifoldExhaust Manifold
-
50233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
60707601985 Exhaust SealExhaust Seal
-
70707600980 Exhaust ClampExhaust Clamp
-
80707600980 Exhaust ClampExhaust Clamp
-
90514054174 Exhaust GasketExhaust Gasket
-
140293830162 Anti-Vibration RubberAnti-Vibration Rubber
-
150207505046 Hex. Flanged Screw M10 X 50, Scotch GripHex. Flanged Screw M10 X 50, Scotch Grip
-
160506150000 Washer 10 mmWasher 10 mm
-
170233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
190503189282 BushingBushing
-
220415107100 SpringSpring
-
350707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
360707600661 Front BracketFront Bracket
-
370210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
460707600872 Oxygen SensorOxygen Sensor
-
470414115200 Tie-Rap 180 mm. Not ShownTie-Rap 180 mm. Not Shown
-
500707601028 Inner Heat DeflectorInner Heat Deflector
-
510707601504 External Heat DeflectorExternal Heat Deflector
-
520207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
530234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
540250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
