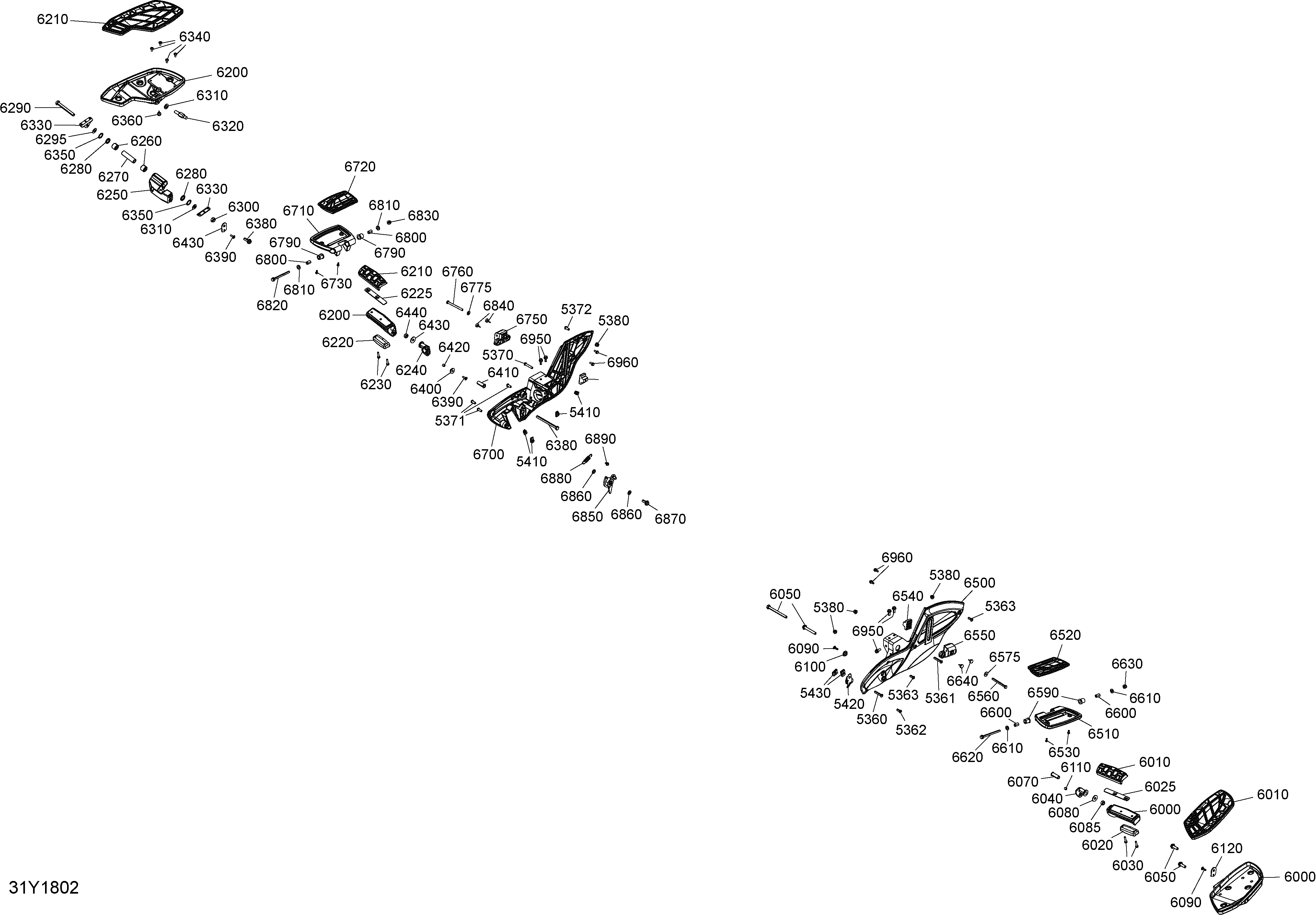

09- Body And Accessories - Footrest для BRP RT LTD SE6 - 2018
-
№АртикулНазвание
-
5360205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
5361205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
5362205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5363205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5370205484560 Socket Screw M8 X 45Socket Screw M8 X 45
-
5371205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5372205482060 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
5380233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5410250100111 Panel Nut M8Panel Nut M8
-
5420705007375 Panel SupportPanel Support
-
5430250100069 Panet Nut M8 X 1.25Panet Nut M8 X 1.25
-
6000705005729 Black Carbon Front Footrest LH. Package DarkBlack Carbon Front Footrest LH. Package Dark
-
6000705006390 Chrome LH Front Footrest. Package ChromeChrome LH Front Footrest. Package Chrome
-
6000705012441 Liquid Gold, LH Front Footrest. Package 10THLiquid Gold, LH Front Footrest. Package 10TH
-
6010705005731 LH Front Footrest PadLH Front Footrest Pad
-
6050207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
6080234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6120705006557 Retaining PlateRetaining Plate
-
6200705005726 Black Carbon Front Footrest RH. Package DarkBlack Carbon Front Footrest RH. Package Dark
-
6200705006392 Chrome RH Front Footrest. Package ChromeChrome RH Front Footrest. Package Chrome
-
6200705012442 Liquide Gold, RH Front Footrest. Package 10THLiquide Gold, RH Front Footrest. Package 10TH
-
6210705005728 RH Front Footrest PadRH Front Footrest Pad
-
6250705005723 Pivot SupportPivot Support
-
6260706000447 BearingBearing
-
6270706000731 BushingBushing
-
6280706000448 SealSeal
-
6290230020586 Hexagonal Screw M12 X 105Hexagonal Screw M12 X 105
-
6295250200086 Flat WasherFlat Washer
-
6300232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
6310234021430 Flat WasherFlat Washer
-
6320705006428 Latch Pin M12 X 30Latch Pin M12 X 30
-
6330705005861 Pivot BracketPivot Bracket
-
6340250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
6350250200136 Plastic Washer 20MMPlastic Washer 20MM
-
6360708000759 Rubber StopperRubber Stopper
-
6380207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
6390250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6430705006557 Retaining PlateRetaining Plate
-
6500705005714 Black LH Footrest Support. Package DarkBlack LH Footrest Support. Package Dark
-
6500705006395 Chrome LH Footrest Support. Package ChromeChrome LH Footrest Support. Package Chrome
-
6500705012443 Liquid Gold, LH Footrest Support. Package 10THLiquid Gold, LH Footrest Support. Package 10TH
-
6510705008532 Chrome Rear Footrest. Package ChromeChrome Rear Footrest. Package Chrome
-
6510705008533 Black Rear Footrest. Package DarkBlack Rear Footrest. Package Dark
-
6510705012444 Liquid Gold, Rear Footrest. Package 10THLiquid Gold, Rear Footrest. Package 10TH
-
6520705007461 LH Rubber Rear PadLH Rubber Rear Pad
-
6530250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
6540705003013 Adjuster BlockAdjuster Block
-
6550705008515 Chrome Sliding Block. Package ChromeChrome Sliding Block. Package Chrome
-
6550705008516 Black Sliding Block. Package DarkBlack Sliding Block. Package Dark
-
6550705012435 Liquid Gold Sliding Block. Package 10THLiquid Gold Sliding Block. Package 10TH
-
6560207189060 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
6575234281704 Spring Washer M8Spring Washer M8
-
6590705003018 Rubber BushingRubber Bushing
-
6600705002153 BushingBushing
-
6610503183800 WasherWasher
-
6620230681034 Hex. Flanged Screw M8 X 110Hex. Flanged Screw M8 X 110
-
6630233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6640708000759 Rubber StopperRubber Stopper
-
6700705007971 Chrome RH Footrest Support. Package ChromeChrome RH Footrest Support. Package Chrome
-
6700705007972 Black RH Footrest Support. Package DarkBlack RH Footrest Support. Package Dark
-
6700705012445 Liquid Gold, RH Footrest Support. Package 10THLiquid Gold, RH Footrest Support. Package 10TH
-
6710705008532 Chrome Rear Footrest. Package ChromeChrome Rear Footrest. Package Chrome
-
6710705008533 Black Rear Footrest. Package DarkBlack Rear Footrest. Package Dark
-
6710705012444 Liquid Gold, Rear Footrest. Package 10THLiquid Gold, Rear Footrest. Package 10TH
-
6720705007472 RH Rubber Rear PadRH Rubber Rear Pad
-
6730250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
6740705003013 Adjuster BlockAdjuster Block
-
6750705008515 Chrome Sliding Block. Package ChromeChrome Sliding Block. Package Chrome
-
6750705008516 Black Sliding Block. Package DarkBlack Sliding Block. Package Dark
-
6750705012435 Liquid Gold Sliding Block. Package 10THLiquid Gold Sliding Block. Package 10TH
-
6760207189060 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
6775234281704 Spring Washer M8Spring Washer M8
-
6790705003018 Rubber BushingRubber Bushing
-
6800705002153 BushingBushing
-
6810503183800 WasherWasher
-
6820230681034 Hex. Flanged Screw M8 X 110Hex. Flanged Screw M8 X 110
-
6830233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6840708000759 Rubber StopperRubber Stopper
-
6850705006014 Latch Ass'y. Includes 6850 to 6850aLatch Ass'y. Includes 6850 to 6850a
-
6850a705600458 BearingBearing
-
6860503183800 WasherWasher
-
6870207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
6880705006533 SpringSpring
-
6890207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
6950207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
6960207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
