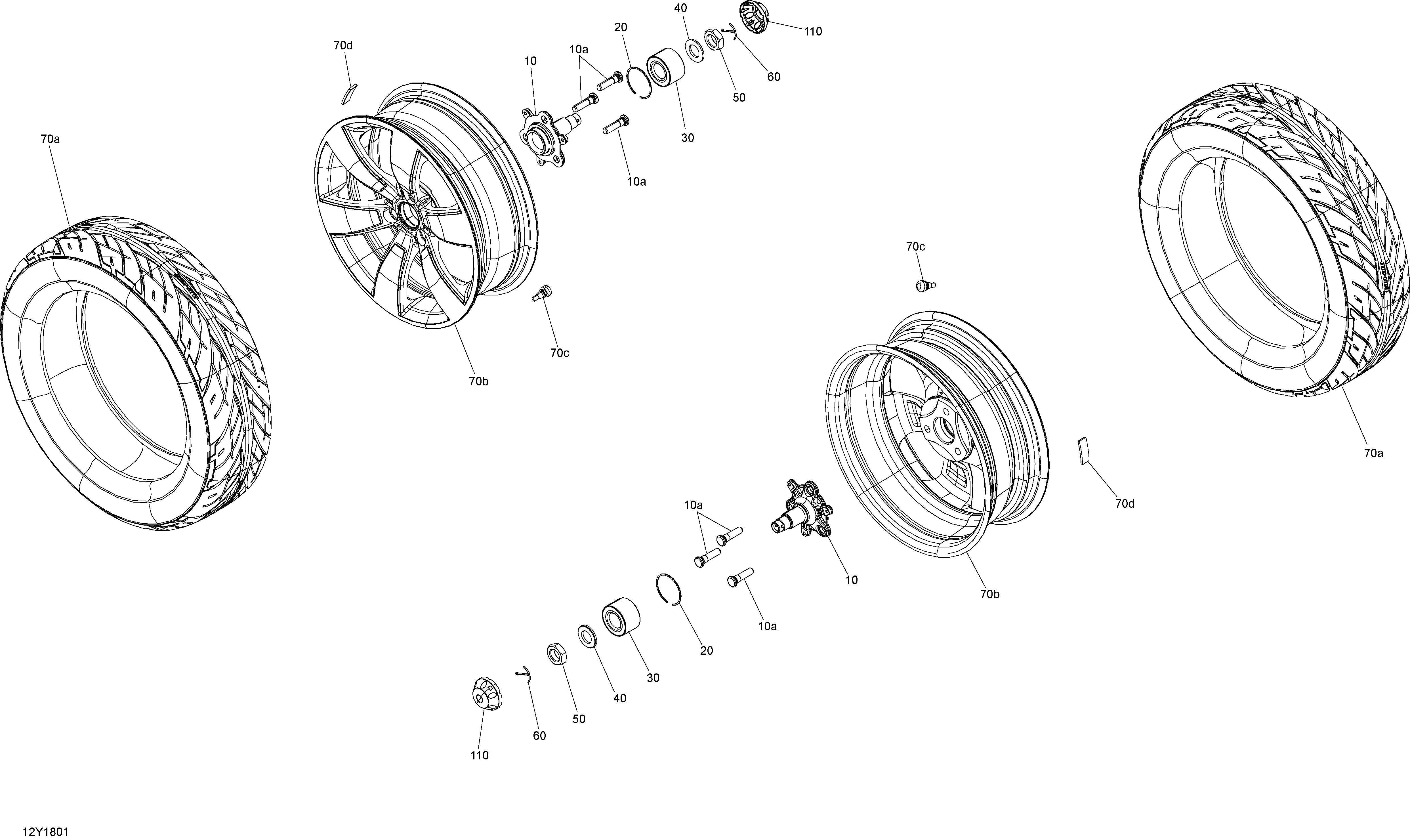

07- Front Drive для BRP RT LTD SE6 - 2018
-
№АртикулНазвание
-
10706202435 Hub. Includes 10 to 10aHub. Includes 10 to 10a
-
10a250300058 Wheel StudWheel Stud
-
20293370019 CirclipCirclip
-
30293350118 Cone BearingCone Bearing
-
40250200163 Flat WasherFlat Washer
-
50250100170 Hex. Jam Nut M24Hex. Jam Nut M24
-
60250400047 Cotter PinCotter Pin
-
70a706202317 Front TireFront Tire
-
70b706202203 Chrome Front Rim. Option ChromeChrome Front Rim. Option Chrome
-
70b706202916 Front Wheel - Gold. Option 10THFront Wheel - Gold. Option 10TH
-
70b706203086 Front Wheel. Option DarkFront Wheel. Option Dark
-
70c705400193 Rim Valve With CapRim Valve With Cap
-
70d705502106 Self Adhesive WeightSelf Adhesive Weight
-
110705401883 Wheel CapWheel Cap
-
150250100154 Chrome Wheel Nut M12 X 1.5. Not ShownChrome Wheel Nut M12 X 1.5. Not Shown
-
160250100155 Black Wheel Nut M12 X 1.5. Not ShownBlack Wheel Nut M12 X 1.5. Not Shown
