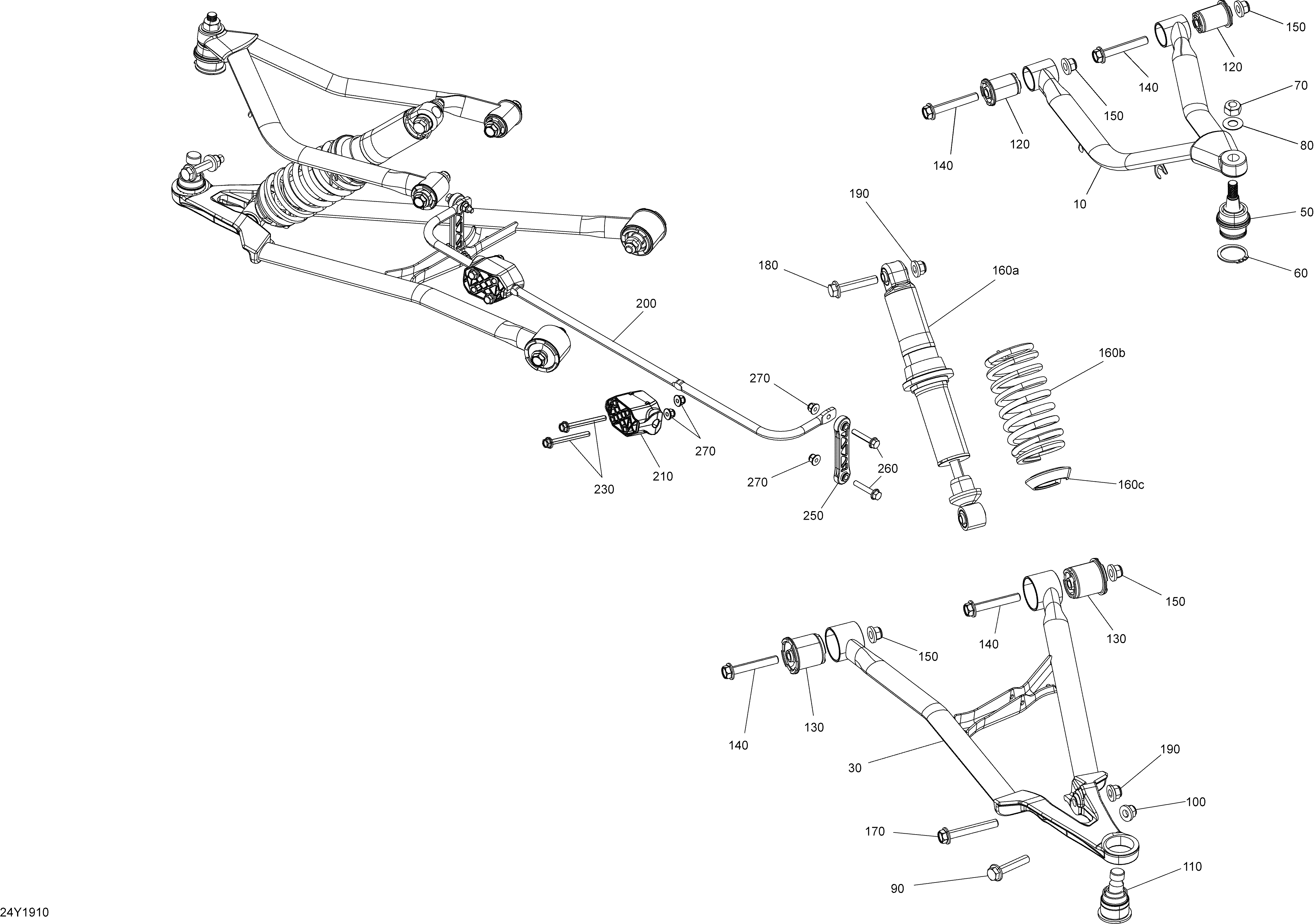

07- Suspension - Front - A-Arms / Shocks для BRP 003 - RYKER Rally Edition 900 ACE - 2019
-
№АртикулНазвание
-
10706202644 Arm Upper LHArm Upper LH
-
20706202645 Arm Upper RHArm Upper RH
-
30706202648 Arm Lower LHArm Lower LH
-
40706202649 Arm Lower RHArm Lower RH
-
50706203147 Ball JointBall Joint
-
60293370035 CirclipCirclip
-
70232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
80250200086 Flat WasherFlat Washer
-
90207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
100233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
110706202508 Ball JointBall Joint
-
120706202549 Suspension Arm BushingSuspension Arm Bushing
-
130706203143 Suspension Arm BushingSuspension Arm Bushing
-
140207606556 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
150233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
160a706002891 Shock. Package All RoadShock. Package All Road
-
160b706203054 Suspension Spring. Package All RoadSuspension Spring. Package All Road
-
160c503195241 Spring Stopper. Package All RoadSpring Stopper. Package All Road
-
170207607056 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
180207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
190233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
200706202710 Sway BarSway Bar
-
210706202848 BushingBushing
-
230207666044 Hex. Flanged Screw M6 X 60Hex. Flanged Screw M6 X 60
-
250505072204 Sway Bar Double Joint LinkSway Bar Double Joint Link
-
260207663554 Screw Hex Flange M6 X 35Screw Hex Flange M6 X 35
-
270233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
