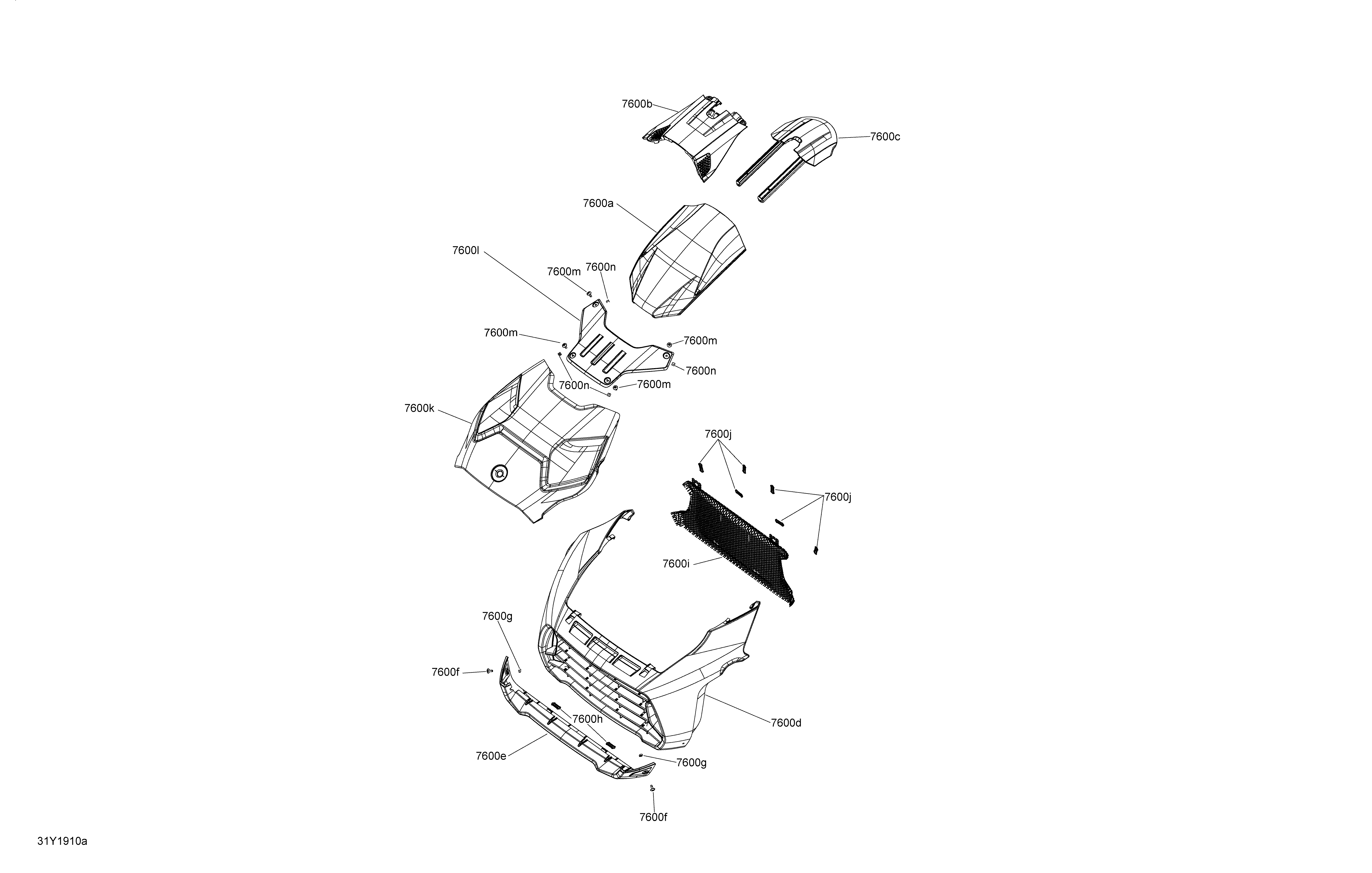

09- Body - Hood / Grill / Upper Body для BRP 003 - RYKER Rally Edition 900 ACE - 2019
-
№АртикулНазвание
-
7600a705013200 Trunk Lid Assy. P-ARTrunk Lid Assy. P-AR
-
7600b705012727 Upper Fairing, B-160 Deep Black. P-ARUpper Fairing, B-160 Deep Black. P-AR
-
7600c705013529 Fuel Tank Flap Assy. P-ARFuel Tank Flap Assy. P-AR
-
7600d705013345 Front Fascia, B-160 Deep Black. P-ARFront Fascia, B-160 Deep Black. P-AR
-
7600e705013450 Front Trim, Sterling Silver Satin. P-ARFront Trim, Sterling Silver Satin. P-AR
-
7600f250001059 Torx Truss Head Screw W Nylon M5X14. P-ARTorx Truss Head Screw W Nylon M5X14. P-AR
-
7600g232852411 Square Nut M5 X 0.8. P-ARSquare Nut M5 X 0.8. P-AR
-
7600h705004838 Flat Clip. P-ARFlat Clip. P-AR
-
7600i705013347 Protective Steel Grill, Black Epoxy. P-ARProtective Steel Grill, Black Epoxy. P-AR
-
7600j705004838 Flat Clip. P-ARFlat Clip. P-AR
-
7600k705013349 Hood, B-160 Deep Black. P-ARHood, B-160 Deep Black. P-AR
-
7600l705013451 Hood Accent, Sterling Silver Satin. P-ARHood Accent, Sterling Silver Satin. P-AR
-
7600m250001059 Torx Truss Head Screw W Nylon M5X14. P-ARTorx Truss Head Screw W Nylon M5X14. P-AR
-
7600n232852411 Square Nut M5 X 0.8. P-ARSquare Nut M5 X 0.8. P-AR
