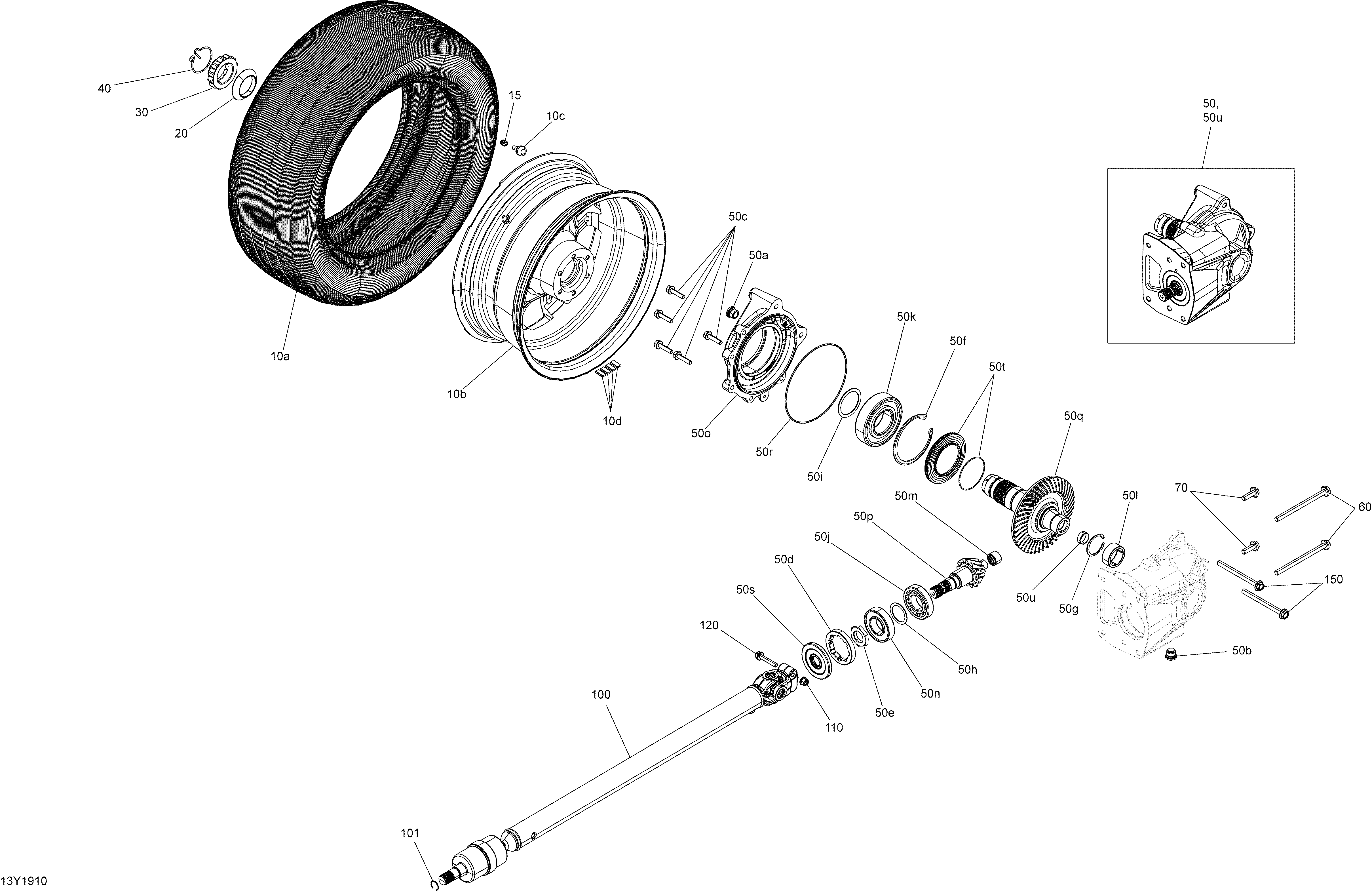

08- Drive System, Rear Drive Shaft & Final Drive + Wheel + Tire для BRP 003 - RYKER Rally Edition 900 ACE - 2019
-
№АртикулНазвание
-
10a705502600 Rear Tire 205/65/15 - 81TRear Tire 205/65/15 - 81T
-
10b705502601 Rear Rim 15'', B-322 Carbon Black Met.Rear Rim 15'', B-322 Carbon Black Met.
-
10c705400193 Rim Valve With CapRim Valve With Cap
-
10d705502106 Self Adhesive Weight, 5G 20mmSelf Adhesive Weight, 5G 20mm
-
15293000110 Valve CapValve Cap
-
20705401983 Conical Support RingConical Support Ring
-
30705401881 Wheel Nut M45Wheel Nut M45
-
40293370126 External Snap RingExternal Snap Ring
-
50>50u705502457 Final Drive Unit. Includes 50 TO 50uFinal Drive Unit. Includes 50 TO 50u
-
50a705501889 Fill Level PlugFill Level Plug
-
50b705502851 Plug Drain, MagneticPlug Drain, Magnetic
-
50c705502849 Hex. Flanged Screw M8 X 1.25 x 35Hex. Flanged Screw M8 X 1.25 x 35
-
50d705401819 Nut M75 X 1.5Nut M75 X 1.5
-
50e705401820 Nut M27 X 1.5Nut M27 X 1.5
-
50o705502508 Rear Cover MachinedRear Cover Machined
-
60230604056 Hex. Flanged Screw M10 X 140Hex. Flanged Screw M10 X 140
-
70250001080 Hex. Flanged Screw M10 X 35 Scotch G.Hex. Flanged Screw M10 X 35 Scotch G.
-
100705502456 LH Homocinetic JointLH Homocinetic Joint
-
110233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
120207684586 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
150250000999 Hex. Flanged Screw M10 X 115 Scotch G.Hex. Flanged Screw M10 X 115 Scotch G.
