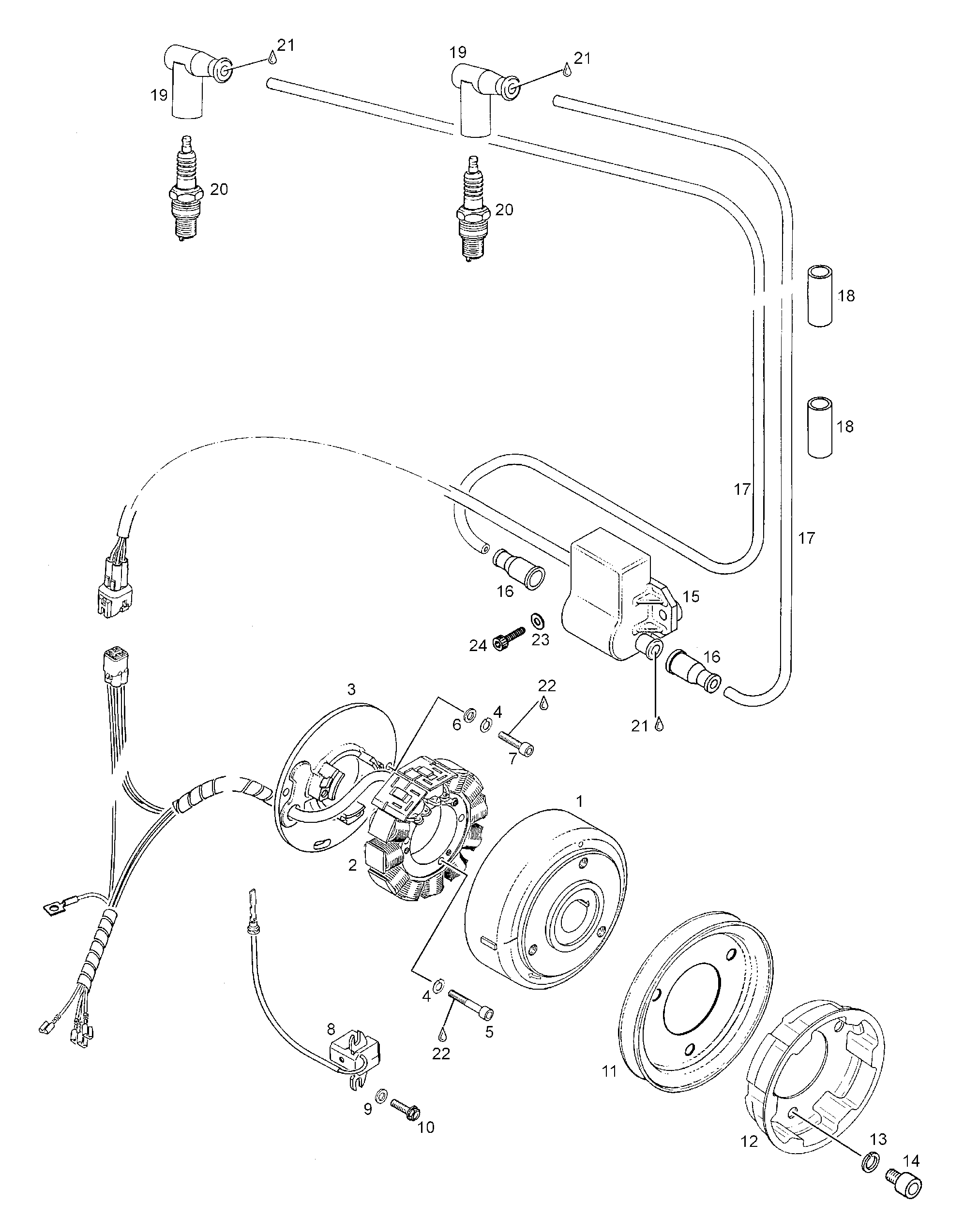

03- Fly Wheel для BRP Lynx 6900 FCE - 1999
-
№АртикулНазвание
-
1420886255 Magneto 240W. Includes items 1 thru 5Magneto 240W. Includes items 1 thru 5
-
1420996820 Fly wheelFly wheel
-
2420886605 Armature plate assy. Includes items 2 thru 5Armature plate assy. Includes items 2 thru 5
-
3420965450 Armature plateArmature plate
-
420013 Lock washerLock washer
-
5420940880 Allen screw M5x30Allen screw M5x30
-
6420927571 WasherWasher
-
7420840515 Screw M5x18Screw M5x18
-
8420965762 Pickup assyPickup assy
-
920002 WasherWasher
-
10420941925 Screw M5x16Screw M5x16
-
11420980486 V-belt pulleyV-belt pulley
-
12420852414 Starting pulleyStarting pulley
-
13420845311 Lock washerLock washer
-
14420841521 Allen screw M8x12Allen screw M8x12
-
15420965757 Electronic box assy. Includes items 15 thru 19Electronic box assy. Includes items 15 thru 19
-
16420960550 Protection capProtection cap
-
17420965529 Ignition cable 690 mIgnition cable 690 m
-
18420830962 Protection hoseProtection hose
-
19278000237 Spark plug connectorSpark plug connector
-
20414961100 Spark plug BR9ESSpark plug BR9ES
-
21420897330 Lithium greaseLithium grease
-
22420899785 Loctite 221 viol.Loctite 221 viol.
-
2320003 Lock washerLock washer
-
2440030 Screw M6x20Screw M6x20
