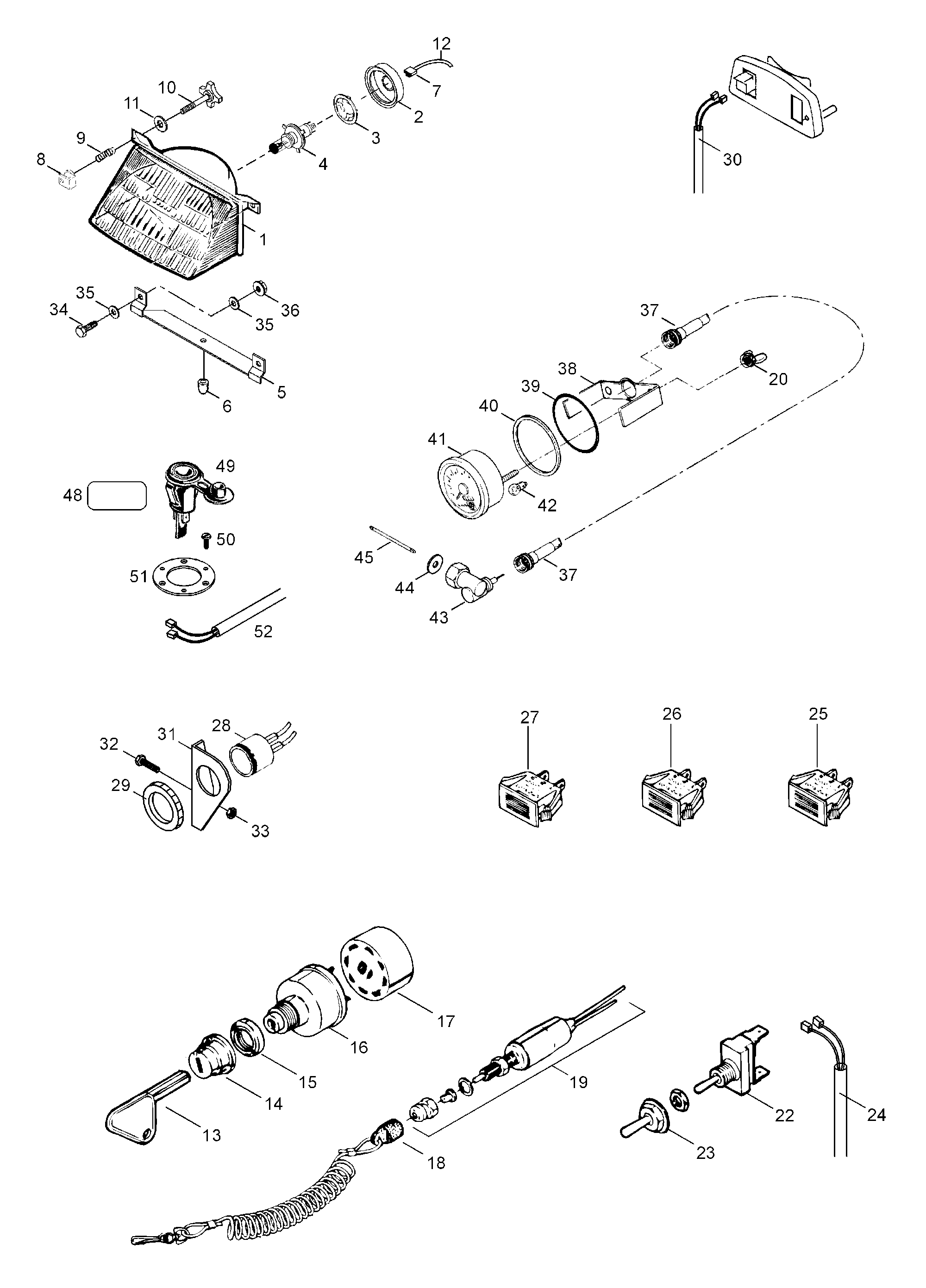

10- Electric для BRP Lynx 6900 FCE - 1999
-
№АртикулНазвание
-
1410609100 Headlamp assy. Includes items 1 thru 4Headlamp assy. Includes items 1 thru 4
-
1410609300 HeadlampHeadlamp
-
2410607100 Protector capProtector cap
-
3410608300 Bulb holderBulb holder
-
4410503700 Halogen bulb 60/55Halogen bulb 60/55
-
5539864 Headlamp supportHeadlamp support
-
6410608200 Rubber stopperRubber stopper
-
71200909 ConnectorConnector
-
8572078600 Projector nutProjector nut
-
9517168600 SpringSpring
-
10732603002 Screw M4x40Screw M4x40
-
1120001 WasherWasher
-
125342764 Headlamp wireHeadlamp wire
-
14570013700 BootBoot
-
15410112100 Face nutFace nut
-
1642019 Ignition switchIgnition switch
-
17572150700 Ignition blockIgnition block
-
185441353 Brake switch assy. Includes items 18 thru 19Brake switch assy. Includes items 18 thru 19
-
184299163 Cap assyCap assy
-
19544957 Brake switchBrake switch
-
2033062 Nut elastic M5Nut elastic M5
-
22410110700 Switch. Includes items 22 thru 23Switch. Includes items 22 thru 23
-
23570013900 CoverCover
-
245242742 Wire for consoleWire for console
-
26410109600 Pilot lamp (HeadlamPilot lamp (Headlam
-
27410109500 Pilot lamp (Oil level)Pilot lamp (Oil level)
-
28414792102 Back up alarmBack up alarm
-
29414805101 Nut for back up alarNut for back up alar
-
305442762 Cable for rear lampCable for rear lamp
-
31549459 SupportSupport
-
3240029 Screw M6x16Screw M6x16
-
3333200 Nut M6Nut M6
-
3440247 Screw M5x16Screw M5x16
-
3520008 WasherWasher
-
3633009 Nut elastic M5Nut elastic M5
-
375344162 Speedometer cableSpeedometer cable
-
38414806500 SupportSupport
-
39517258500 WasherWasher
-
40414807100 O-ringO-ring
-
41415097000 SpeedometerSpeedometer
-
42410504200 Instrument bulpInstrument bulp
-
4335021 Angle gear 1:1.4Angle gear 1:1.4
-
445444186 GasketGasket
-
4545075 Square pin 75mmSquare pin 75mm
-
485442862 Decal 12 VDCDecal 12 VDC
-
4942023 Flush Mounted SockFlush Mounted Sock
-
5040856 ScrewScrew
-
515443941 FlangeFlange
-
525342765 Current Output DCCurrent Output DC
