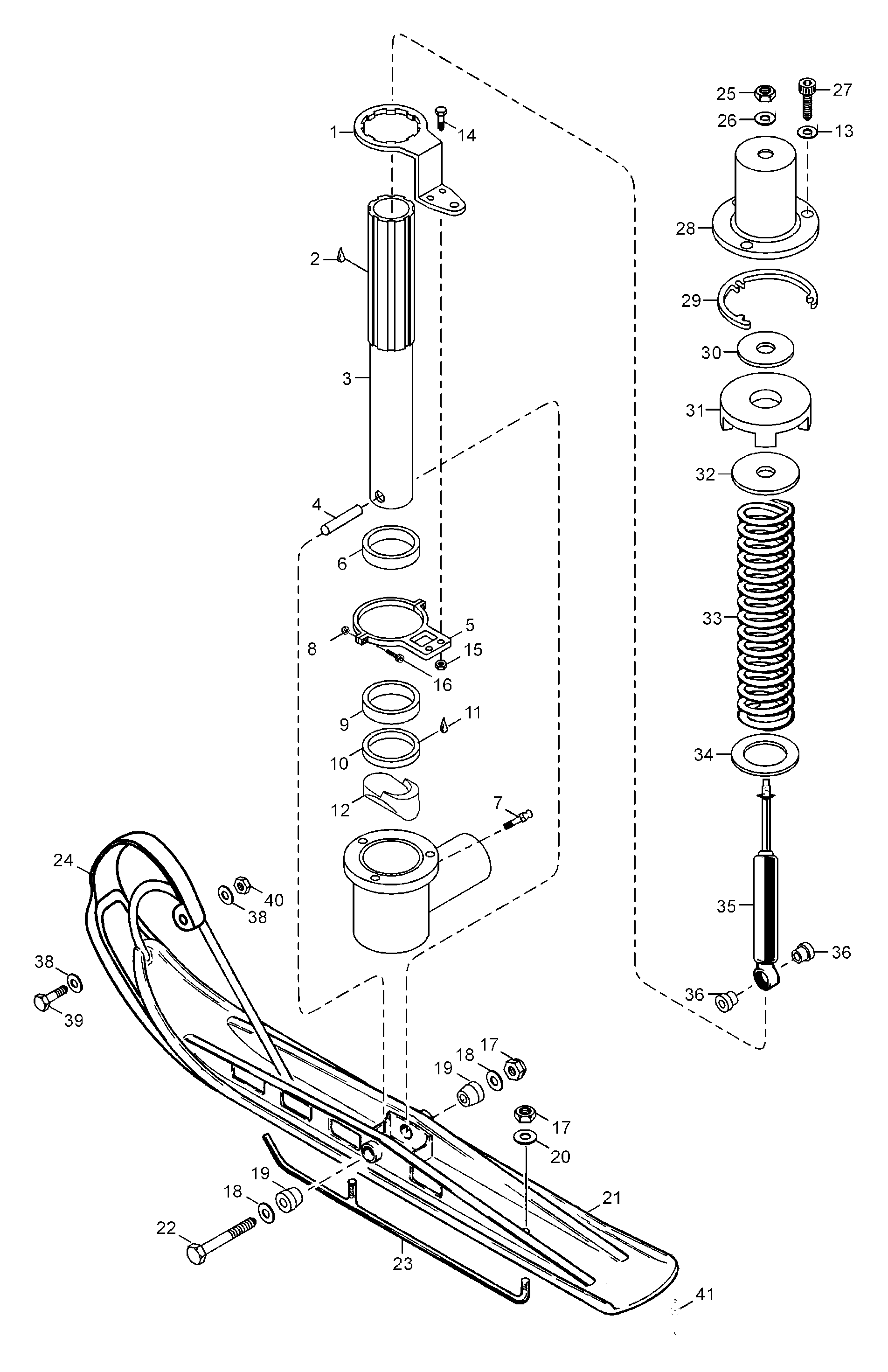

08- Front Suspension для BRP Lynx 6900 FCE - 1999
-
№АртикулНазвание
-
15244182 Arm-steeringArm-steering
-
2413706100 GreaseGrease
-
35241544 Ski-legSki-leg
-
4549716 SleeveSleeve
-
55344180 Support arm assySupport arm assy
-
6414803100 Upper cushionUpper cushion
-
734019 Grease nippleGrease nipple
-
833008 Nut elastic M4Nut elastic M4
-
9414803200 Lower cushionLower cushion
-
10316373 Oil sealOil seal
-
11420899785 Loctite 221, 10ccLoctite 221, 10cc
-
125341750 StopperStopper
-
1320014 Lock washerLock washer
-
1440031 Screw M6x25Screw M6x25
-
1533200 Nut M6Nut M6
-
1640146 Allen screw M4x20Allen screw M4x20
-
1733012 Nut elastic M10Nut elastic M10
-
1820012 Washer A10.5Washer A10.5
-
19547543 RubberRubber
-
2020005 Washer A10.5Washer A10.5
-
215241710 SkiSki
-
2240354 Screw M10x125Screw M10x125
-
235344021 Carbide ski runnerCarbide ski runner
-
245144415 SkilinerSkiliner
-
2533012 Nut elastic M10Nut elastic M10
-
2620012 WasherWasher
-
2740305 Allen screw M8x20Allen screw M8x20
-
285244225 Welded coverWelded cover
-
29503145600 Spacer plateSpacer plate
-
305440399 PlatePlate
-
31570025800 StopperStopper
-
32549492 Holder plateHolder plate
-
335241330 SpringSpring
-
34549493 BearingplateBearingplate
-
3523018 ShockShock
-
36572034500 CushionCushion
-
3820009 WasherWasher
-
3940031 Screw M6x25Screw M6x25
-
4033010 Nut elastic M6Nut elastic M6
-
4136070 RivetRivet
